Work Procedure

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

UNIT CHARACTERISTICS WRITING

CONSULT

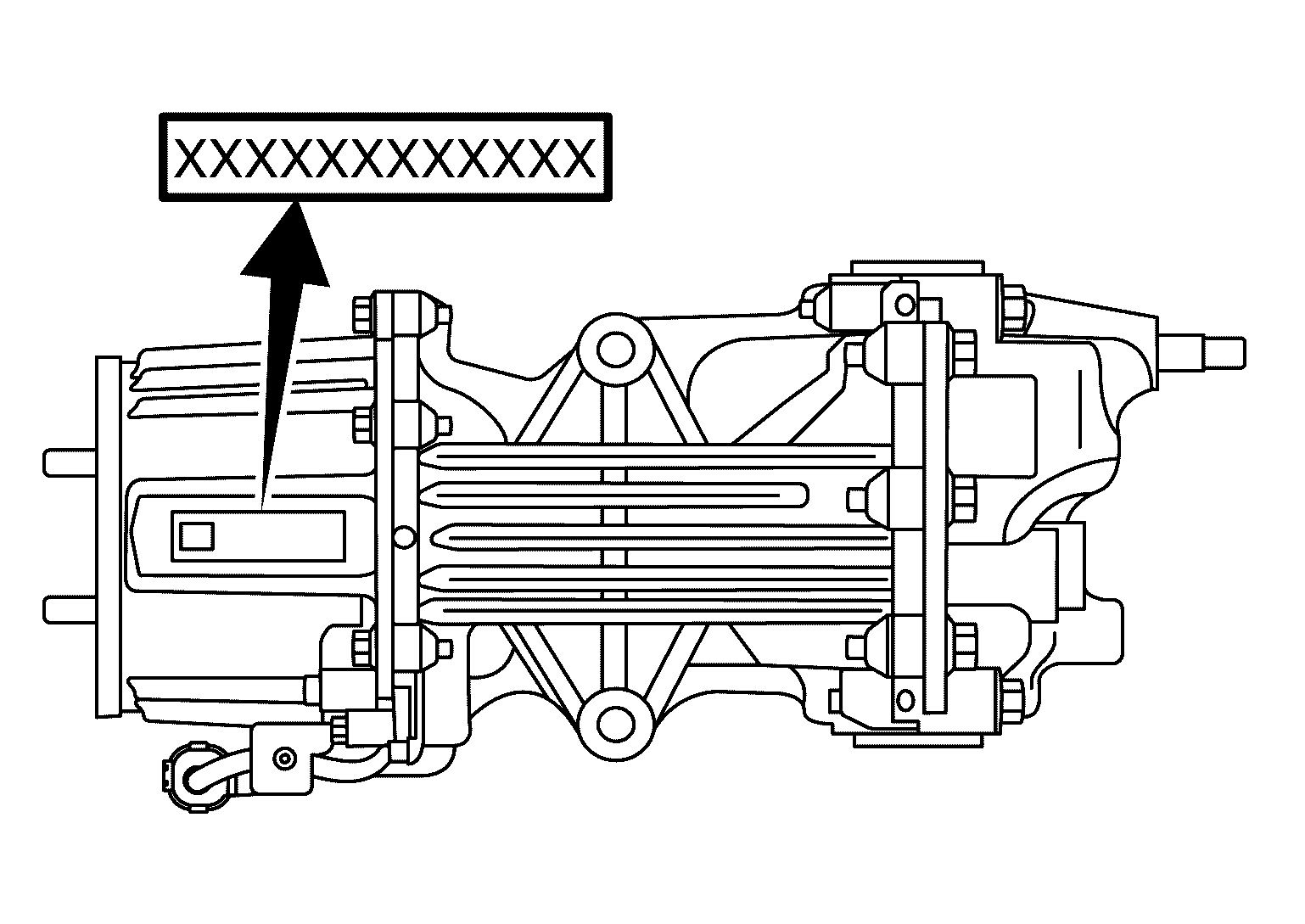

Confirm the unit characteristics of electric controlled coupling.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Unit characteristics is 12-digit alphanumeric.

Press push-button ignition switch OFF to ON.
Select "UNIT CHARACTERISTICS WRITE" in "Work support" for "ALL MODE AWD/4WD".
Input unit characteristics.
Select "Start".
Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.

Work End.
