System Diagram

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

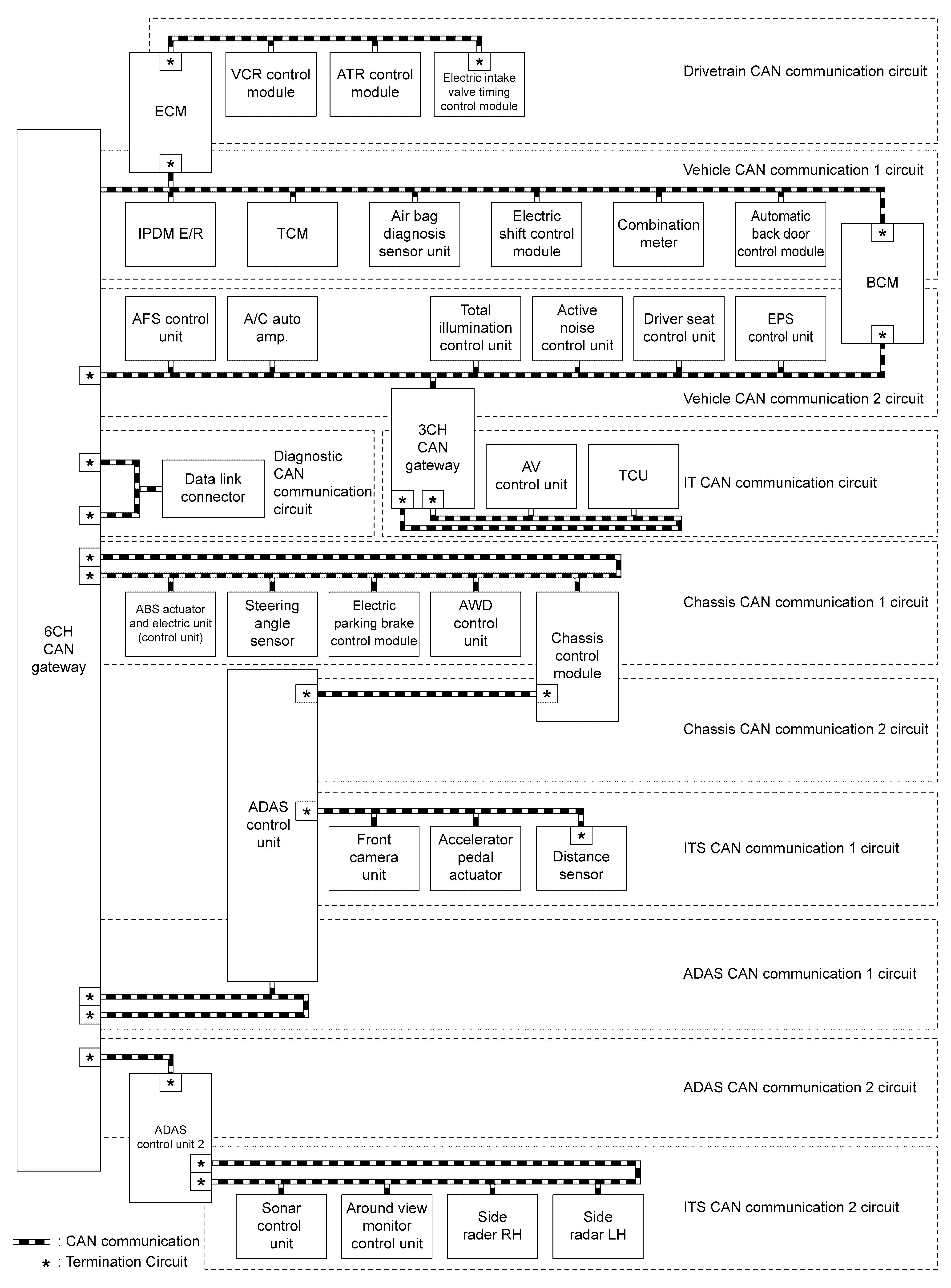

Without ProPILOT

GNSILL0274503-503Courtesy of NISSAN NORTH AMERICA, INC.

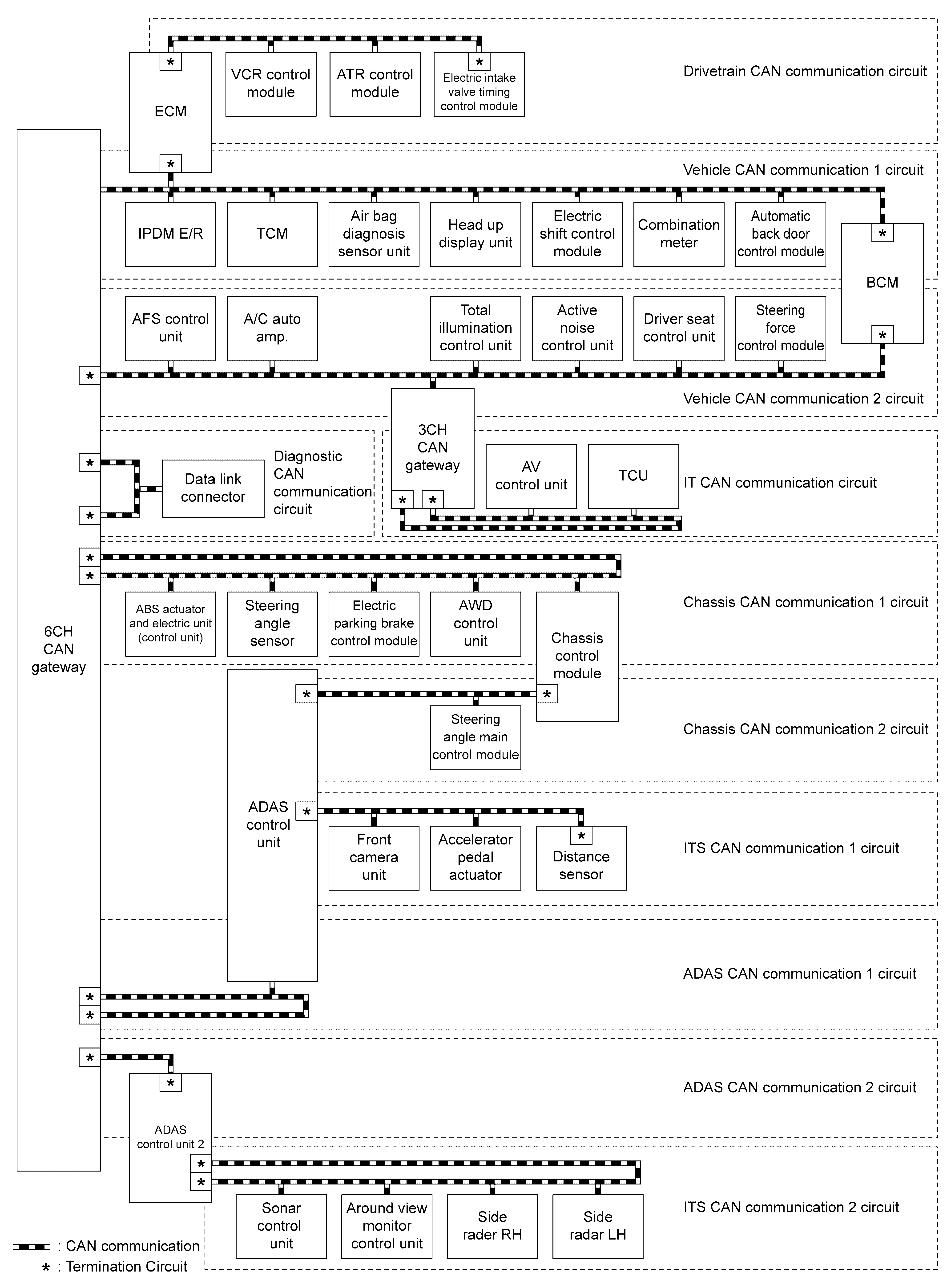

With ProPILOT

GNSILL0274504-504Courtesy of NISSAN NORTH AMERICA, INC.
