Air Flow
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

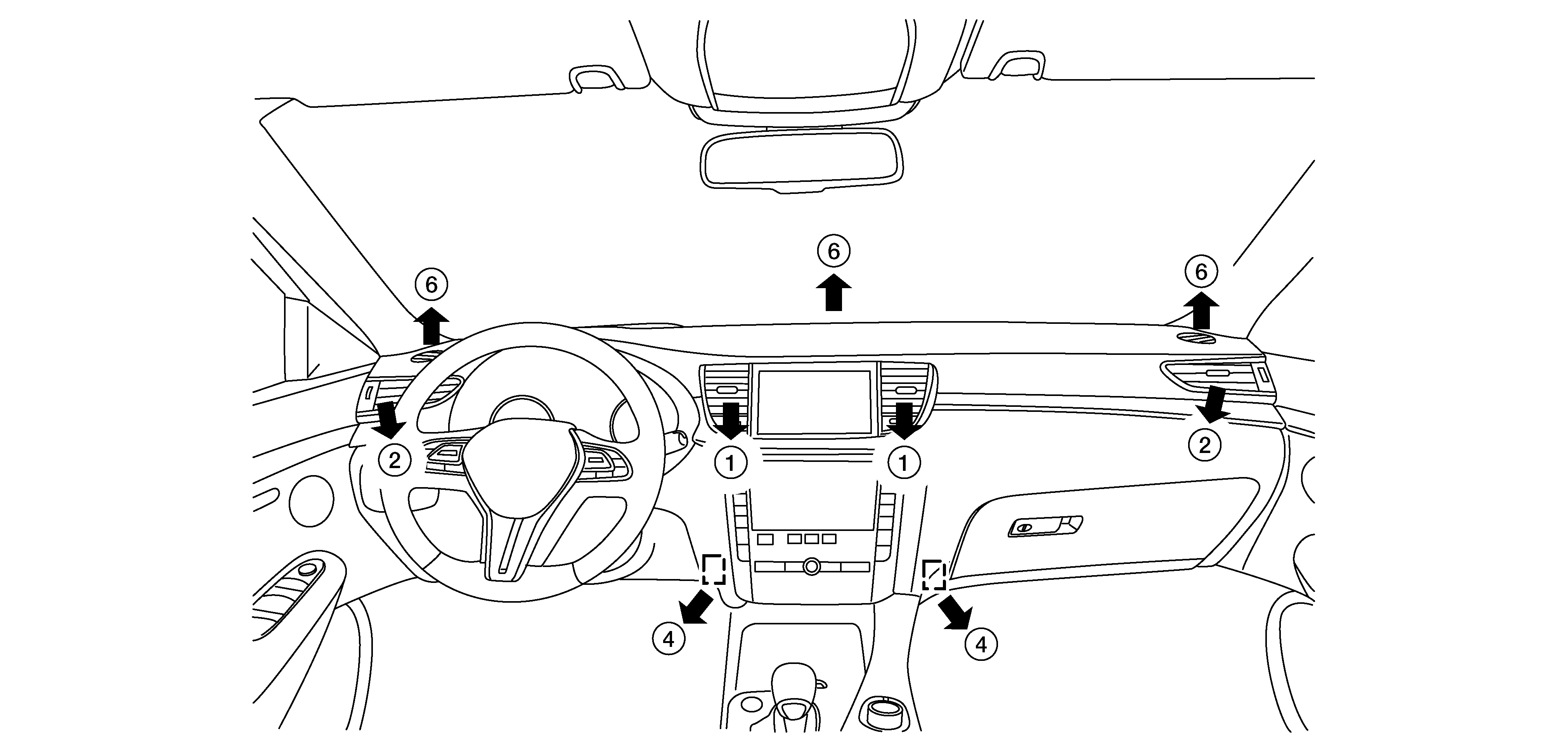

Front Air Control
|
Discharge air flow |
||||||||
|
Mode position |
Condition |
Air outlet / distribution |
||||||
|
VENT |
FOOT |
DEF (6) |
||||||
|
Front (1) |
Side (2) |
Front (4) |
||||||
|
|
|
Upper Vent: ON |
Temperature control switch |
18 deg.C (60 deg.F) |
x |
x |
-- |
-- |
|
Other than 18 deg.C (60 deg.F) *1 |
x |
x |
-- |
-- |
||||
|
|
-- |
x |
x |
x |
-- |
|||
|
|
-- |
-- |
-- |
x |
-- |
|||
|
|
-- |
-- |
-- |
x |
x |
|||
|
|
-- |
-- |
-- |
-- |
x |
|||
|
|
-- |
-- |
-- |
-- |
x |
|||
- *1: Air flow is also supplied to front foot until passenger room temperature stabilizes when temperature setting is other than 18 deg.C (60 deg.F). At that time, air flowing is the same as 18 deg.C (60 deg.F) setting.
- *2: During automatic defogging control.

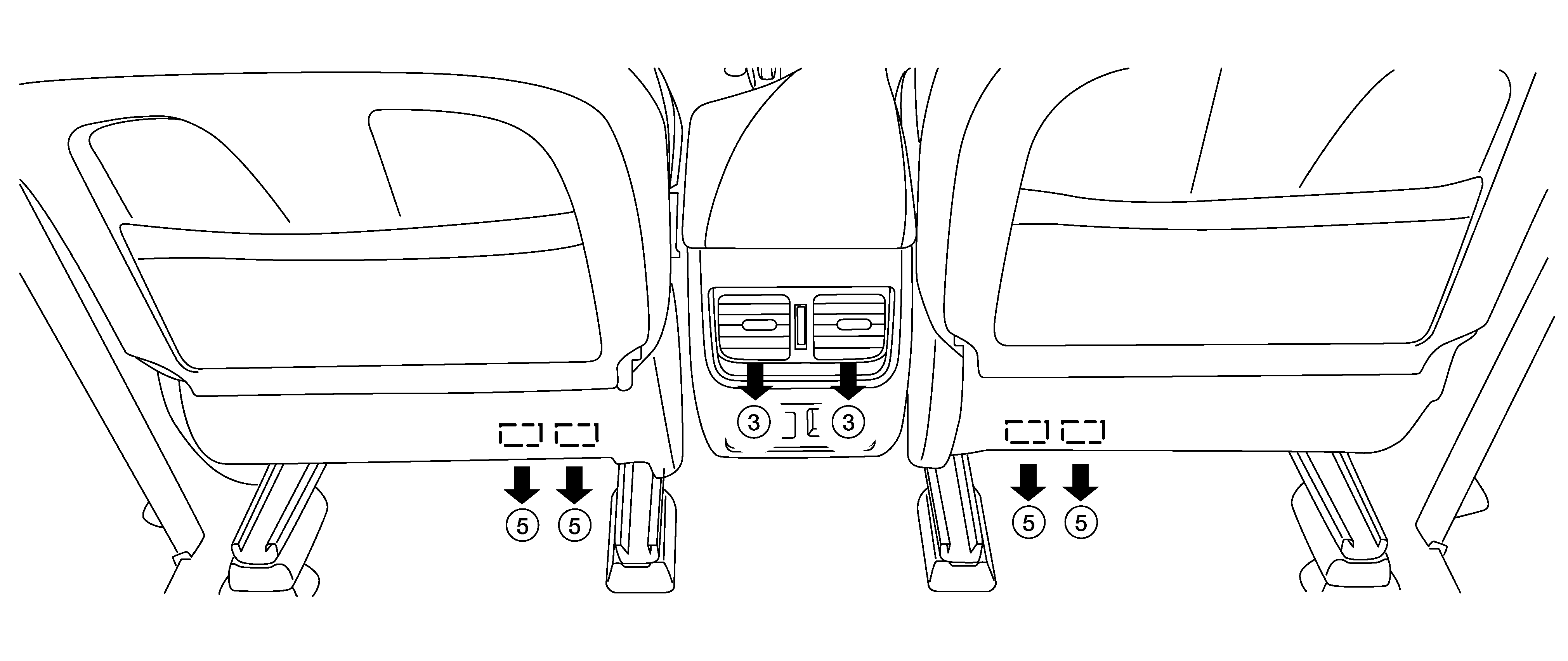

Rear Air Control
|
Discharge air flow |
||||||
|
Mode position |
Condition |
Air outlet / distribution |
||||
|
VENT |
FOOT |
|||||
|
Center (3) |
Rear (5) |
|||||
|
|
|
Upper Vent: ON |
Temperature control switch |
18 deg.C (60 deg.F) |
x |
-- |
|
Other than 18 deg.C (60 deg.F) *1 |
x |
-- |
||||
|
|
-- |
x |
x |
|||
|
|
-- |
-- |
x |
|||
- *1: Air flow is also supplied to front foot until passenger room temperature stabilizes when temperature setting is other than 18 deg.C (60 deg.F). At that time, air flowing is the same as 18 deg.C (60 deg.F) setting.
