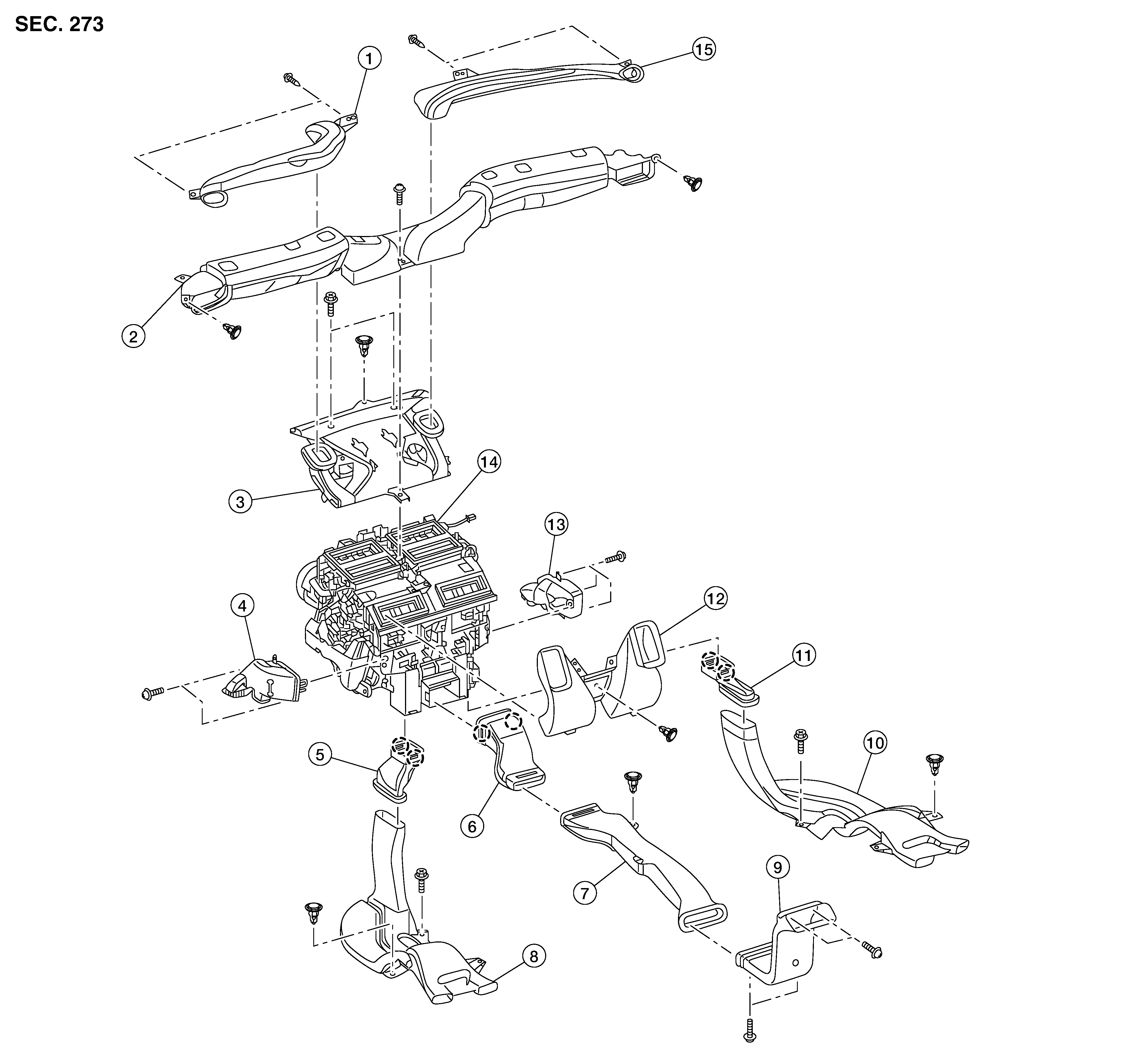

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Side defroster duct (LH) |
2. |
Side ventilator duct |
3. |
Center defroster duct |
|
4. |
Front foot duct (LH) |
5. |
Rear floor duct connecting (LH) |
6. |
Rear center ventilator adaptor duct |
|
7. |
Rear center ventilator connecting duct |
8. |
Rear floor duct (RH) |
9. |
Rear center ventilator duct |
|
10. |
Rear floor duct (RH) |
11. |
Rear floor duct connecting (RH) |
12. |
Center ventilator duct |
|
13. |
Front foot duct (RH) |
14. |
Heating and cooling unit assembly |
15. |
Side defroster duct (RH) |
|
|
Pawl |
