Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

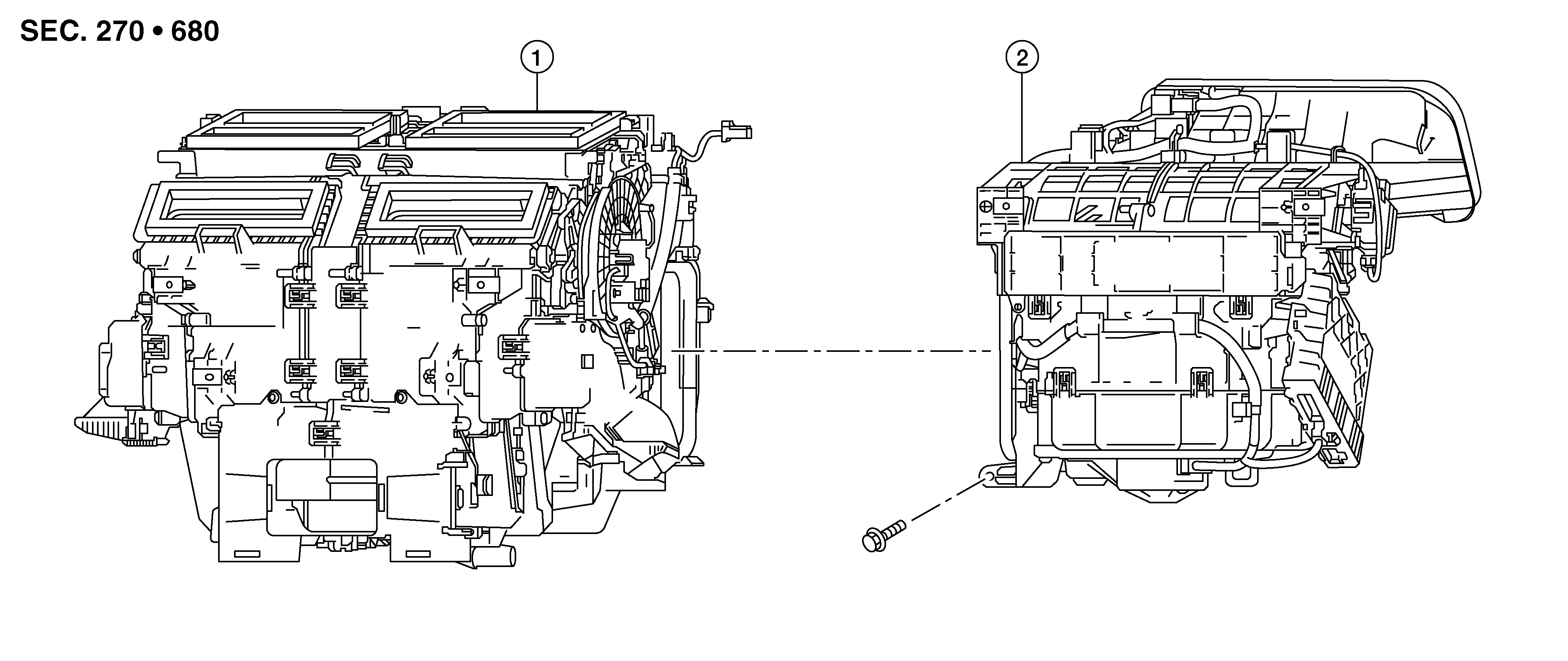

GNSALIIA0056Z-056Courtesy of NISSAN NORTH AMERICA, INC.

1. Heating and cooling unit assembly

2. Blower unit
