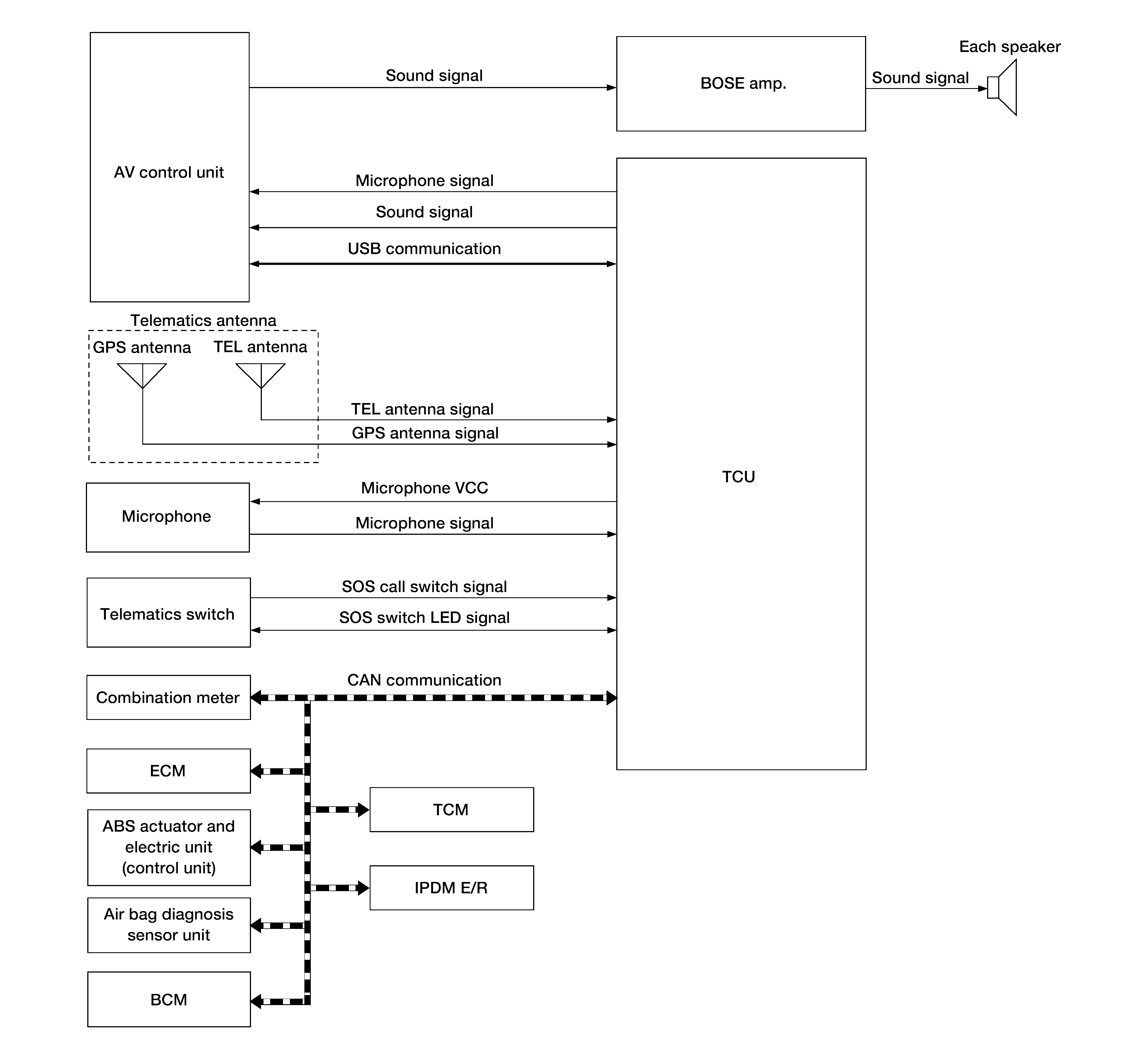

System Diagram
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
TCU Input Signal (CAN Communication)
|
Transmit unit |
Signal name |
|
ECM |
Engine status signal |
|
Malfunction indicator lamp signal |
|
|
Engine oil pressure warning lamp signal |
|
|
ABS actuator and electric unit (control unit) |
ABS warning lamp signal |
|
VDC warning lamp signal |
|
|
Combination meter |
Brake warning lamp signal |
|
Air bag diagnosis sensor unit |
Car crash information signal |
|
BCM |
Auto ACC signal |
|
Door lock status signal |
|
|
Sleep wake up signal |
