Exploded View

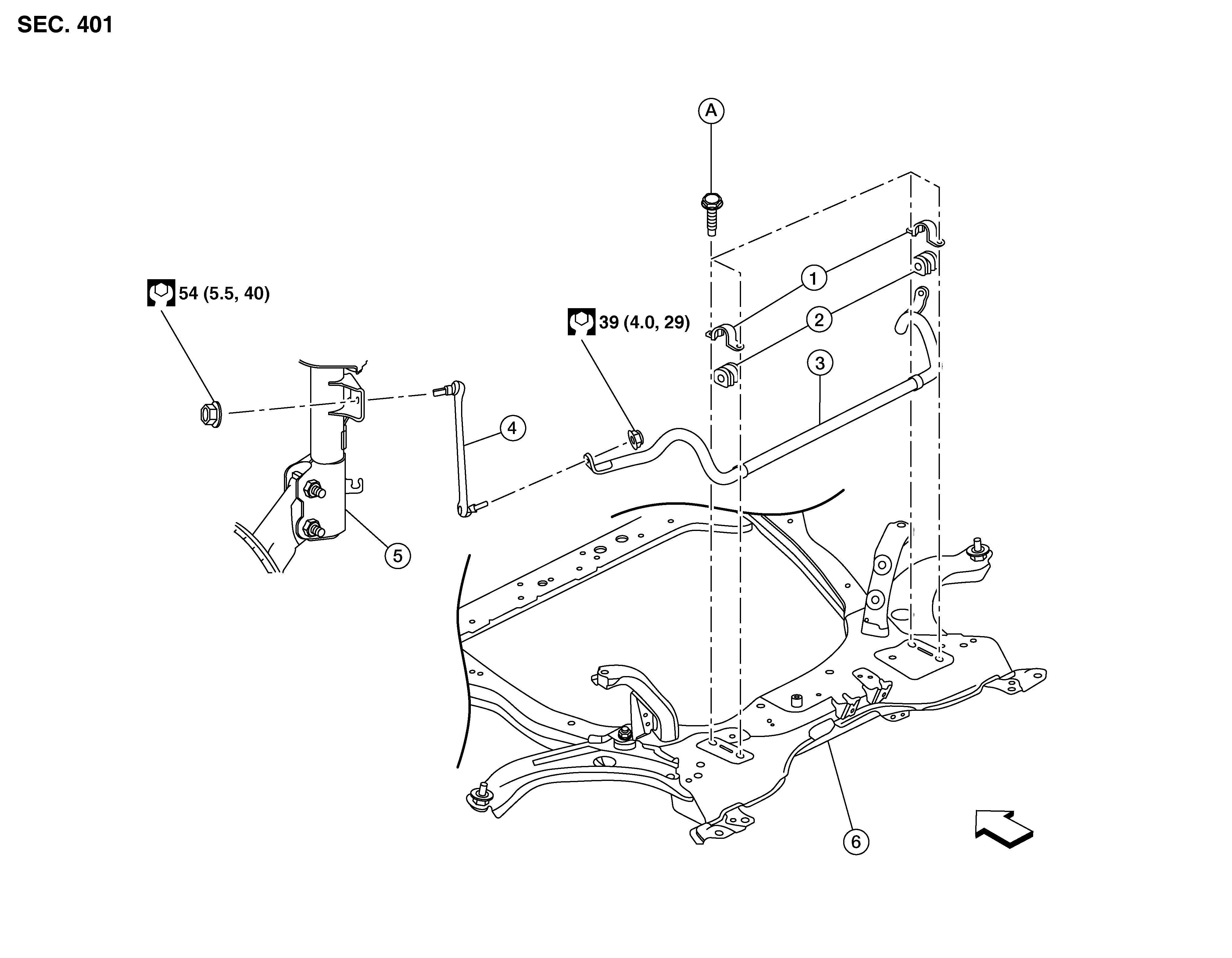

Fig 1: Front Stabilizer Components With Torque Specification
GNSAWEIA0084Z-084Courtesy of NISSAN NORTH AMERICA, INC.

1.

Stabilizer bar clamp

2.

Stabilizer bar bushing

3.

Stabilizer bar

4.

Stabilizer bar connecting rod

5.

Strut

6.

Front suspension member

A.

Refer to Removal and Installation .

SYMBOL

Front
