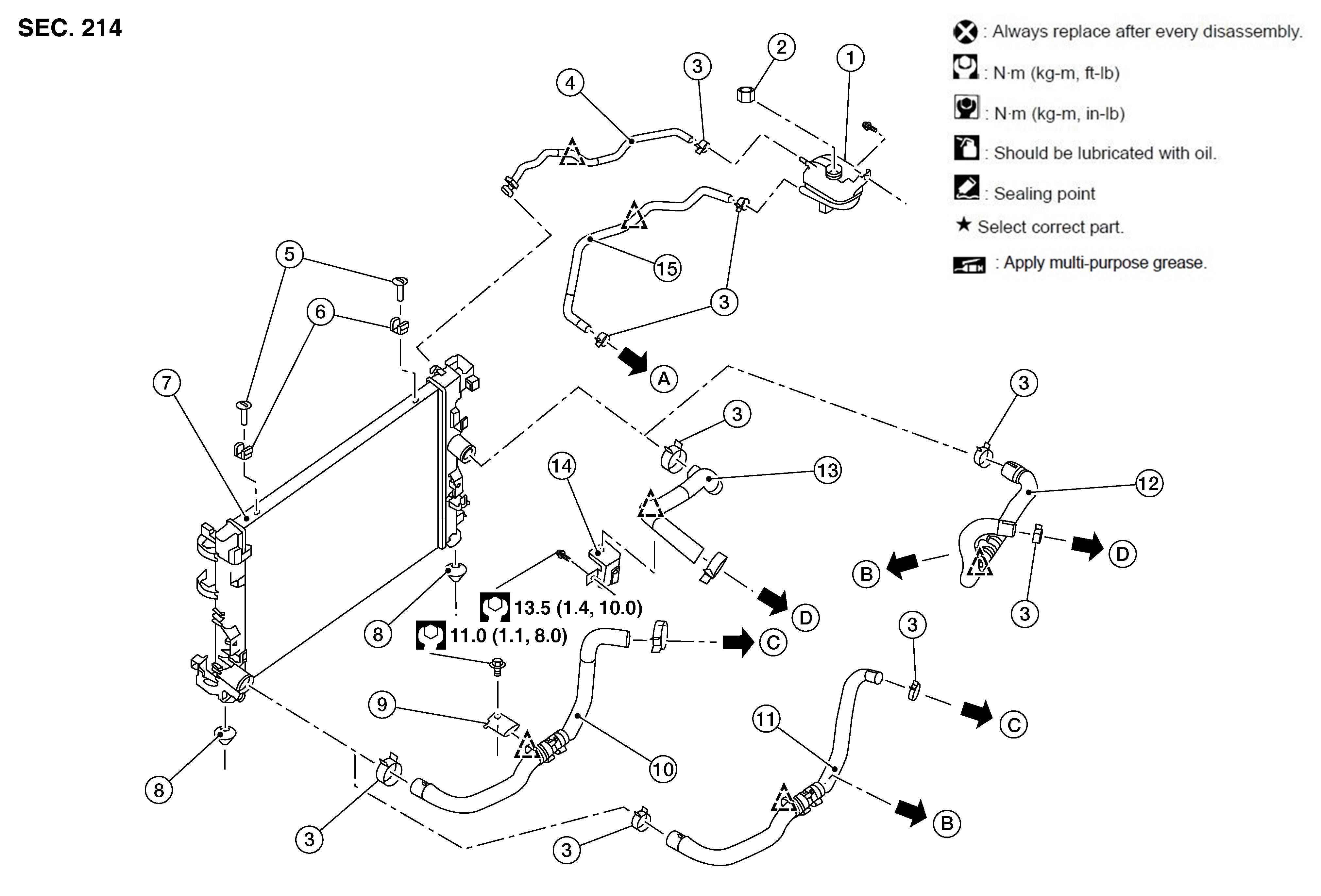

Exploded View
|
1. |
Reservoir tank |
2. |
Reservoir tank cap |
3. |
Clamp |
|
4. |
Reservoir hose (to radiator) |
5. |
Pin locator |
6. |
Mounting rubber (upper) |
|
7. |
Radiator |
8. |
Mounting rubber (lower) |
9. |
Bracket |
|
10. |
Radiator hose (lower) (M/T models only) |
11. |
Radiator hose (lower) (CVT models only) |
12. |
Radiator hose (upper) (CVT models only) |
|
13. |
Radiator hose (upper) (M/T models only) |
14. |
Bracket |
15. |
Reservoir hose (to water inlet) |
|
A. |
To water pump housing. Refer to Exploded View . |
B. |
To oil cooler (CVT models only). Refer to Exploded View . |
C. |
To water inlet. Refer to Exploded View . |
|
D. |
To water outlet. Refer to Exploded View . |
|
Clip |
