Removal and Installation: Removal

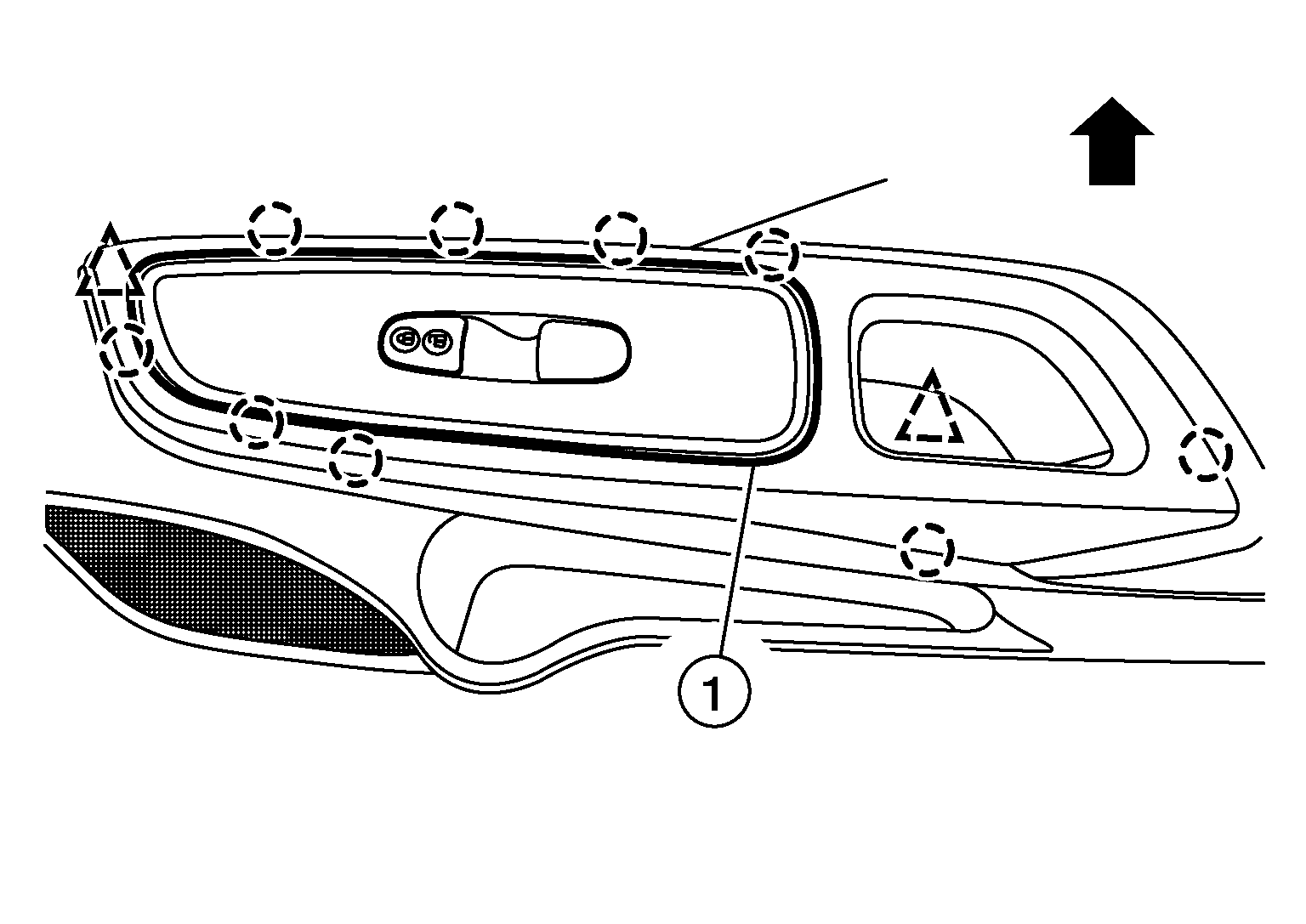

  1. Release pawls using a suitable tool and remove power window and door lock/unlock switch RH (1) in direction shown in illustration (SYMBOL ).
    GNSALKIA0831Z-831Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

    SYMBOL

    : Clip

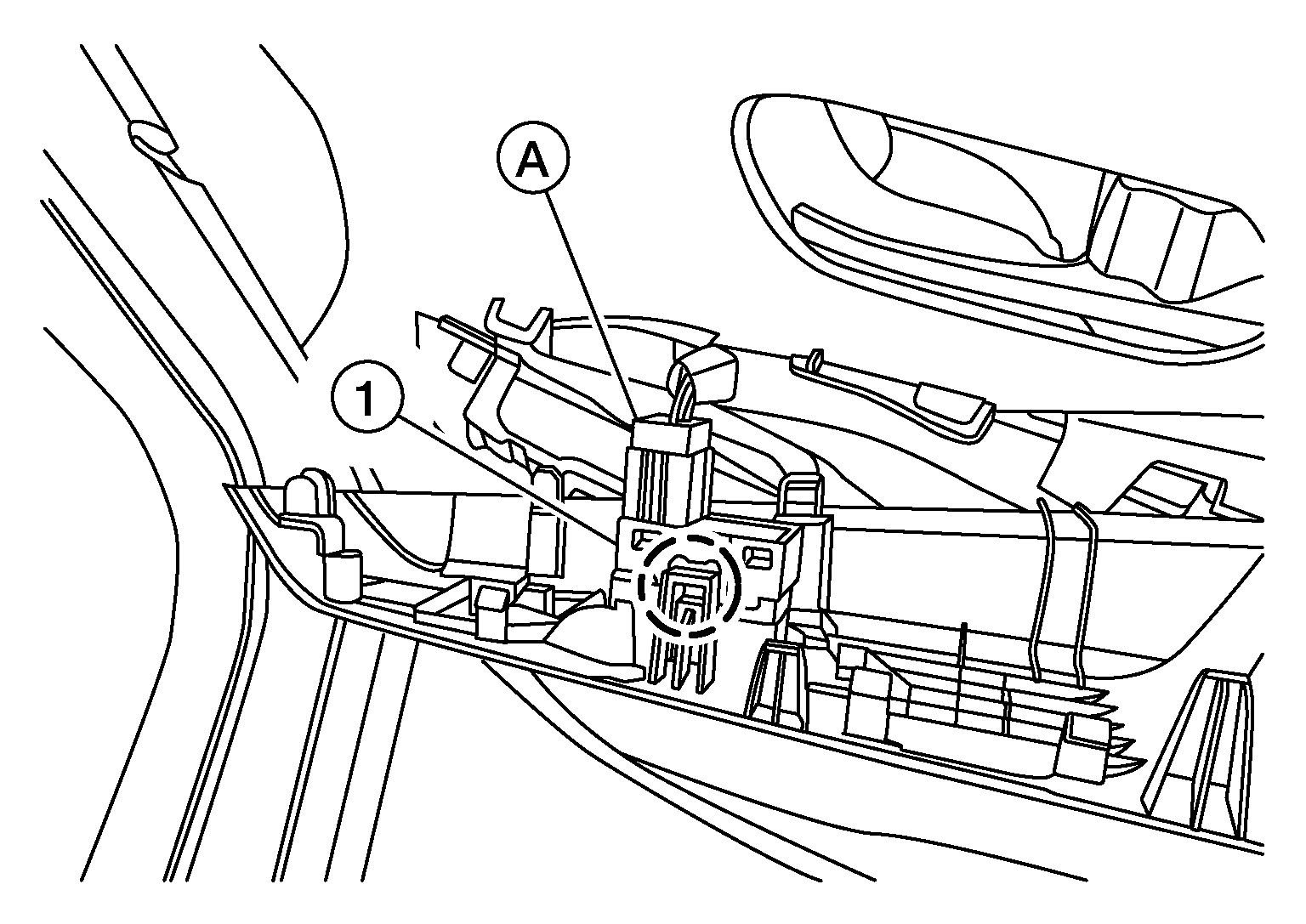

  2. Disconnect the harness connector (A) from the power window and door lock/unlock switch RH (1) and remove power window and door lock/unlock switch RH and switch finisher.
    GNSALKIA4433Z-433Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

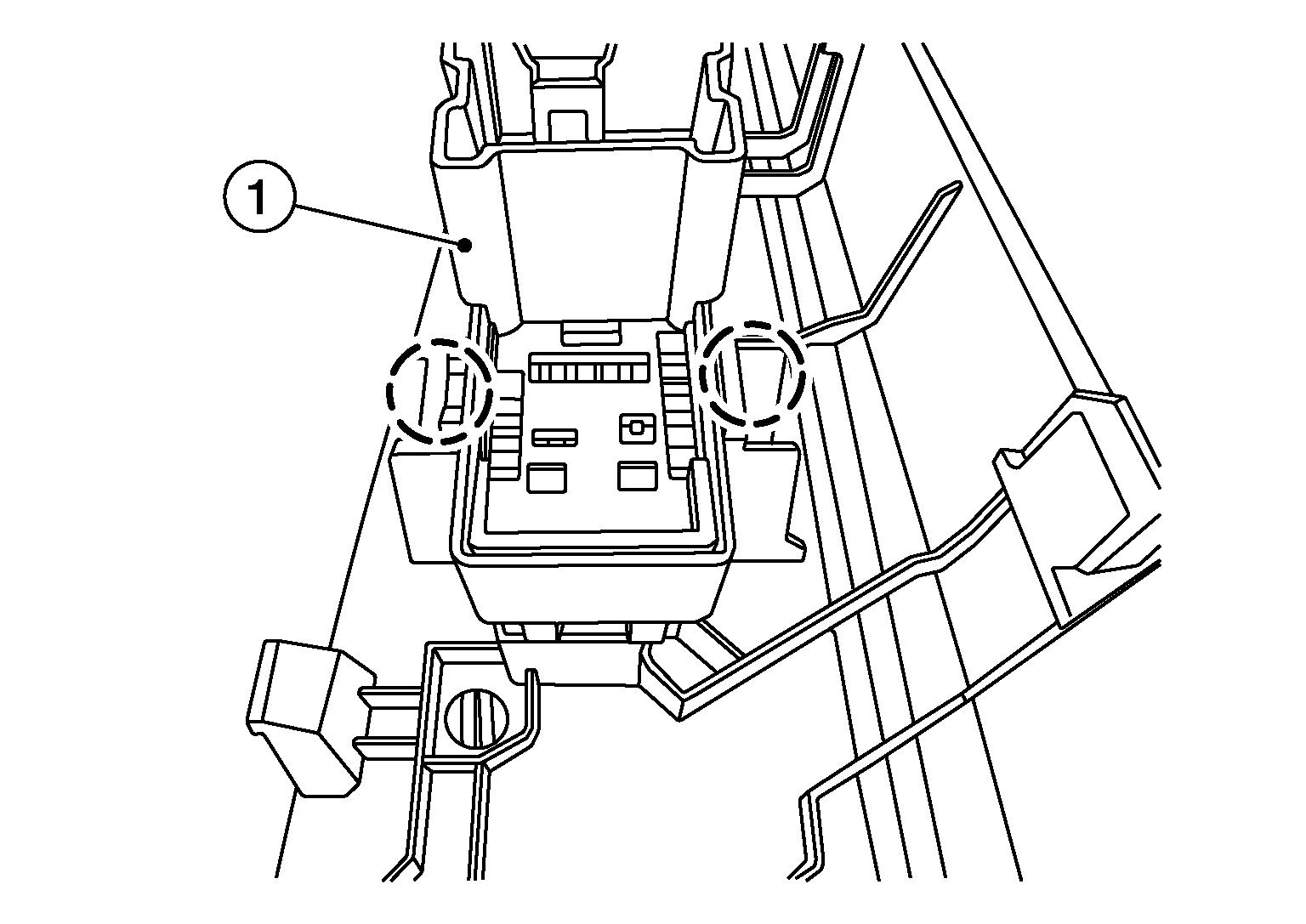

  3. Release pawls, then separate power window and door lock/unlock switch RH (1) from switch finisher.
    GNSALKIA4480Z-480Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
