Removal and Installation: Removal

  1. Remove the glove box. Refer to Removal and Installation .
  2. Remove knee air bag module RH. Refer to Removal and Installation .

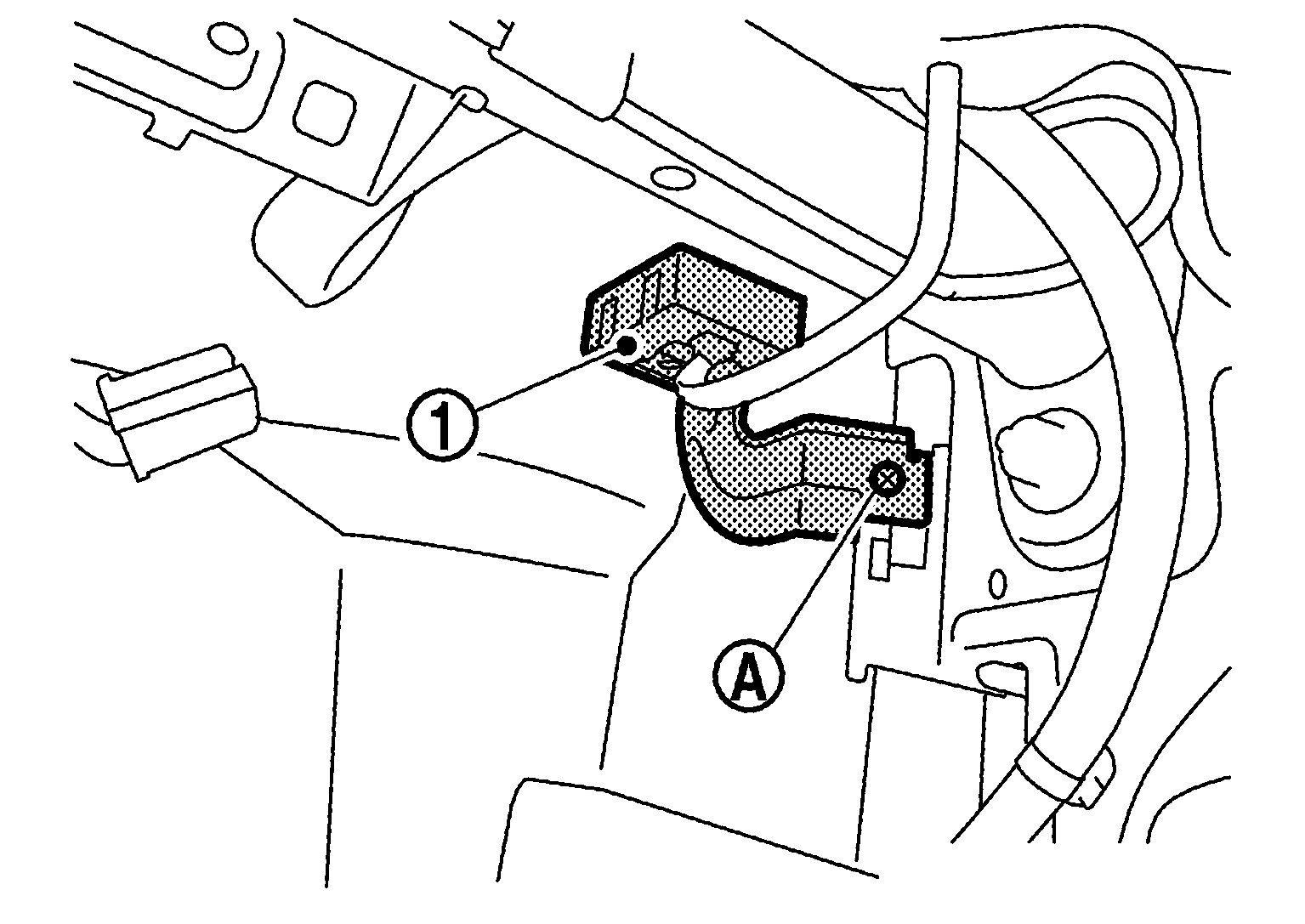

  3. Remove the remote keyless entry receiver bolt (A).
    GNSJMKIA7947Z-947Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from remote keyless entry receiver and remove remote keyless entry receiver (1).
