Stop Lamp Switch
>>
Visual Operation
Visual Operation

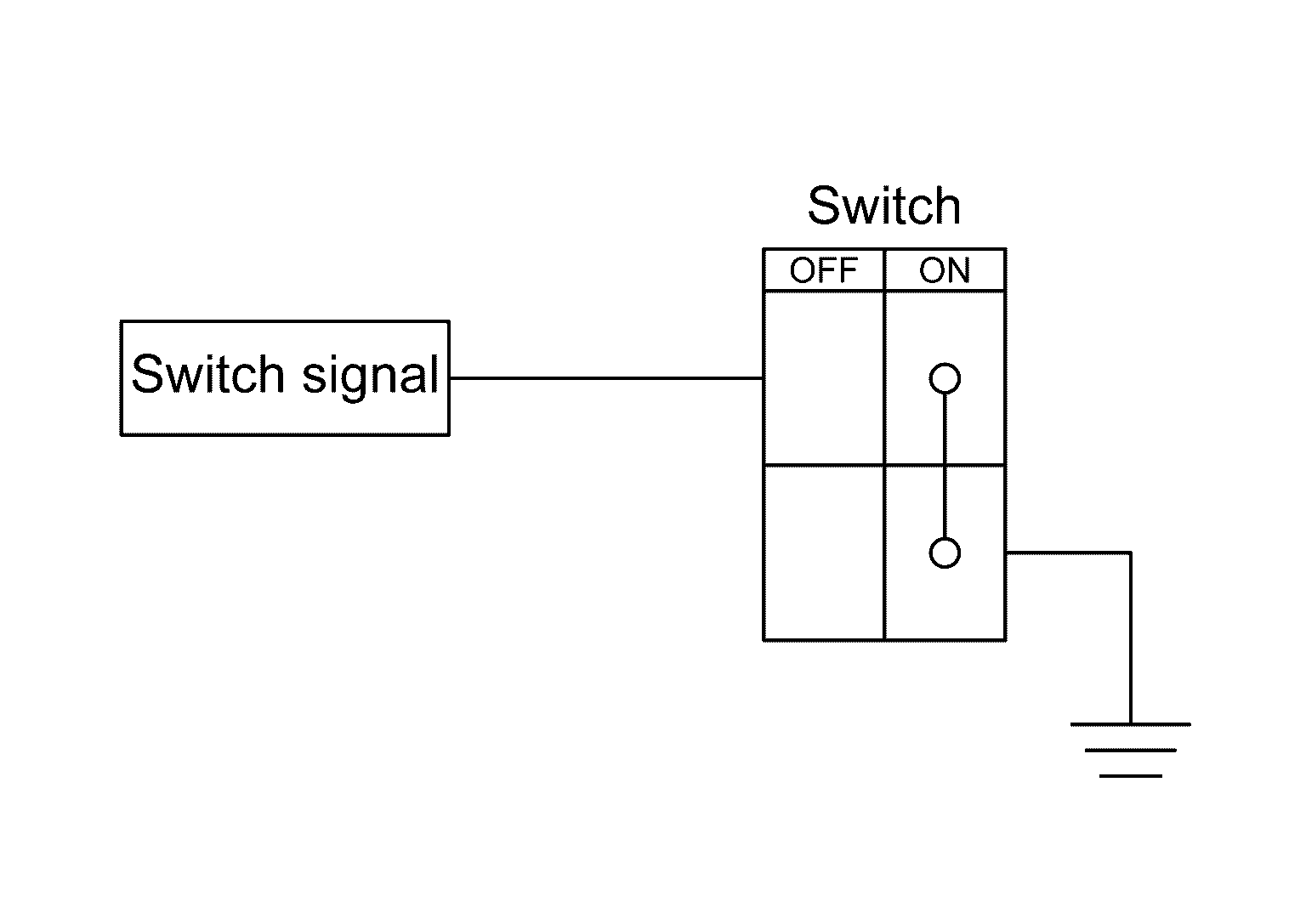

The switch is turned ON when brake pedal is pressed.
Ground is supplied as the switch signal to the control unit when the switch is turned ON.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
