Exploded View
Exploded View

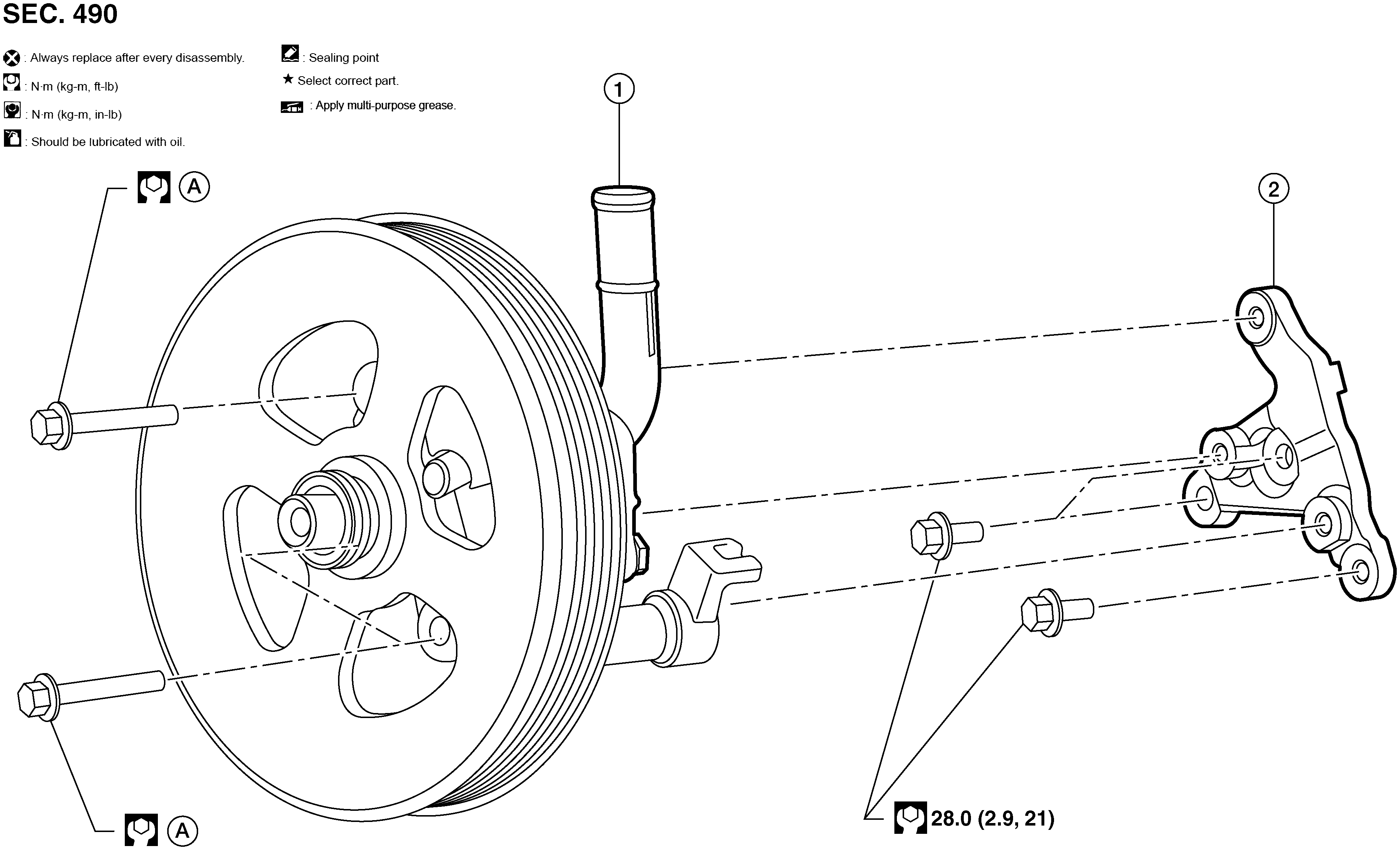

Fig 1: Power Steering Oil Pump Components With Torque Specification - Cummins 5.0 Engine
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Power steering oil pump
2.
Bracket
A.
Refer to the appropriate service information
Fig 2: Power Steering Oil Pump Components With Torque Specification (VK56VD Engine)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Bracket
2.
Power steering oil pump
Front
