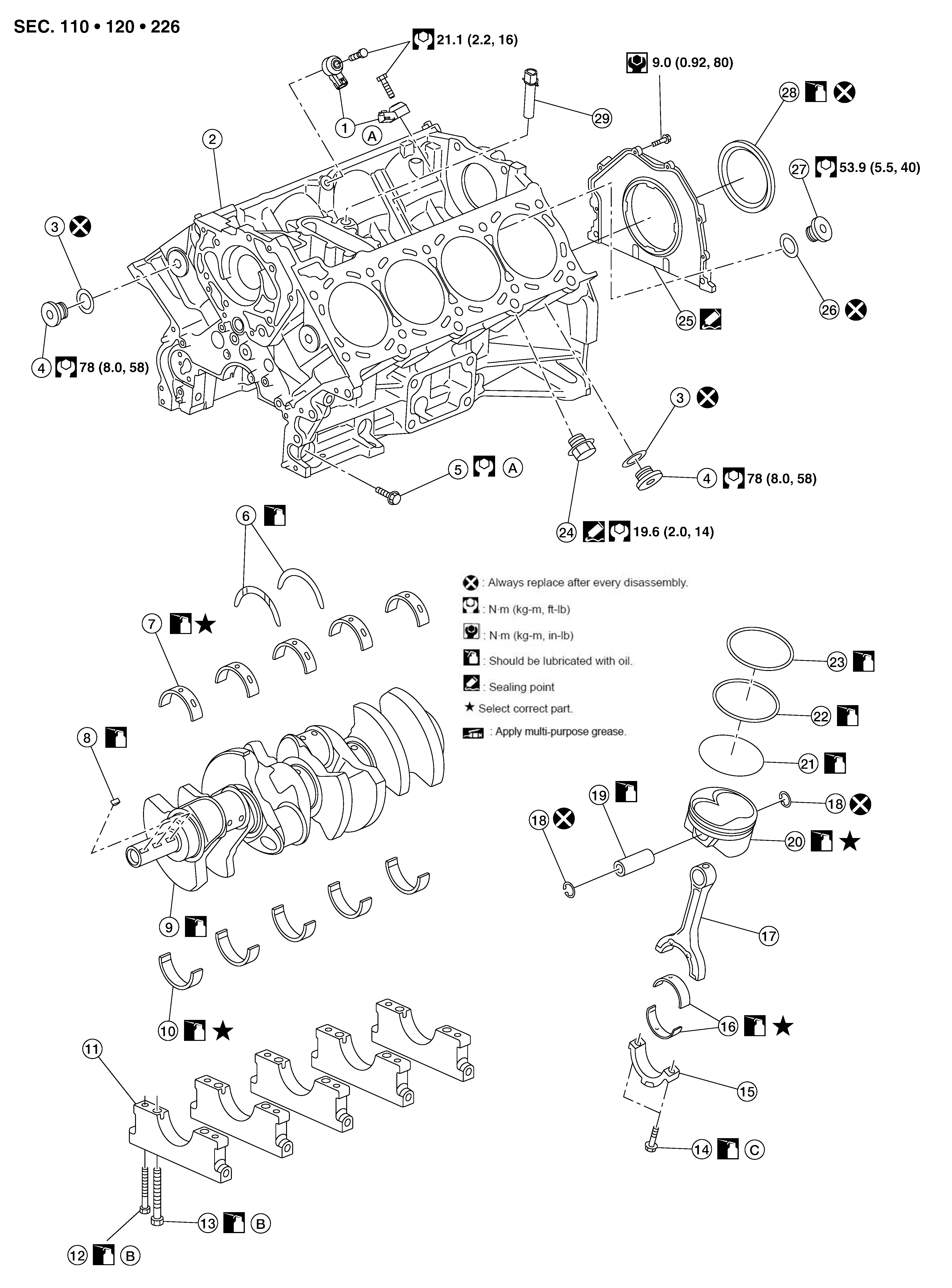

Exploded View
|
1. |
Knock sensor |
2. |
Cylinder block |
3. |
Washer |
|
4. |
Drain plug |
5. |
Main bearing side bolt |
6. |
Thrust bearing |
|
7. |
Main bearing (upper) |
8. |
Crankshaft key |
9. |
Crankshaft |
|
10. |
Main bearing (lower) |
11. |
Main bearing cap |
12. |
Main bearing cap sub bolt |
|
13. |
Main bearing cap bolt |
14. |
Connecting rod cap bolt |
15. |
Connecting rod cap |
|
16. |
Connecting rod bearing |
17. |
Connecting rod |
18. |
Snap ring |
|
19. |
Piston pin |
20. |
Piston |
21. |
Oil ring |
|
22. |
Second ring |
23. |
Top ring |
24. |
Water drain plug |
|
25. |
Rear oil seal retainer |
26. |
Washer |
27. |
Drain plug |
|
28. |
Rear oil seal |
29. |
Cylinder block heater (if equipped) |
A. |
Refer to ASSEMBLY . |
|
B. |
Refer to ASSEMBLY . |
C. |
Refer to ASSEMBLY . |
