Component Location

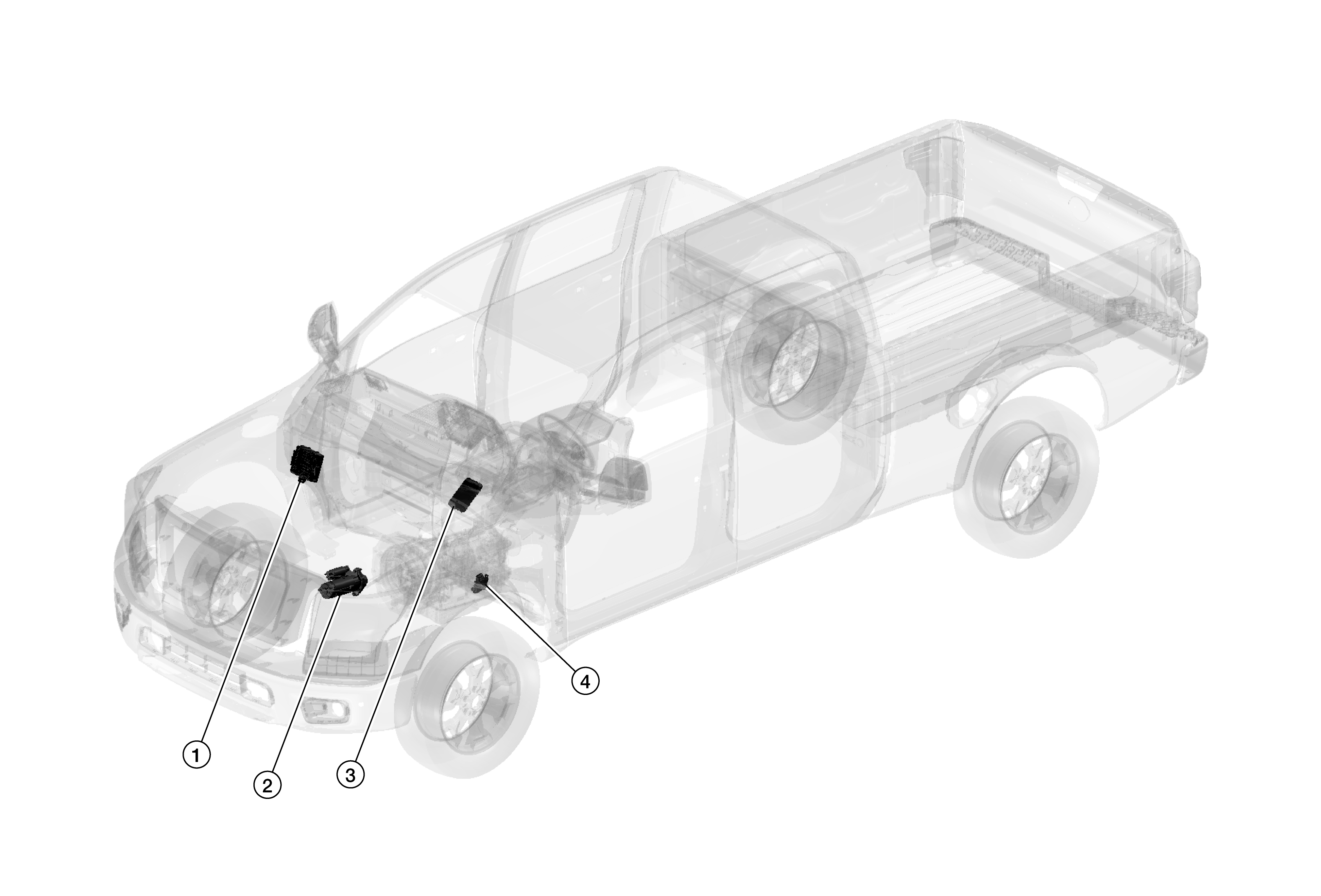

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Description
1.	IPDM E/R	CPU inside IPDM E/R operates the starter control relay when the push-button ignition switch is in the start position. Refer to Component Location for detailed component location.
2.	Starter motor	Refer to Starter Motor .
3.	BCM	BCM controls the starter relay inside IPDM E/R. Refer to Component Location for detailed component location.
4.	Transmission range switch	Transmission range switch supplies power to the starter relay and starter control relay inside IPDM E/R when the A/T shift selector is shifted to the P or N position. Refer to A/T SHIFT SELECTOR Component Location for detailed component location.

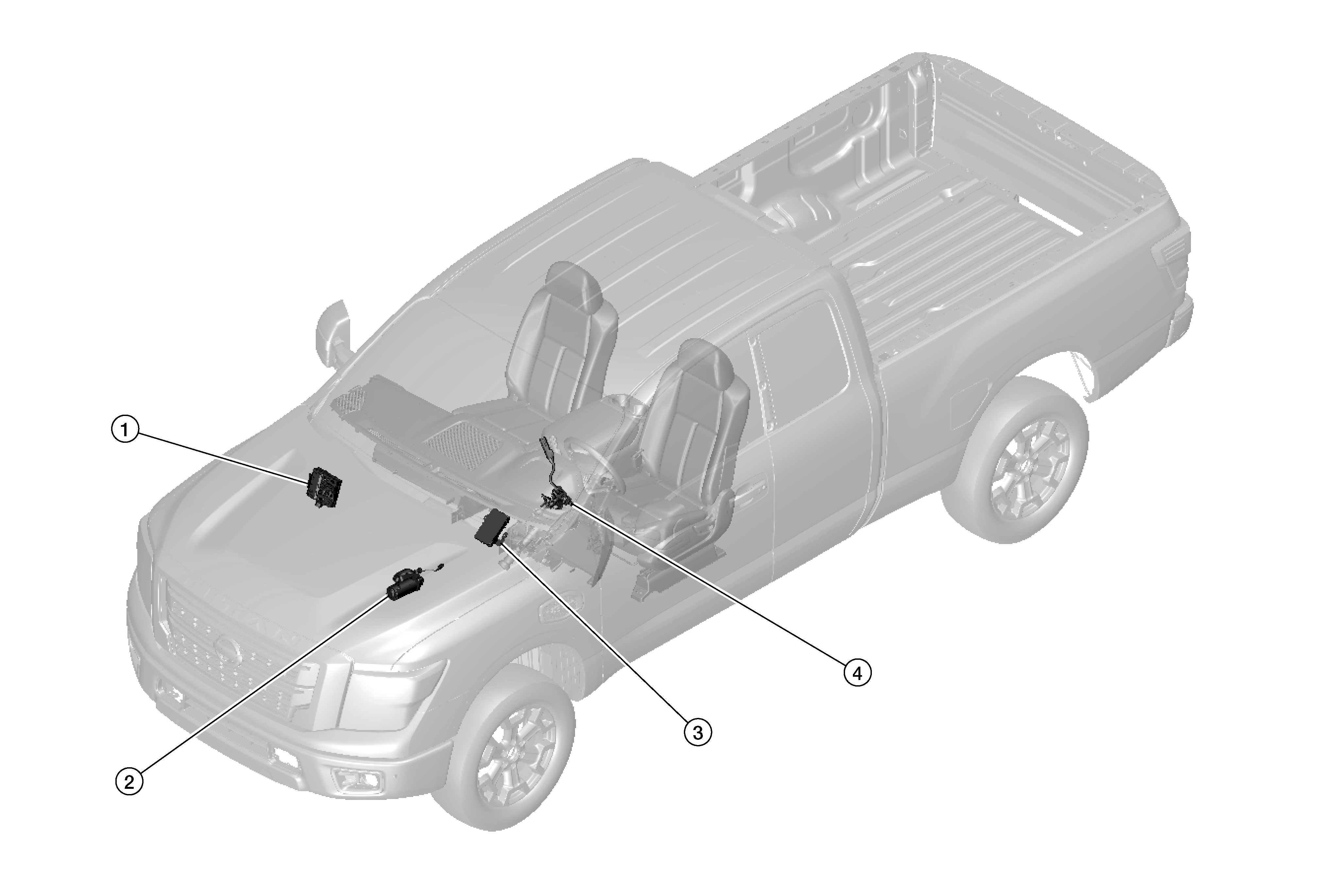

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Description
1.	IPDM E/R	CPU inside IPDM E/R operates the starter control relay when the push-button ignition switch is in the start position. Refer to Component Location for detailed component location.
2.	Starter motor	Refer to Starter Motor .
3.	BCM	BCM controls the starter relay inside IPDM E/R. Refer to Component Location for detailed component location.
4.	A/T shift selector	A/T shift selector supplies power to the starter relay and starter control relay inside IPDM E/R when the A/T shift selector is shifted to the P or N position. Refer to A/T SHIFT SELECTOR Component Location for detailed component location.
