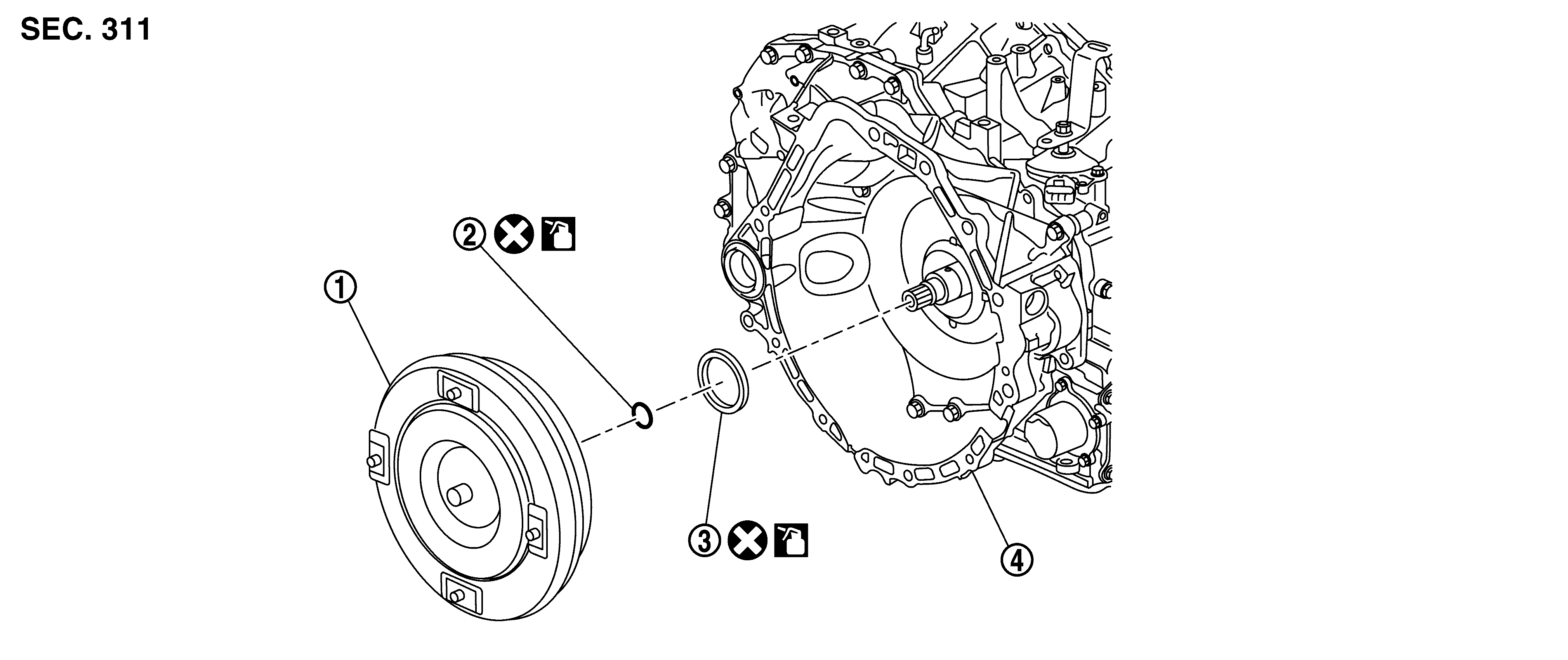

Exploded View

GNSJSDIA4173Z-173Courtesy of NISSAN NORTH AMERICA, INC.

1.

Torque converter

2.

O-ring

3.

Converter housing oil seal

4.

Transaxle assembly



SYMBOL

: Always replace after every disassembly.

SYMBOL

: Apply CVT fluid
