Removal and Installation: Removal

  1. Turn the ignition switch OFF.
  2. Remove front wheel and tire (LH). Refer to Removal and Installation .
  3. Remove the fender protector (LH). Refer to Removal and Installation .
  4. Disconnect the harness connector from the output speed sensor.
  5. Remove the output speed sensor. Refer to Exploded View .

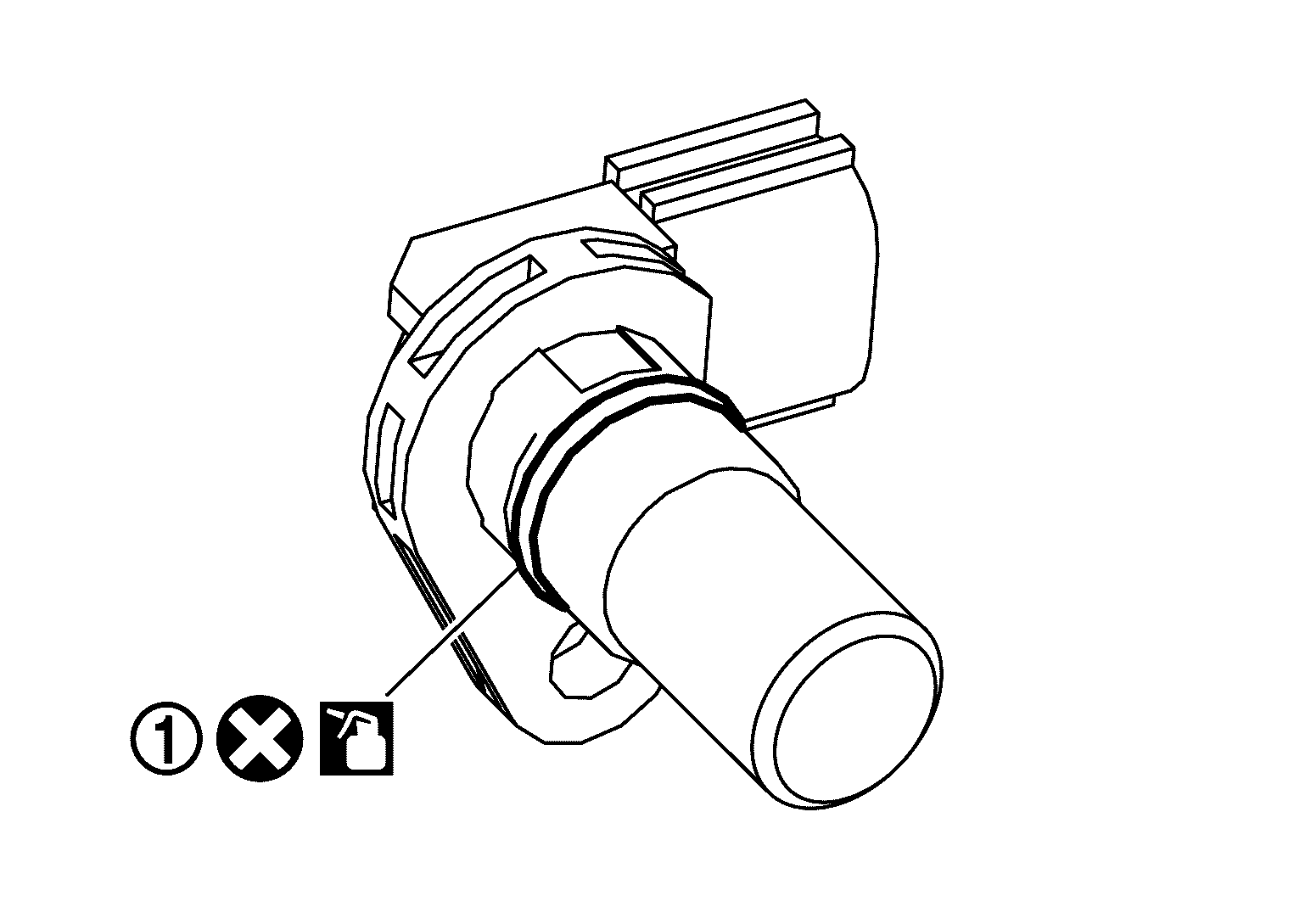

  6. Remove the O-ring (1) from the output speed sensor.
    GNSJSDIA5199Z-199Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse O-ring.
