Removal and Installation: Removal

  1. Disconnect battery negative terminal. Refer to Battery Disconnect .
  2. Remove the oil pan. Refer to Removal and Installation .

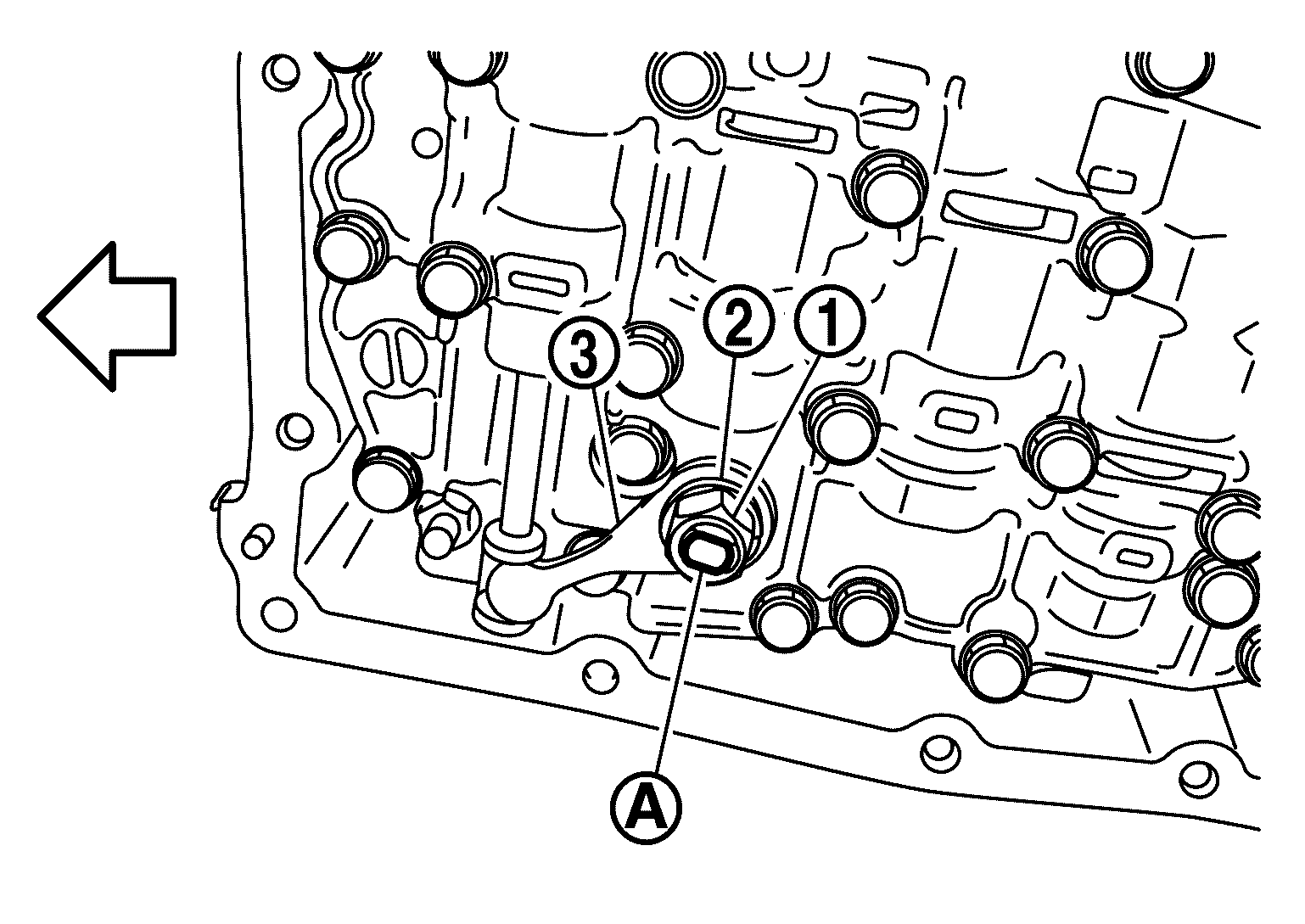

  3. Remove the lock nut (1), spring washer (2), and manual plate (3) from manual shaft (A).
    GNSJSDIA3685Z-685Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  4. Remove the oil strainer assembly bolts (A) and remove the oil strainer assembly.
    GNSALDIA0911Z-911Courtesy of NISSAN NORTH AMERICA, INC.

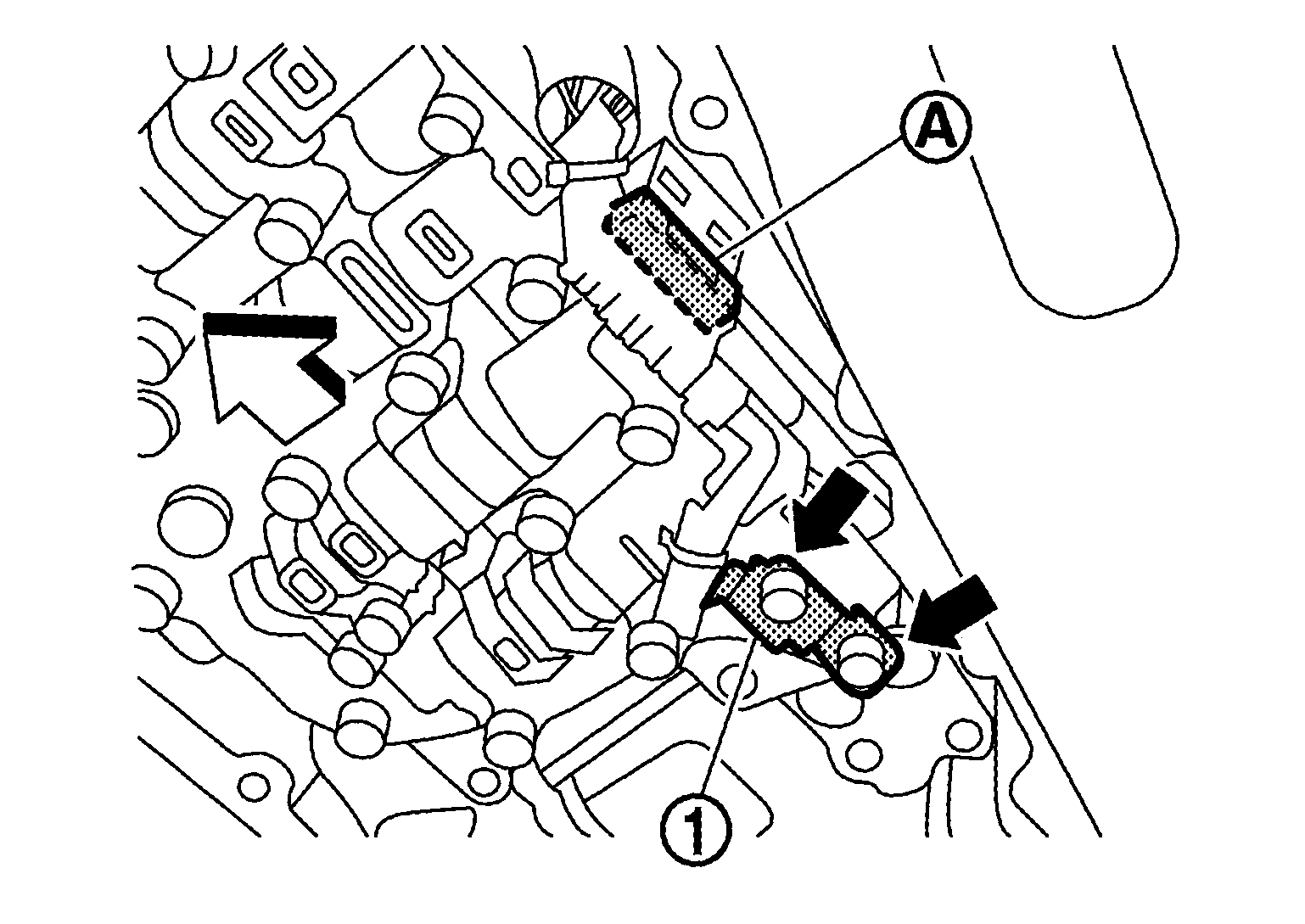

  5. Remove CVT fluid temperature sensor bracket (1).
    GNSJSDIA3686Z-686Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Bolt

    SYMBOL

    : Front
  6. Disconnect the harness connector (A) from the control valve.

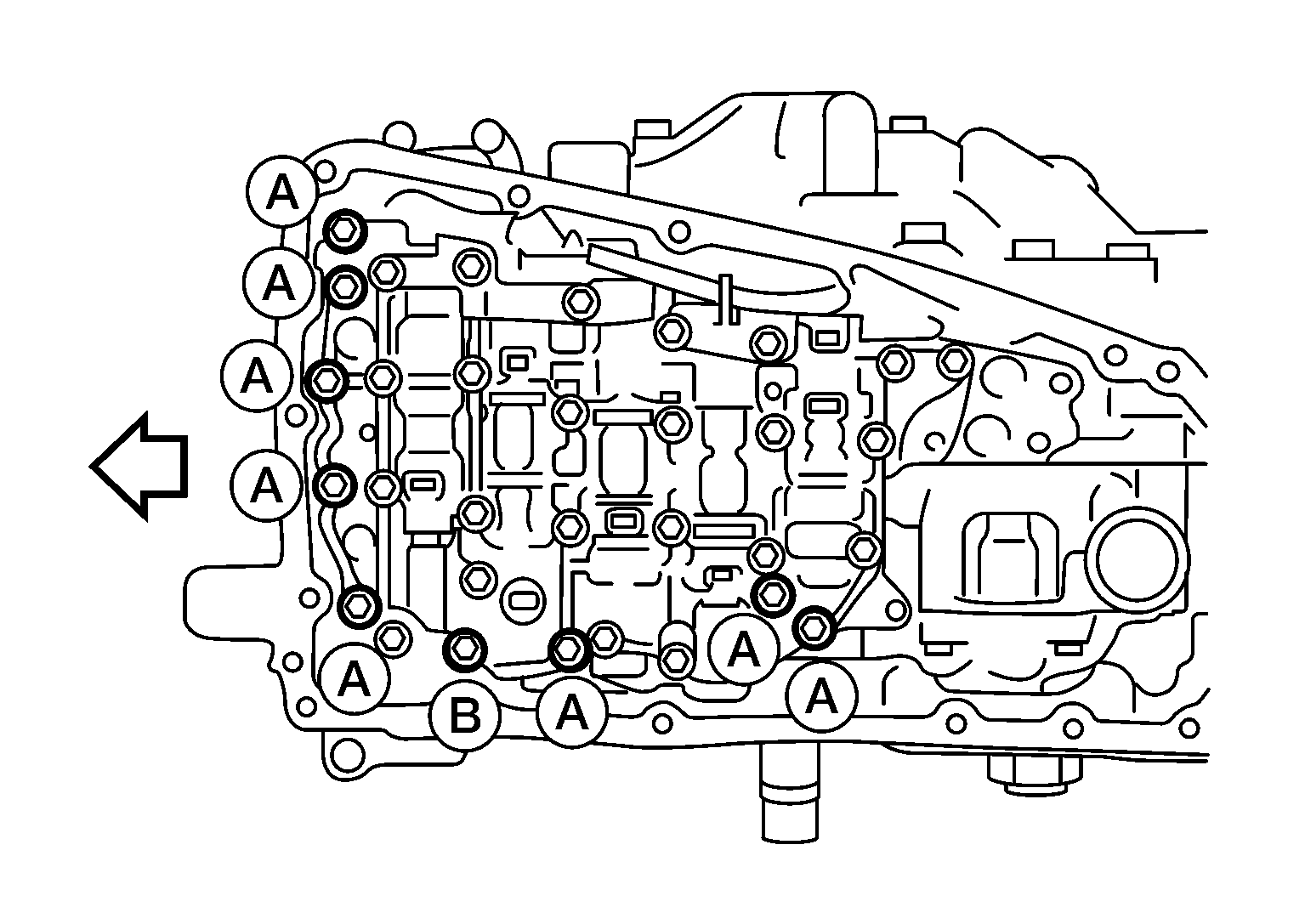

  7. Remove the control valve bolts (A) and (B), and then remove the control valve from the transaxle case.
    GNSAWDIA1059Z-059Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    CAUTION: Do not drop the control valve, ratio control valve and manual shaft.
    NOTE: Control valve bolt heads may be marked with a number "7". Bolts marked as "7" are the bolts that need to be removed in order to remove the control valve.
  8. Remove the lip seal (1) from the transaxle case.
    GNSJPDIA0661Z-661Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse lip seal.
