Removal and Installation: Removal

  1. Apply the parking brake.
    CAUTION: Make sure the vehicle cannot move with the parking brake applied.
  2. Remove the exhaust front tube. Refer to Exploded View .

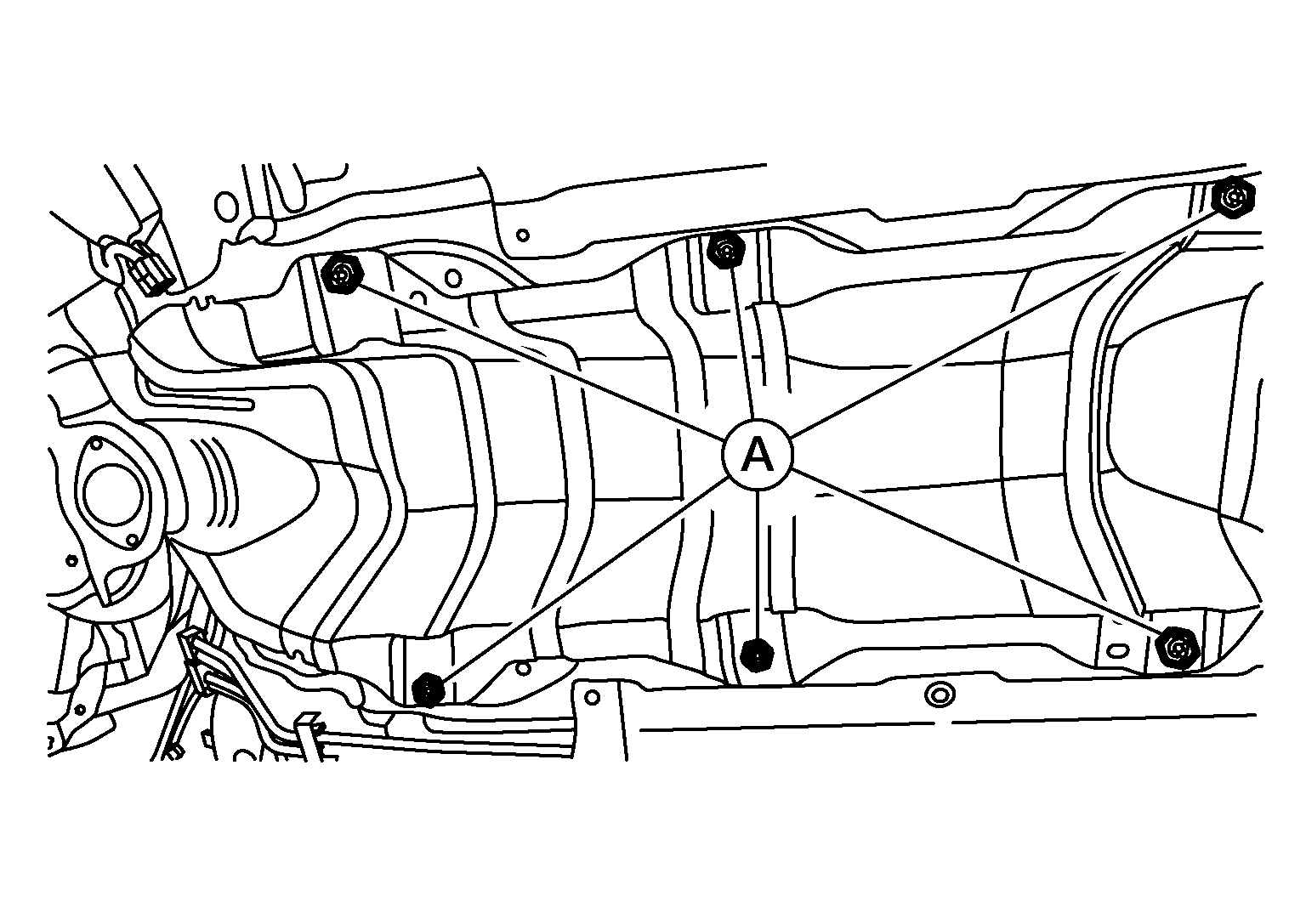

  3. Remove the heat shield nuts (A) and remove heat shield.
    GNSALDIA0810Z-810Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove battery tray. Refer to Removal and Installation .
  5. Using a suitable tool, disconnect control cable (1) from manual lever as shown in illustration (SYMBOL ).
    GNSALDIA0865Z-865Courtesy of NISSAN NORTH AMERICA, INC.

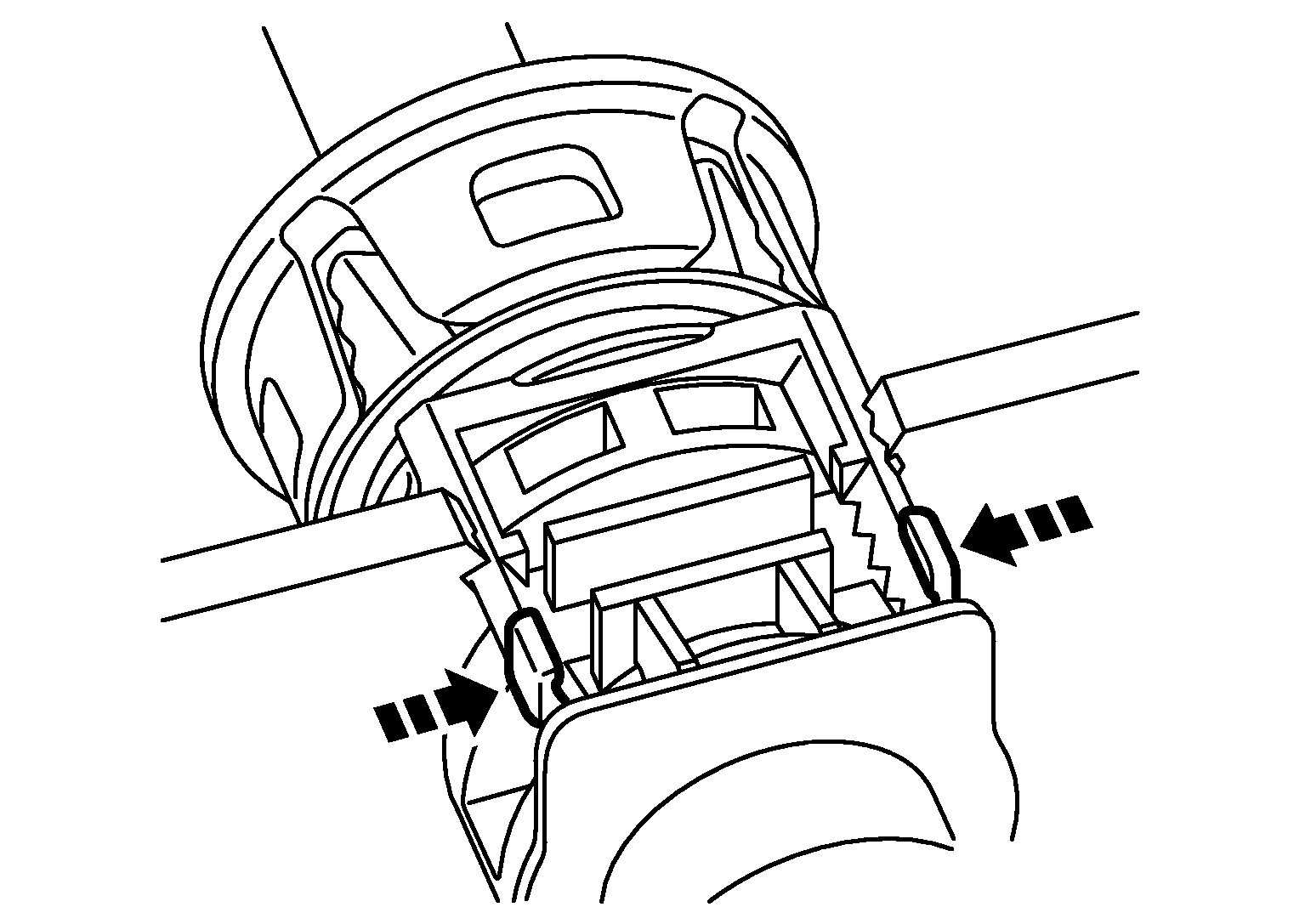

  6. While pressing the lock of the selector cables in the direction shown in illustration, remove the selector cable from the CVT cable bracket.
    GNSJPDIC0793Z-793Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the center console. Refer to Removal and Installation .
  8. Remove the control cable from the CVT shift selector assembly with the following procedure:

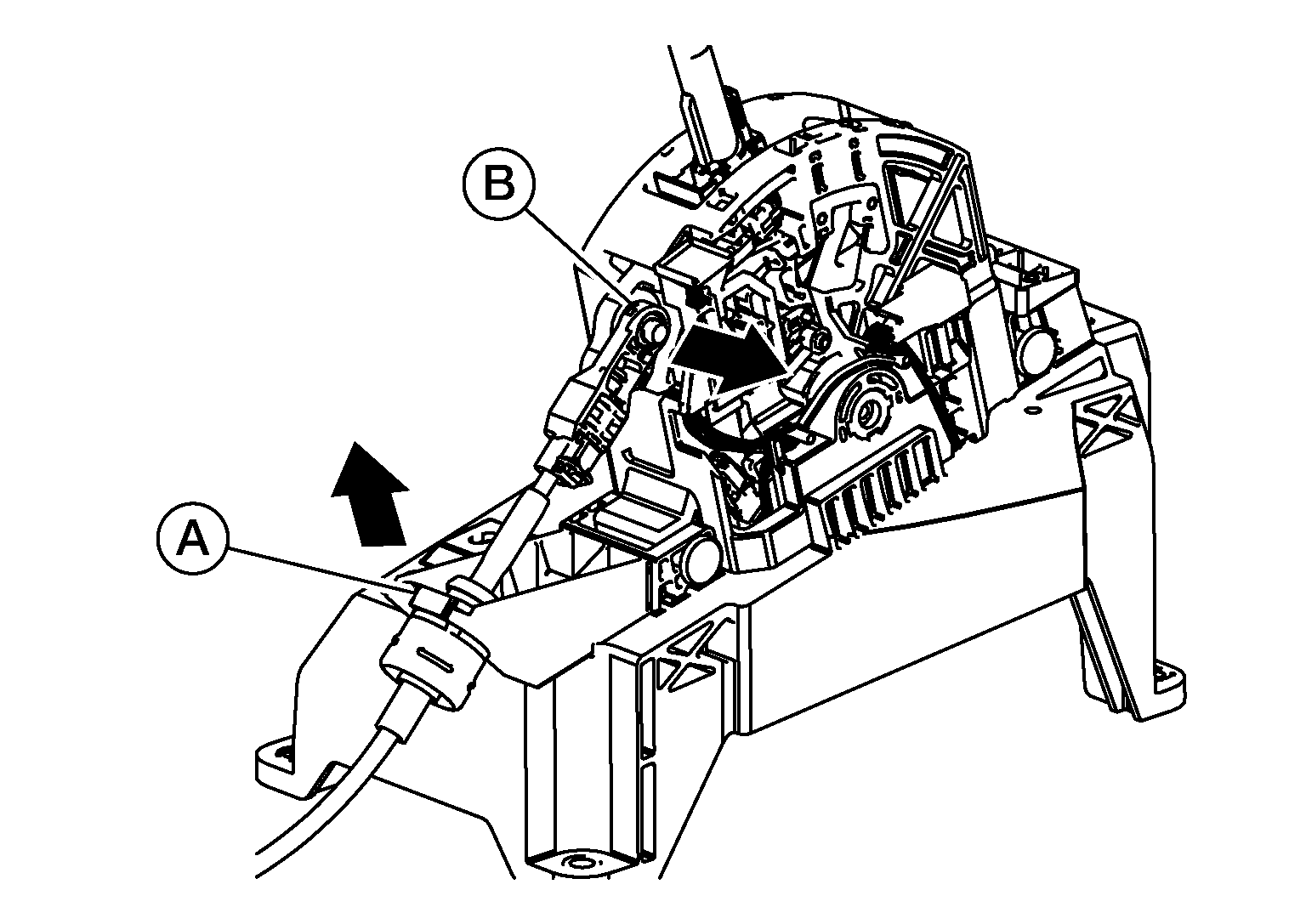

    1. Remove control cable (A) from shift selector assembly as shown in illustration (SYMBOL ).
      GNSALDIA0823Z-823Courtesy of NISSAN NORTH AMERICA, INC.
    2. Remove control cable (B) from CVT shift selector assembly in the direction shown in illustration (SYMBOL ).
  9. Release pawls (B) using suitable tool, and pull grommet (A) downward to remove.
    GNSJSDIA1809Z-809Courtesy of NISSAN NORTH AMERICA, INC.
  10. Remove the control cable from the vehicle.
