Input/Output Signal Standard

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
+	-	Signal	Input/Output
2 (GR)	--	--	--	--		--
4 (Y)	Ground	D range switch	Input	Ignition switch ON	Selector lever: "D" position	10 - 16 V
					Other than the above	0 V
5 (L)	Ground	N range switch	Input		Selector lever: "N" position	10 - 16 V
					Other than the above	0 V
6 (G)	Ground	R range switch	Input		Selector lever: "R" position	10 - 16 V
					Other than the above	0 V
7 (V)	Ground	P range switch	Input		Selector lever: "P" position	10 - 16 V
					Other than the above	0 V
8 (GR)	--	CAN-H	Input/Output	--		--
9 (R)	--	CAN-L	Input/Output	--		--
11 (LG)	Ground	Sensor ground	--	Always		0 V
12 (BR)	Ground	CVT fluid temperature sensor	Input	Ignition switch ON	CVT fluid: Approx. 20 deg.C (68 deg.F)	2.01 - 2.05 V
					CVT fluid: Approx. 50 deg.C (122 deg.F)	1.45 - 1.50 V
					CVT fluid: Approx. 80 deg.C 176 deg.F)	0.90 - 0.94 V
16 (W)	Ground	Secondary pressure sensor	Input	After engine warm up Selector lever: "N" position At idle		1.2 - 1.3 V
17 (R)	Ground	Primary pressure sensor	Input	After engine warm up Selector lever: "N" position At idle		0.7 - 0.9 V
23 (P)	--	CAN-L	Input/Output	--		--

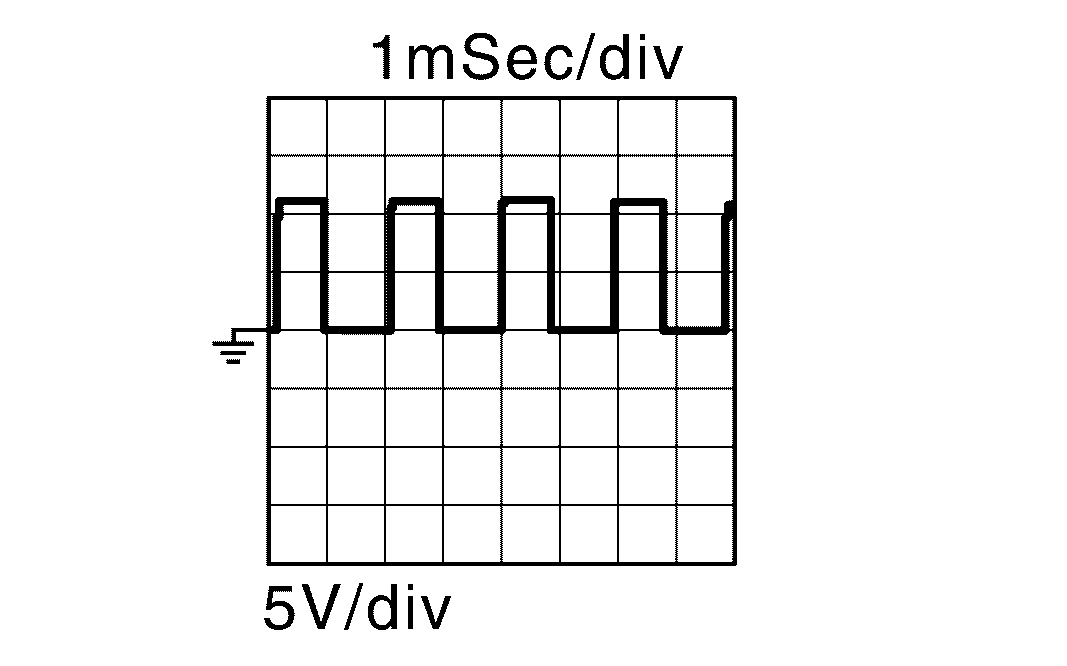

24 (LG)	Ground	Input speed sensor	Input	Shift position: "L" position Vehicle speed: 20 km/h (12 MPH)		880 Hz Courtesy of NISSAN NORTH AMERICA, INC.
26 (SB)	Ground	Sensor power supply	Output	Ignition switch: ON		5.0 V
				Ignition switch: OFF		0 V
30 (GR)	Ground	Line pressure solenoid valve	Output	After engine warming up Selector lever: "N" position At idle		Courtesy of NISSAN NORTH AMERICA, INC.
				After engine warming up Selector lever: "D" position Depress the accelerator pedal fully		Courtesy of NISSAN NORTH AMERICA, INC.
33 (L)	--	CAN-H	Input/Output	--		--
34 (W)	Ground	Output speed sensor	Input	Shift position: "L" position Vehicle speed: 20 km/h (12 MPH)		200 Hz Courtesy of NISSAN NORTH AMERICA, INC.
35 (GR)	Ground	Primary speed sensor	Input	Shift position: "L" position Vehicle speed: 20 km/h (12 MPH)		700 Hz Courtesy of NISSAN NORTH AMERICA, INC.
37 (Y)	Ground	Select solenoid valve	Output	Engine started Vehicle is stopped Selector lever: "N" position		Courtesy of NISSAN NORTH AMERICA, INC.
38 (G)	Ground	Torque converter clutch solenoid valve	Output	Selector lever: "D" position Accelerator pedal position: 1/8 or less Vehicle speed: 20 km/h (12 MPH) or more		Courtesy of NISSAN NORTH AMERICA, INC.
				Engine started Vehicle is stopped		Courtesy of NISSAN NORTH AMERICA, INC.
39 (W)	Ground	Secondary pressure solenoid valve	Output	Shift position: "L" position Vehicle speed: 20 km/h (12 MPH)		Courtesy of NISSAN NORTH AMERICA, INC.
40 (V)	Ground	Primary pressure solenoid valve	Output	Shift position: "L" position Vehicle speed: 20 km/h (12 MPH)		Courtesy of NISSAN NORTH AMERICA, INC.
41 (B)	Ground	Ground	--	Always		0 V
42 (B)	Ground	Ground	--	Always		0 V
46 (P)	Ground	Battery power supply (Memory back-up)	Input	Always		10 - 16 V
47 (BR)	Ground	Ignition power supply	Input	Ignition switch: ON		10 - 16 V
				Ignition switch: OFF		0 V
