WASHER FLUID LEVEL SWITCH Connector End View (E65)

Connector Types: FEA02FGY-LC

Connector Color: GRAY

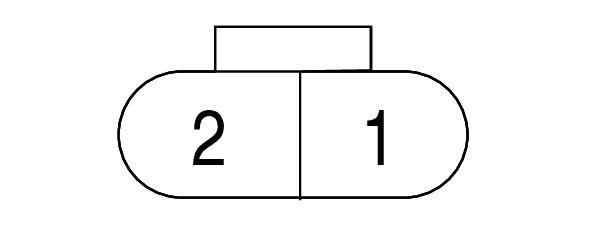

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

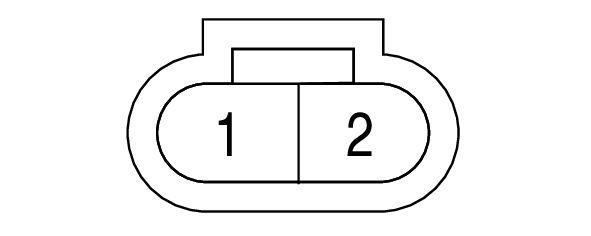

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y	WASHER SW
2	B	GROUND
