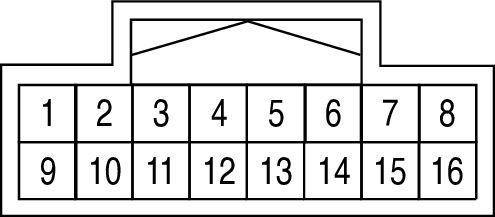

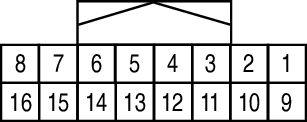

COMBINATION SWITCH Connector End View (M28)
Connector Types: TH16FGY-NH
Connector Color: GRAY
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | V | COMBINATION SW INPUT 1 |
| 2 | Y | COMBINATION SW OUTPUT 5 |
| 3 | W | COMBINATION SW INPUT 2 |
| 4 | G | COMBINATION SW INPUT 3 |
| 5 | V | COMBINATION SW OUTPUT 4 |
| 6 | GR | COMBINATION SW INPUT 4 |
| 7 | SB | COMBINATION SW OUTPUT 1 |
| 8 | LG | COMBINATION SW INPUT 5 |
| 9 | B | GROUND |
| 10 | SB | COMBINATION SW OUTPUT 3 |
| 11 | - | - |
| 12 | L | COMBINATION SW OUTPUT 6 |
