Exploded View

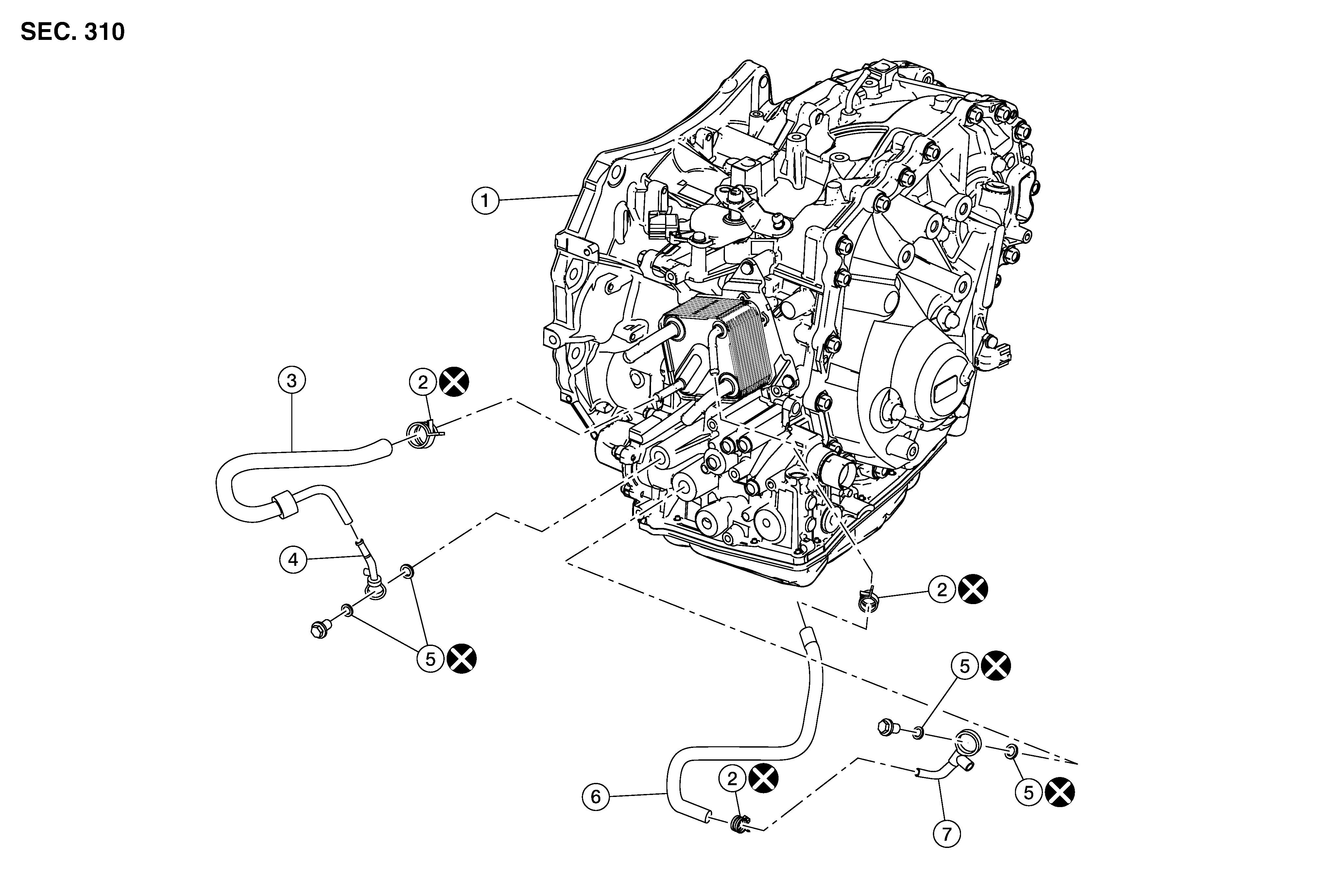

GNSALDIA0846Z-846Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transaxle assembly

2.

Hose clamp

3.

Fluid cooler hose A

4.

Fluid cooler tube A

5.

Copper washer

6.

Fluid cooler hose B
