Removal and Installation: Installation

Installation is in the reverse order of removal.

• After installing control cable, adjust it. Refer to Inspection and Adjustment .

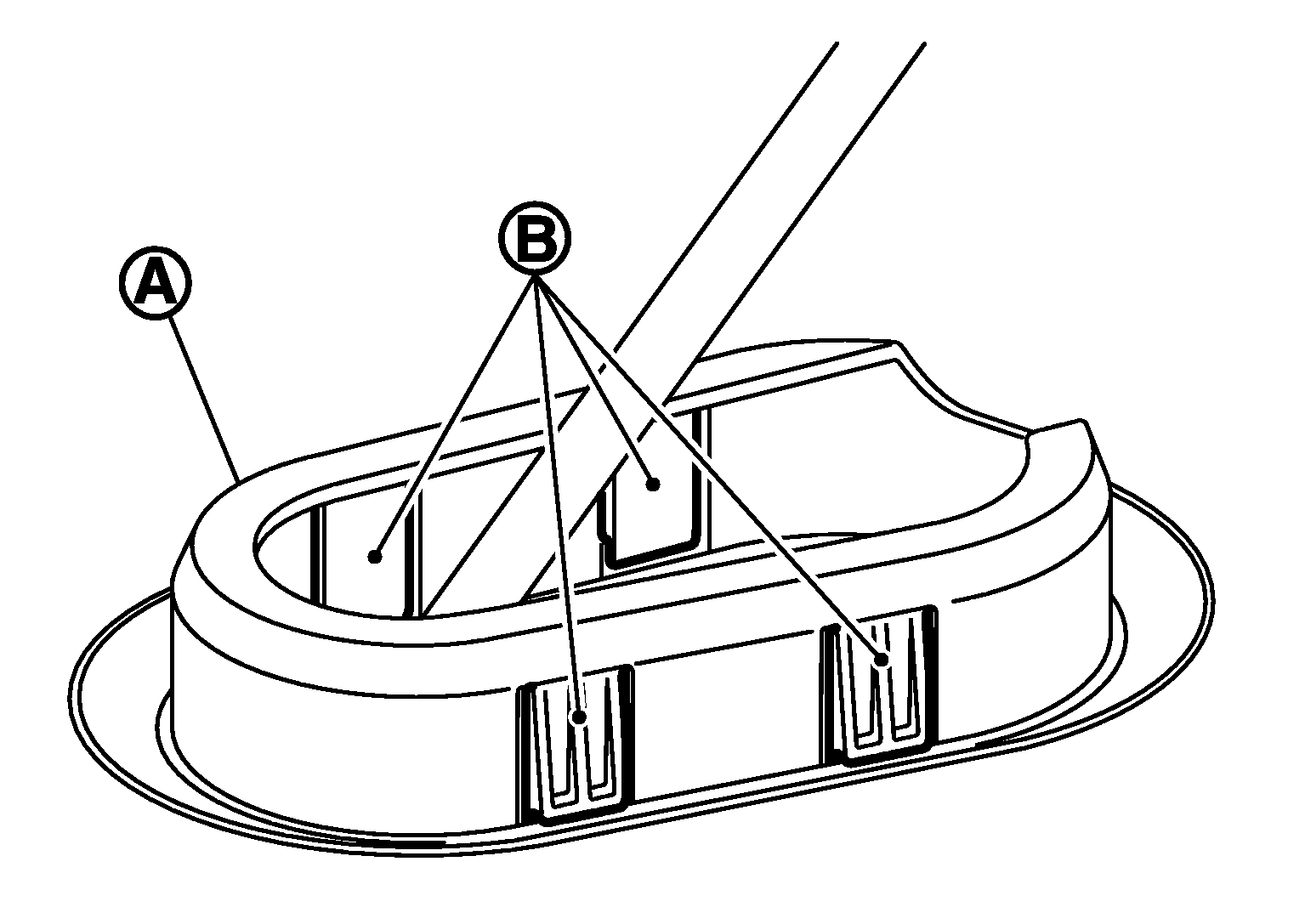

• From below the vehicle, press the grommet (A) into place until the pawls make a click sound.

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  • Place the grommet on the floor, then fasten it in place from below the vehicle.
  • Check that pulling down on the grommet does not disconnect it.
• Pay attention to the following when connecting the control cable to the CVT shift selector.

1. When connecting the control cable (1) to the CVT shift selector assembly (2), face the grooved surface of the rib (A) up and insert the control cable until it stops.

   Courtesy of NISSAN NORTH AMERICA, INC.

2. Install the socket (A) onto the CVT shift selector.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   • Place the socket onto the CVT shift lever, then fasten it in place from above.
   • Check that the pulling on the socket does not disconnect it.
