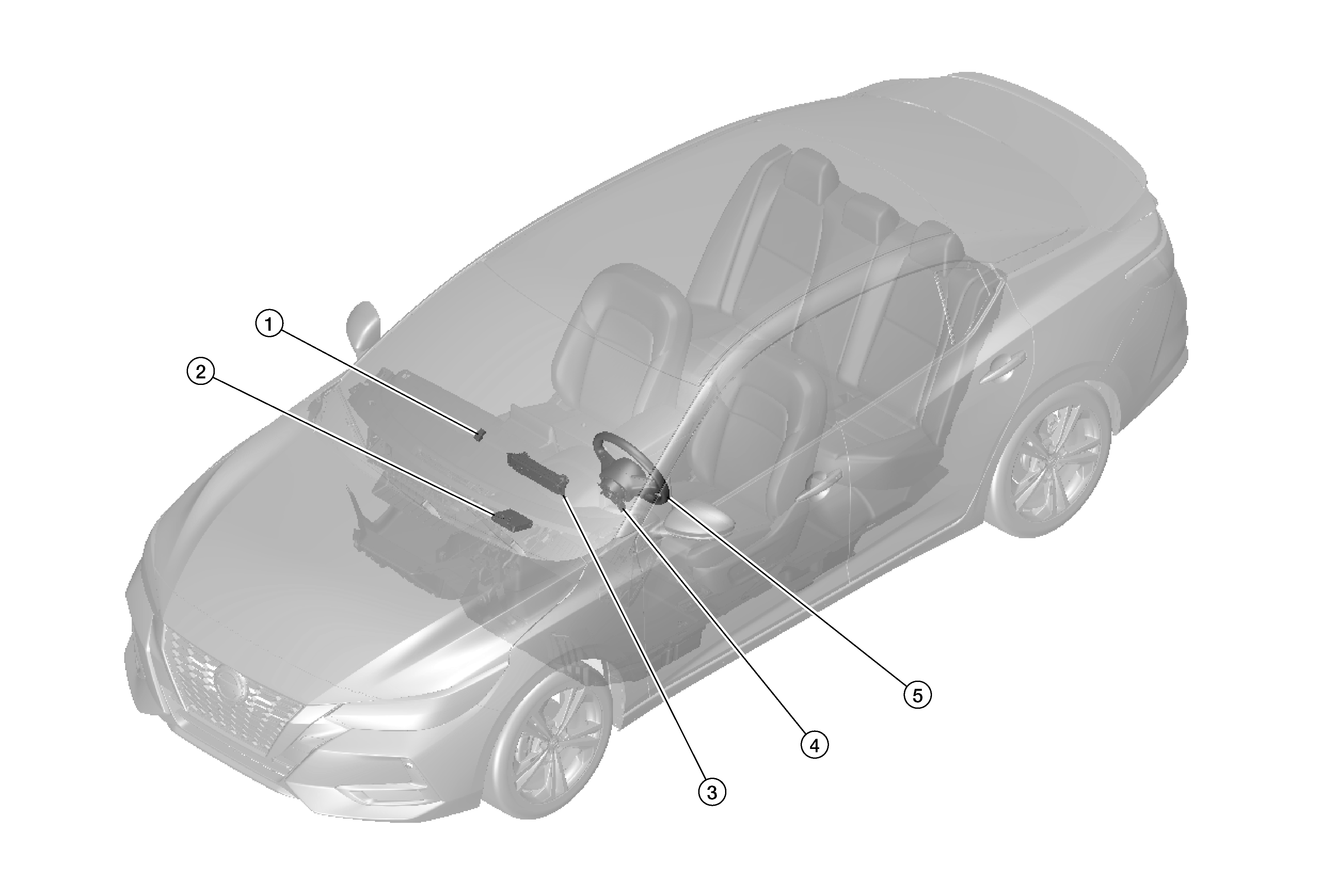

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Heated steering wheel relay	Refer to Heated Steering Wheel Relay .
2.	A/C auto amp.	For the function, refer to A/C Auto Amp. Refer to Component Location for detailed component location.
3.	A/C switch assembly (heated steering wheel switch)	The heated steering wheel switch is integrated into the A/C switch assembly and is used to activate/deactivate the heated steering wheel system. Refer to Component Location for detailed component location.
4.	Combination switch (spiral cable)	The spiral cable provides a rotating physical connection to the steering wheel. Refer to Component Location for detailed component location.
5.	Heated steering wheel	Refer to Heated Steering Wheel .
