Removal and Installation: Installation

  1. Align lower joint to steering column matching mark and install to steering column.

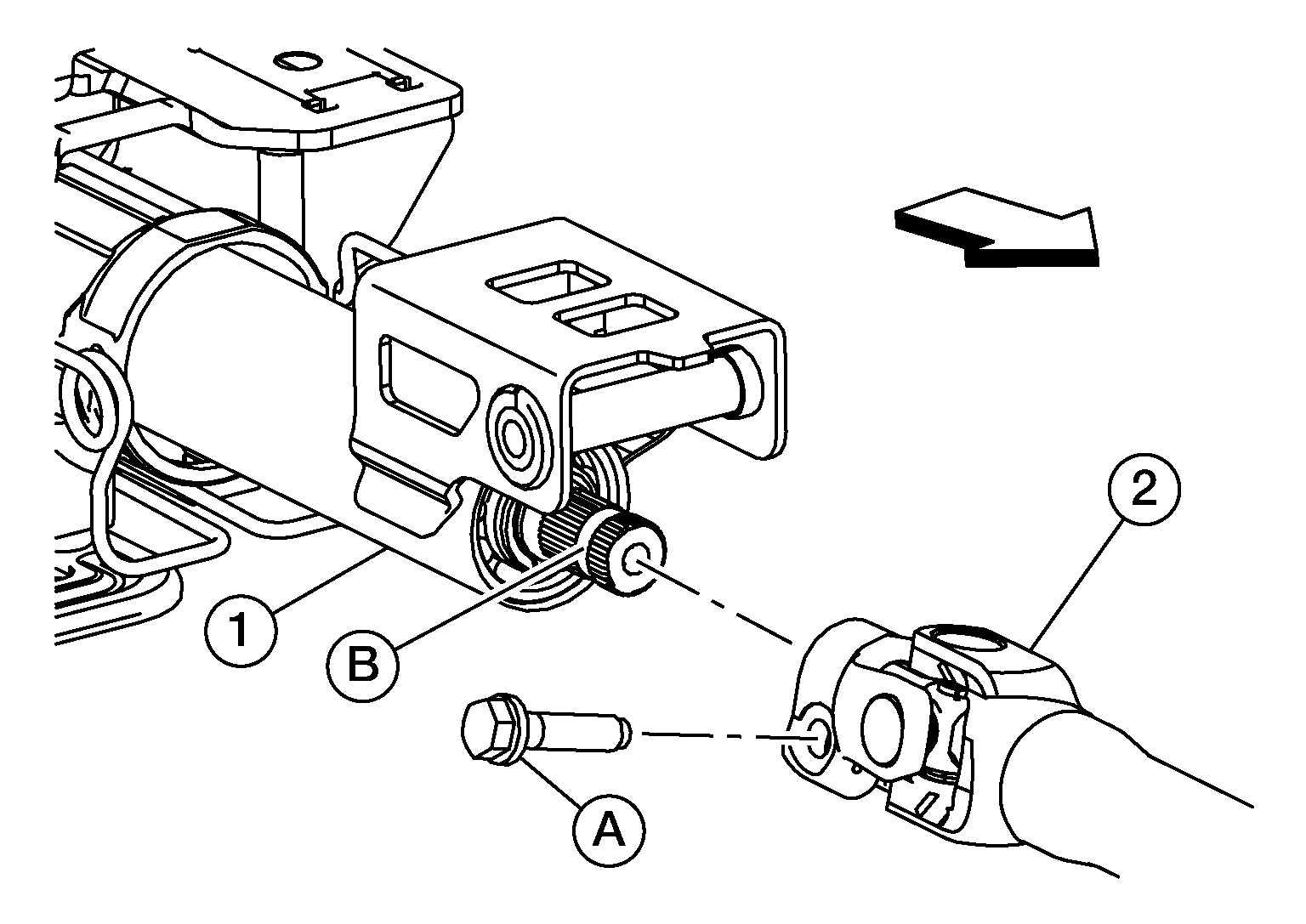

  2. Install bolt (A) to lower joint (2) finger-tight. Verify bolt is seated in steering column (1) pinion shaft groove (B).
    GNSALGIA0174Z-174Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    Front
    CAUTION: Bolt (A) is directional. Refer to Exploded View .

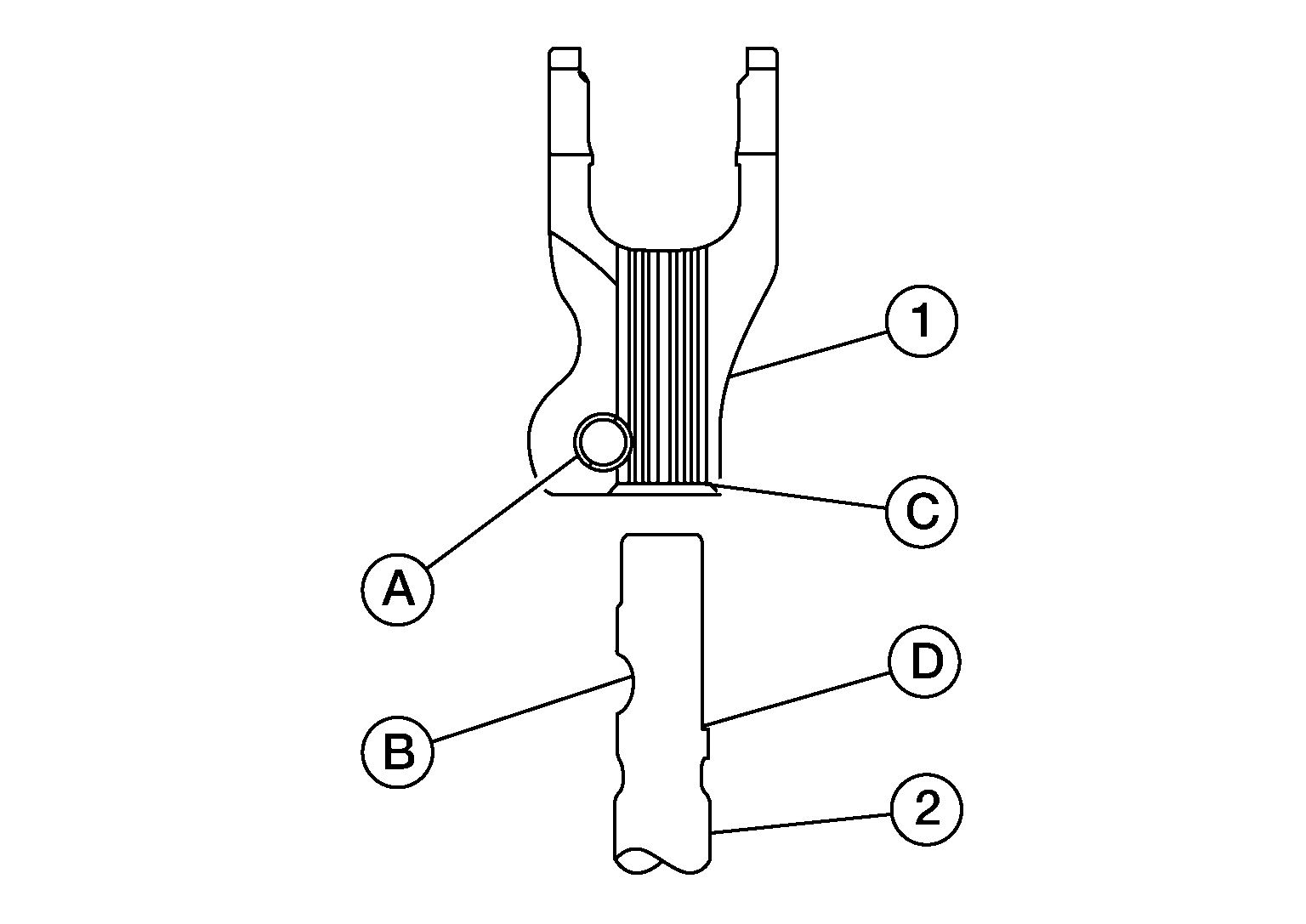

  3. Align lower joint (1) bolt hole (A) with steering gear pinion shaft (2) groove (B).
    GNSALGIA0305Z-305Courtesy of NISSAN NORTH AMERICA, INC.
  4. Connect lower joint to steering gear pinion shaft until surface (C) contacts surface (D).
  5. Install lower joint bolt finger-tight.
    CAUTION: Lower joint bolt is directional. Refer to Exploded View .
  6. Tighten all lower joint bolts to specification. Refer to Exploded View .
    CAUTION:
    • Make sure steering wheel is in neutral position when driving straight ahead.
    • Adjust neutral position of steering angle sensor. Refer to Description .
