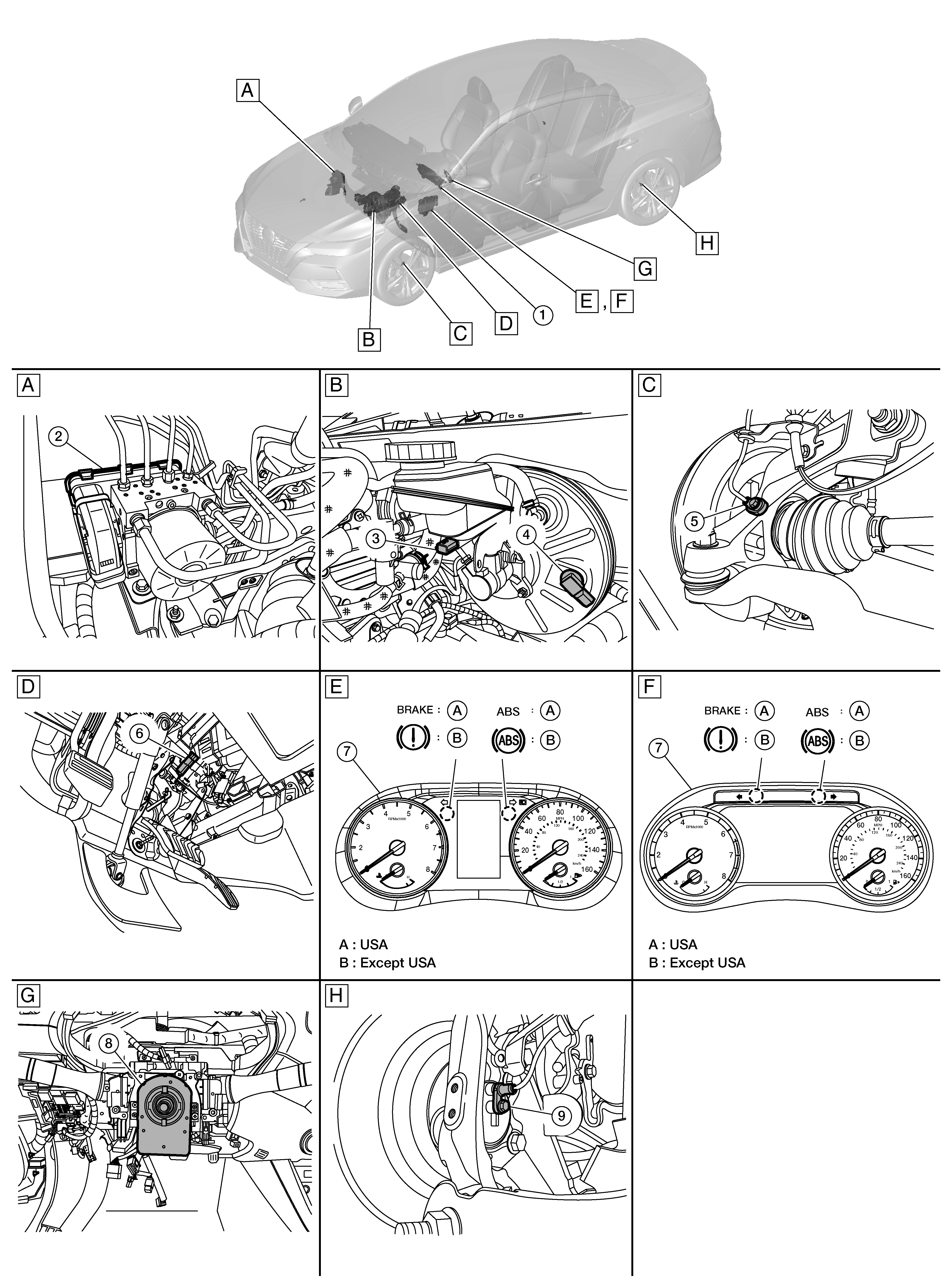

Component Location
|
A. |
Right side of engine compartment |
B. |
Left side of engine compartment |
C. |
Left front wheel area (RH similar) |
|
D. |
Brake pedal area |
E. |
Left side of instrument panel (view with component removed from vehicle) |
F. |
Left side of instrument panel (view with component removed from vehicle) |
|
G. |
Steering wheel area (view with steering wheel removed) |
H. |
Left rear wheel area (RH similar) |
|
No. |
Component parts |
Function |
|
1. |
BCM |
BCM transmit stop lamp switch signal to ABS actuator and electric unit (control unit). Refer to Component Location for detailed component location. |
|
2. |
ABS actuator and electric unit (control unit) |
|
|
3. |
Brake fluid level switch |
Refer to Brake Fluid Level Switch . |
|
4. |
Vacuum sensor |
Refer to Vacuum Sensor . |
|
5. |
Front wheel sensor LH |
Refer to Wheel Sensor and Sensor Rotor . |
|
6. |
Stop lamp switch |
Refer to Stop Lamp Switch . |
|
7. |
Combination meter |
Transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication:
Receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Combination Meter (VDC OFF signal) . |
|
8. |
Chassis control module (with built in steering angle sensor) |
Chassis Control Module (With Built In Steering Angle Sensor) |
|
9. |
Rear wheel sensor LH |
