Precautions For Front Camera Unit
- Always keep windshield clean.
- Do not strike or damage the areas around the camera.
- Do not cover or attach stickers, or install any accessory near the camera. This could block camera signals, and/or cause failure or malfunction.
- Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the camera unit's detection capability.

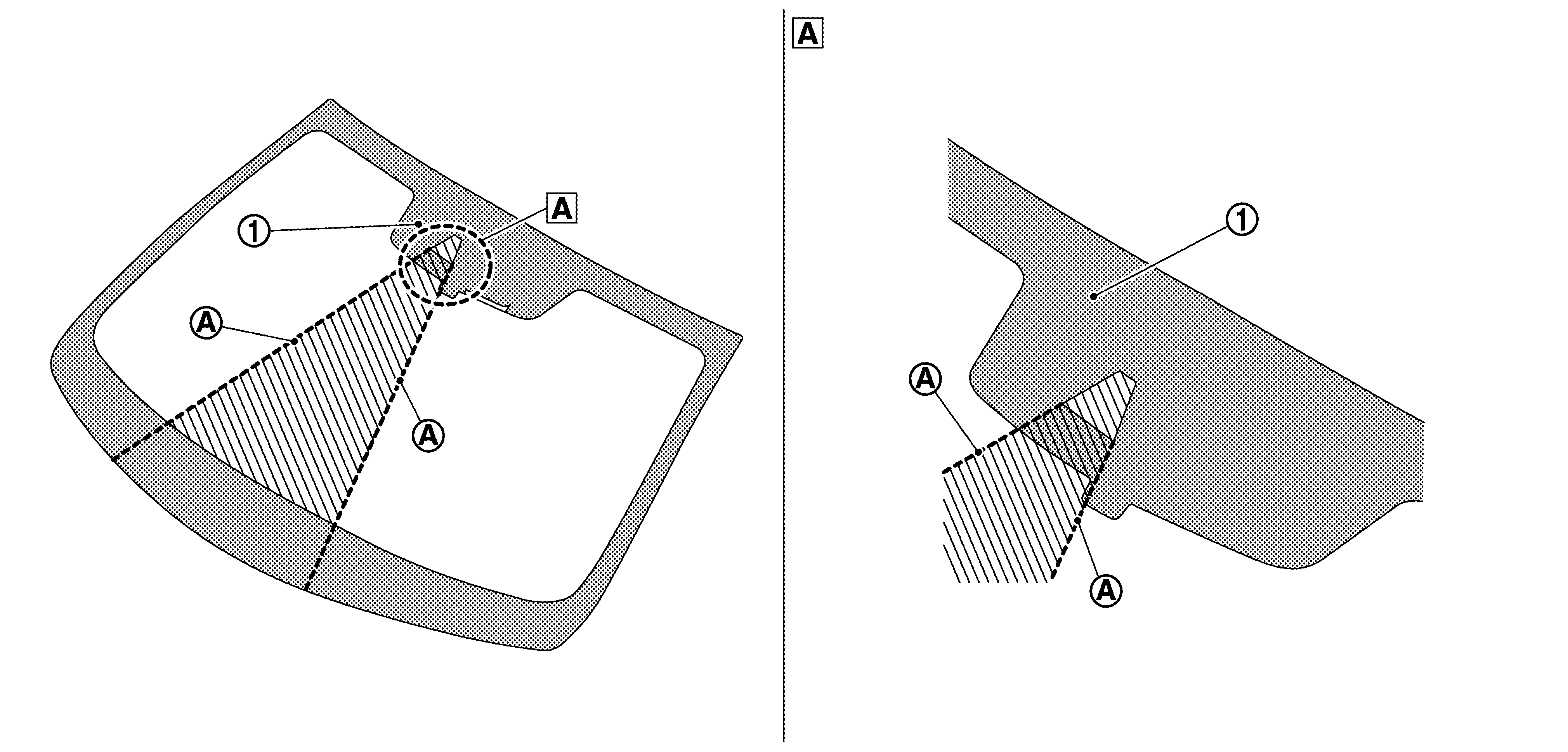

- Windshield prohibited area of affixing stickers or accessories.
CAUTION:
- Never affix a sticker (including transparent one) or install an accessory to the detecting range of front camera unit.
- The area within the lines extended from notch of windshield upper portion printed in black is the detecting range of front camera unit. Affixing a sticker or accessory to this range is prohibited.
Windshield upper position
Black print part
Line extended from notch (front camera unit)

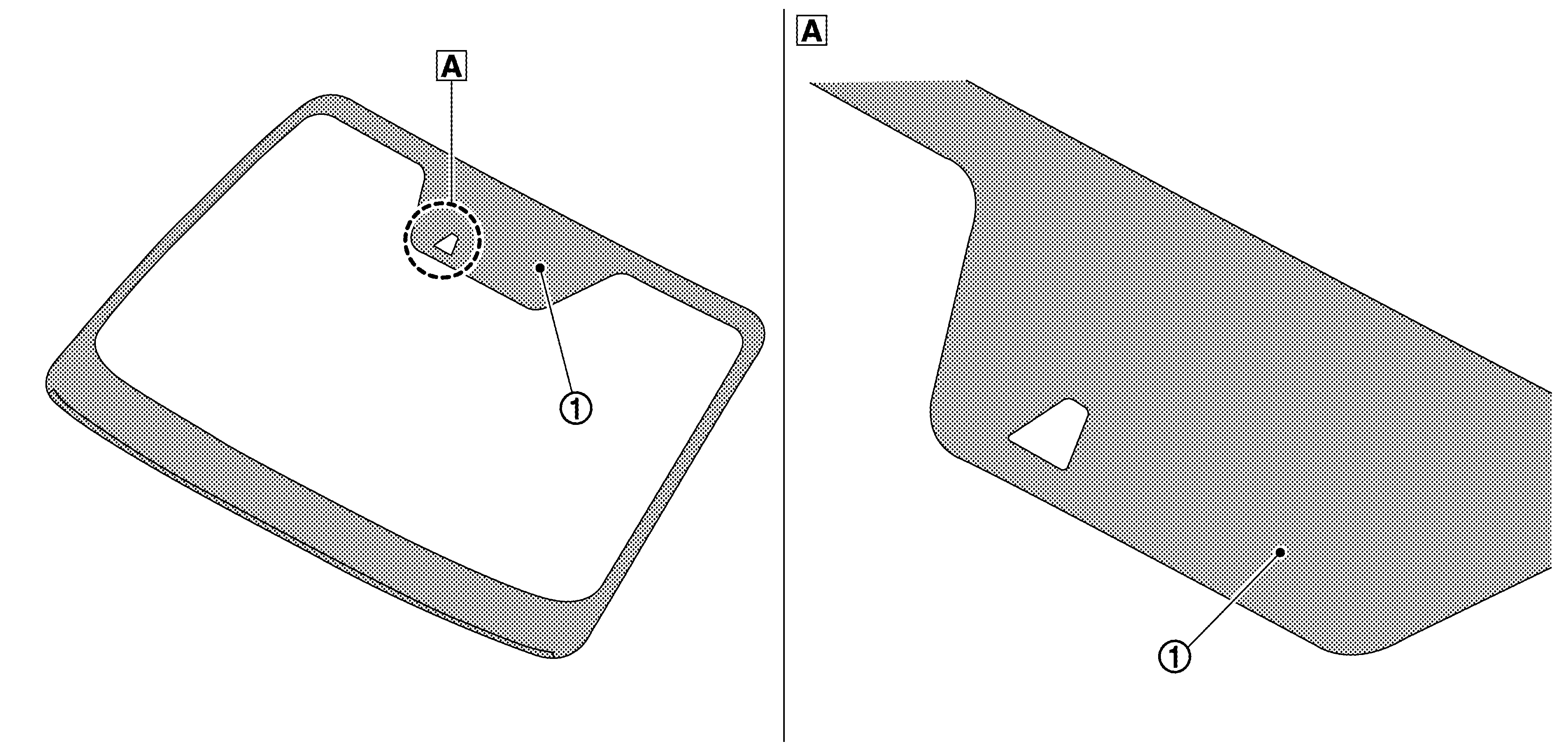

- For operating the system normally, replace the windshield glass in the following case.
