Work Procedure: Preparation

Perform self-diagnosis of front camera unit.

Is any DTC detected?

Except "C1B01"

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC Index .

"C1B01" or no DTC

GO TO 2.

1. Perform pre-inspection for diagnosis.
2. Adjust the tire pressure to the specified pressure value.
3. Maintain no-load in vehicle.
4. Check if coolant and engine oil are filled up to correct level and fuel tank is full.
5. Shift the selector lever to "P" position and release the parking brake.
6. Clean the windshield.
7. Completely clear off the instrument panel.
   NOTE: If any fixed object is put on instrument panel, cover the upper of the instrument panel with black cloth to prevent an object from reflecting in the windshield.

GO TO 3.

1. Prepare the target sheet (KV99117200), or tape three sheets of black paper and three sheets of white paper together with dimensions of 120 mm (4.72 in) x 120 mm (4.72 in) to make a target of 360 mm (14.17 in) x 240 mm (9.45 in). (Correct the magnification of print and print the target mark sample in the service information on the black paper. Refer to Target Mark Sample  .)

   Courtesy of NISSAN NORTH AMERICA, INC.

   L	: 120 mm (4.72 in)
   W	: 120 mm (4.72 in)

   NOTE:

   • Use a transparent tape.
   • Never apply tape to target surface.
   • Never allow a clearance on the black and white boundary.
2. Stick a printed target mark on the white wall with a scotch tape or a piece of double-sided tape.
   NOTE:

   • Use the white wall that peripheral area of the target is monochrome such as.
   • Notice that the cross of the target is horizontal and vertical.

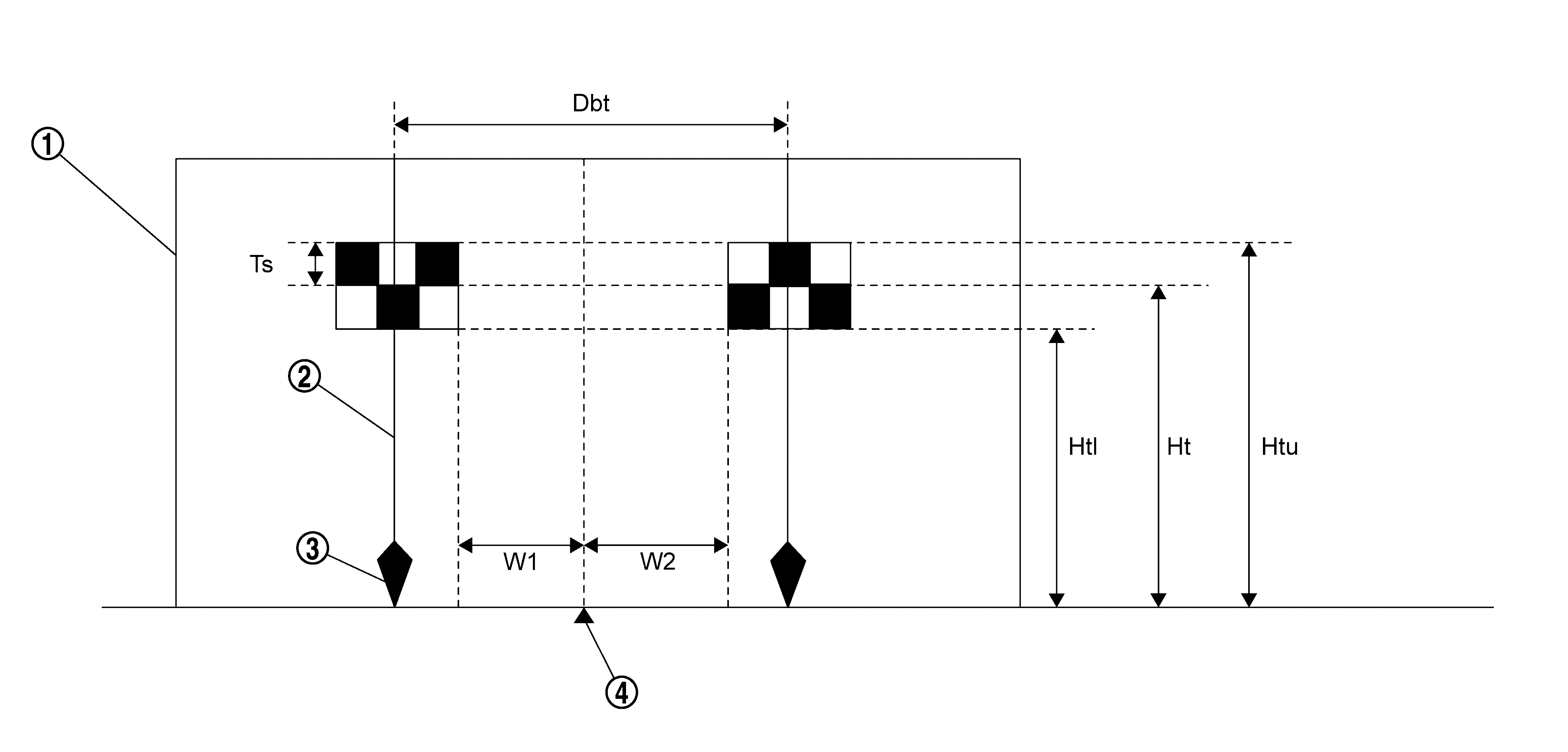

   Courtesy of NISSAN NORTH AMERICA, INC.

   	White wall		String		Cone
   	Center between two targets

   Side of a target (Ts)	: 120 mm (4.72 in)
   Height of a target lower end (Htl)	: 1, 180 mm (46.46 in)
   Height of a target center (Ht)	: 1, 300 mm (51.18 in)
   Height of a target upper end (Htu)	: 1, 420 mm (55.91 in)
   Width between a right target center from a left target center (Dbt)	: 720 mm (28.35 in)
   W1	: 180 mm (7.09 in)
   W2	: 180 mm (7.09 in)

Proceed to Target Setting  .
