Removal and Installation: Removal

CAUTION: Be sure to perform "ADDITIONAL SERVICE WHEN REPLACING ADAS CONTROL UNIT" when replacing ADAS control unit. Refer to Description .
  1. Remove instrument panel assembly. Refer to Removal and Installation .

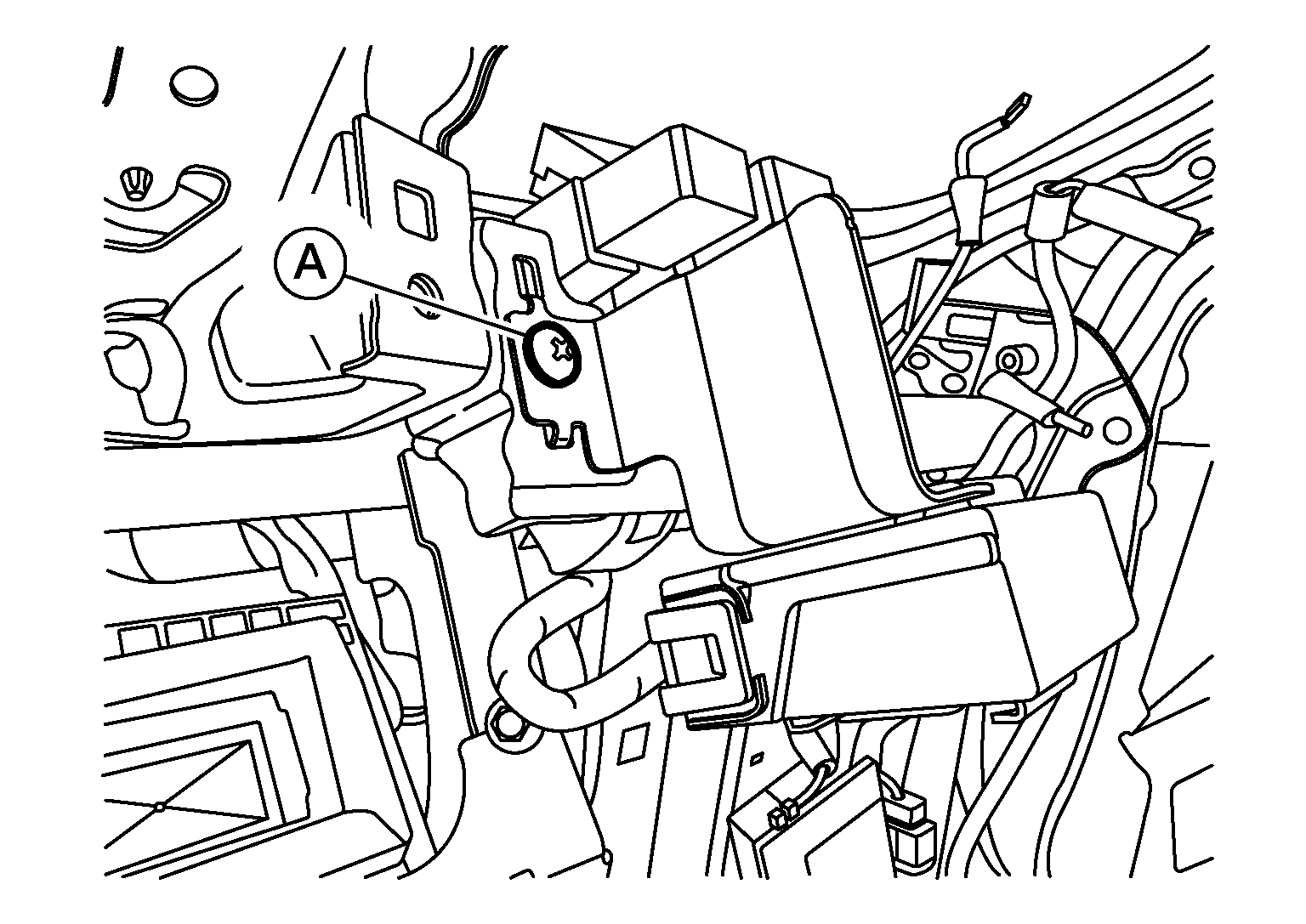

  2. Remove screw (A).
    GNSALOIA0364Z-364Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from ADAS control unit and remove ADAS control unit.
