Removal and Installation: Installation

Installation is in the reverse order of removal.

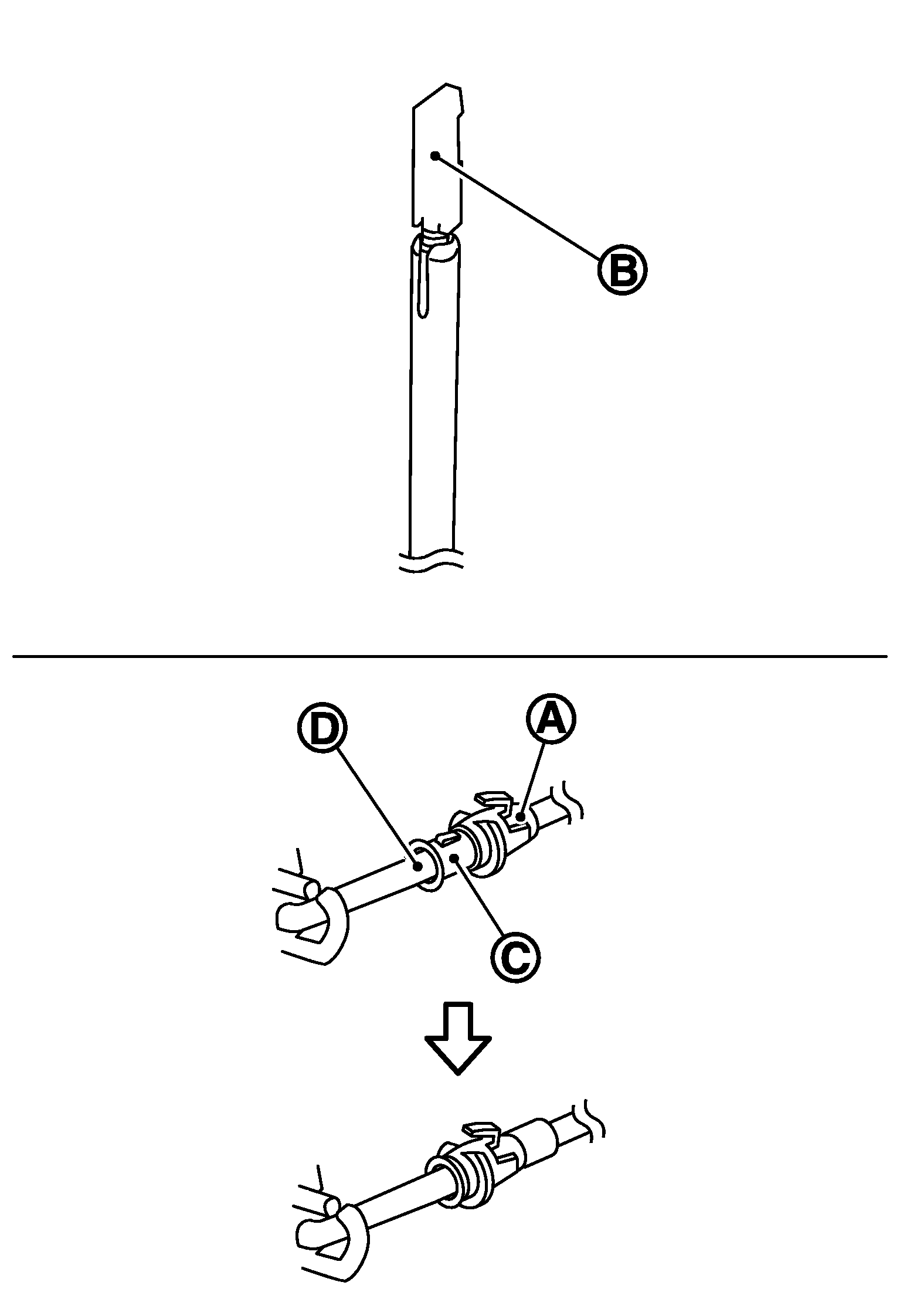

• While pressing the detent rod (B) down, slide the key interlock cable slider (A) toward the key interlock rod (D) side, and install the adjusting holder (C) and key interlock rod.

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  • Do not squeeze the pawls on the key interlock cable slider when holding the slider.
  • Do not apply force in a perpendicular direction to the key interlock rod when sliding the slider.

  : Interlock cable in lock position

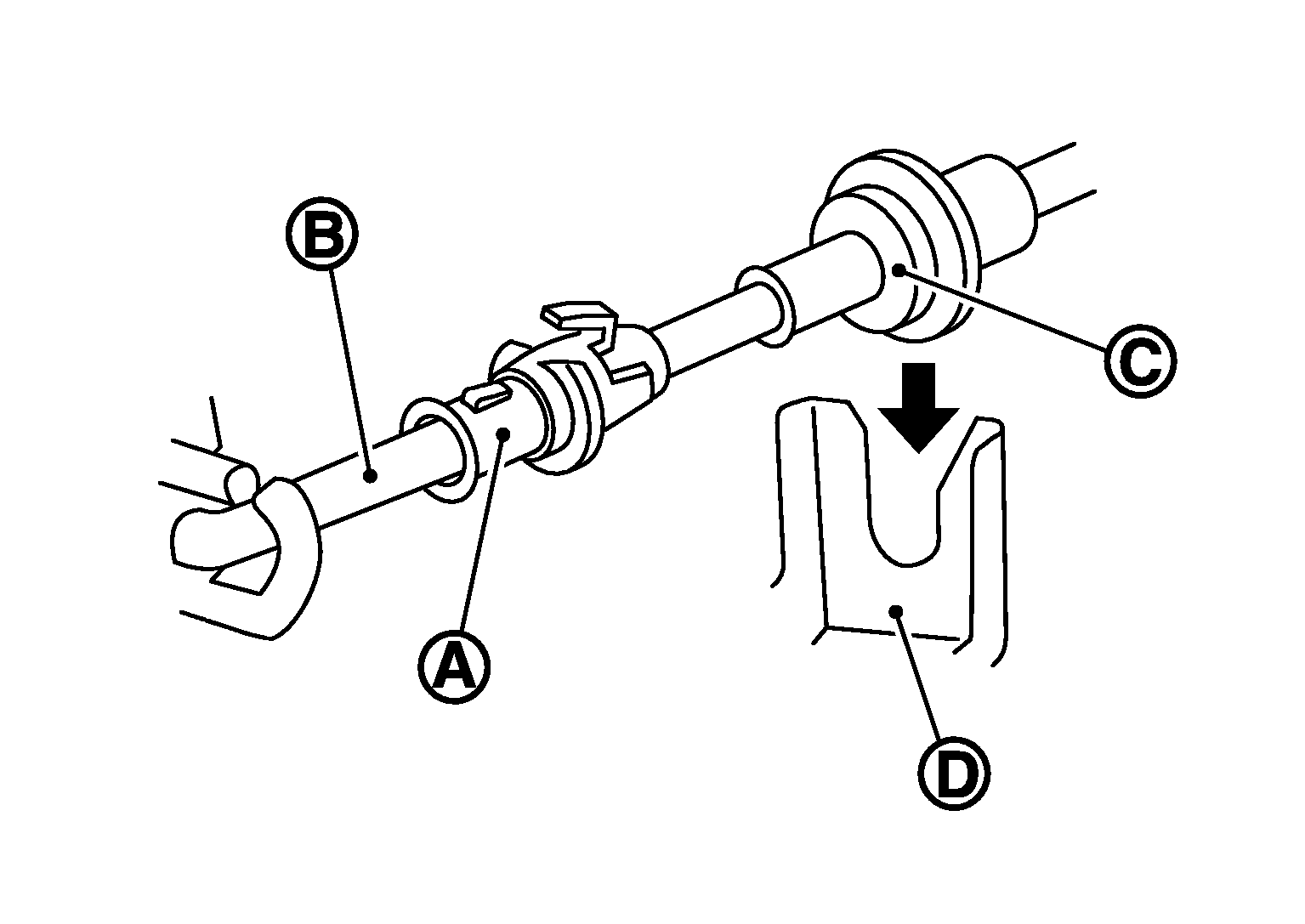

• Install the adjusting holder (A) onto the key interlock rod (B), then install the casing cap (C) onto the shift selector cable bracket (D).

  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION:

  • When installing the key interlock cable, do not bend or twist the cable forcefully.
  • After connecting the key interlock cable to the shift selector cable bracket, be sure to check that the casing cap is completely fastened to the cable bracket. If the casing cap is easily displaced, replace the key interlock cable.
