Exploded View

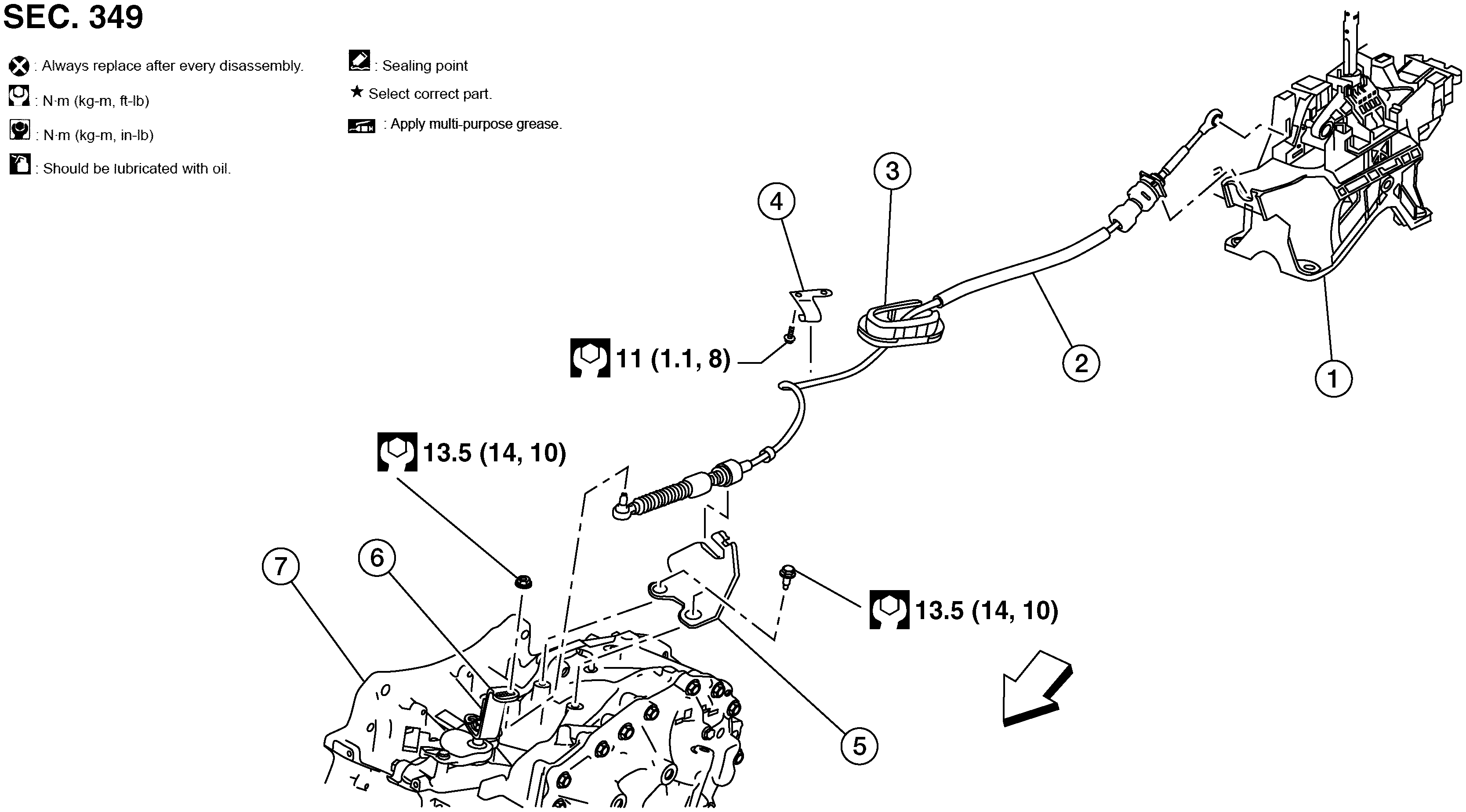

Fig 1: Control Cable Components With Torque Specification
GNSAWDIA1324Z-324Courtesy of NISSAN NORTH AMERICA, INC.

1.

Shift selector

2.

Control cable

3.

Retainer grommet

4.

Bracket A

5.

Bracket B

6.

Manual lever

7.

Transaxle assembly

SYMBOL

Front
