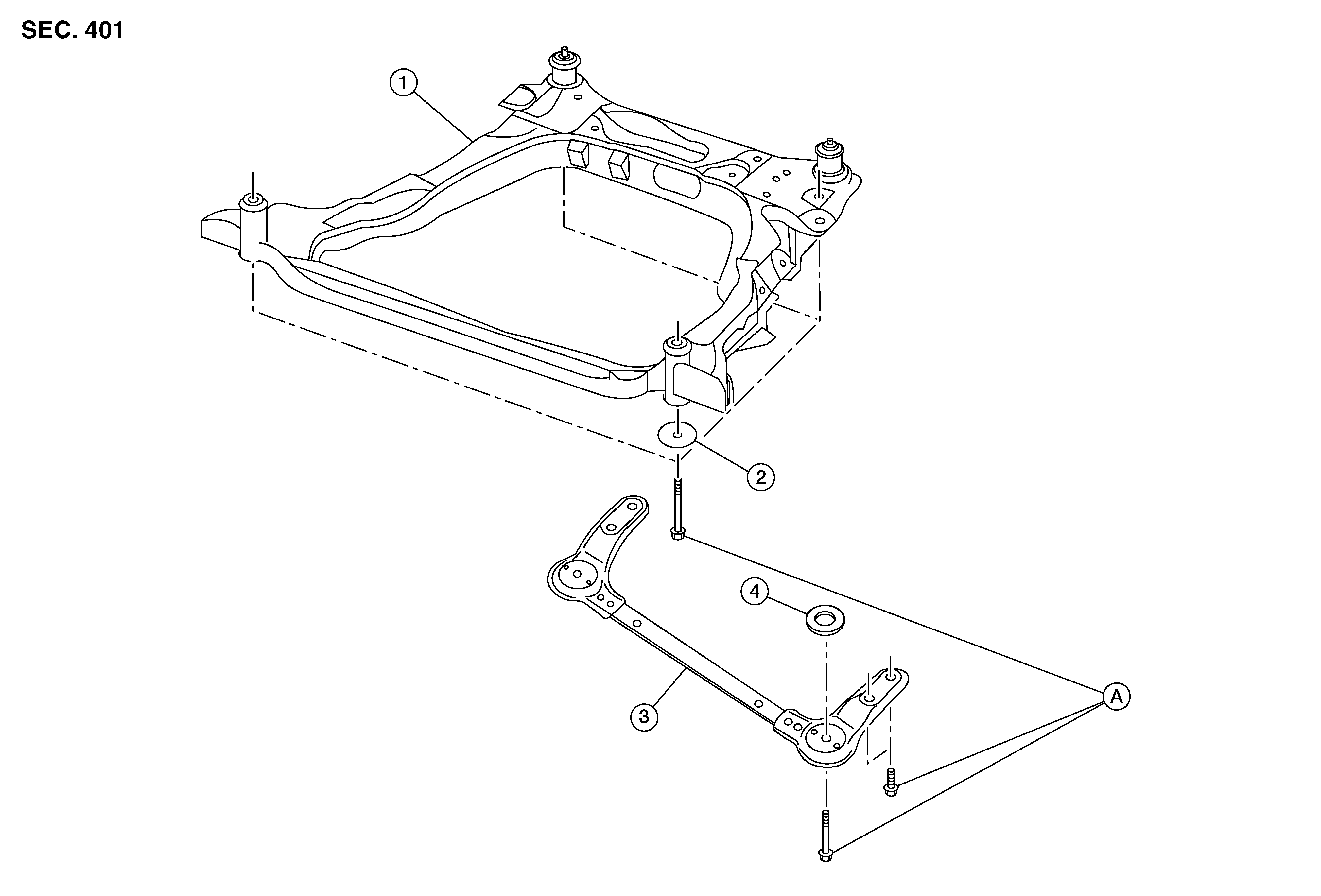

Exploded View

GNSAWEIA0374Z-374Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Rebound insulator stopper

3.

Front suspension member stay

4.

Rebound stopper

A.

Refer to Installation .
