Home >> Nissan-Datsun >> 2020 >> Rogue SL, AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Removal And Installation >> Steering Knuckle >> Exploded View

Exploded View

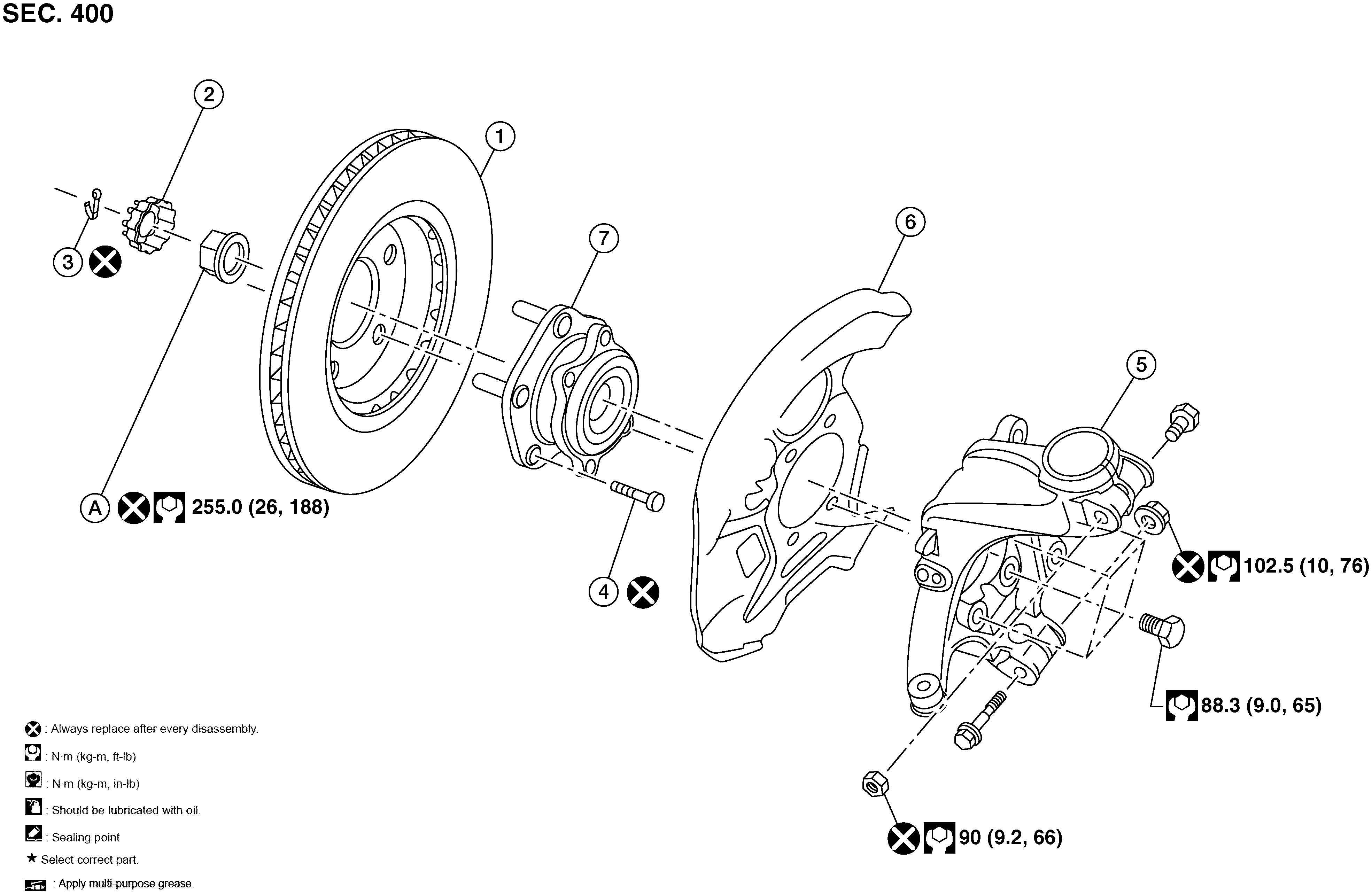

Fig 1: Steering Knuckle Components With Torque Specification
GNSAWEIA0373Z-373Courtesy of NISSAN NORTH AMERICA, INC.

1.

Disc brake rotor

2.

Nut retainer

3.

Cotter pin

4.

Wheel stud

5.

Steering knuckle

6.

Splash guard

7.

Wheel hub and bearing

A.

Wheel hub lock nut
