Exploded View

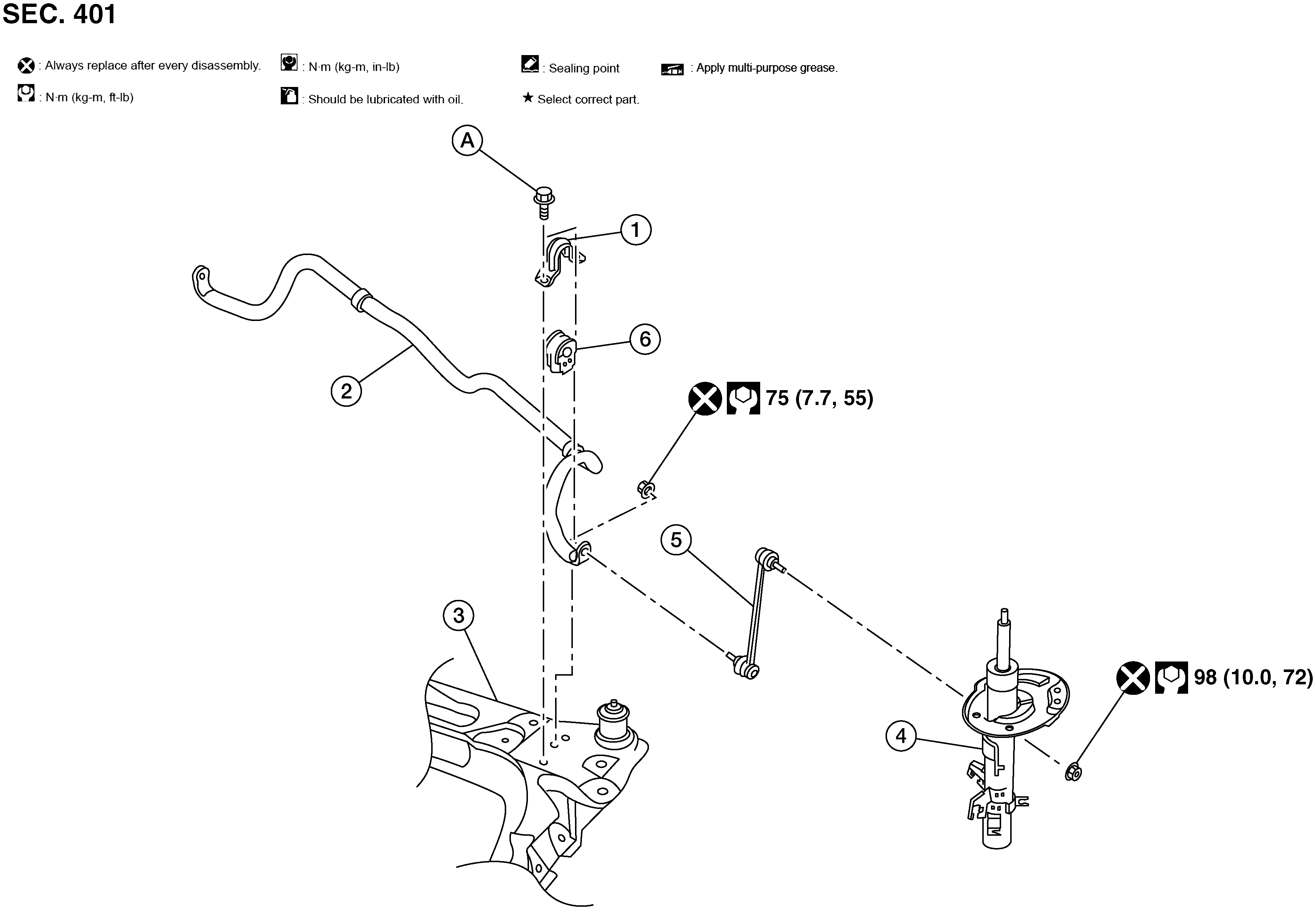

Fig 1: Front Stabilizer Components With Torque Specification

GNSAWDIA1322Z-322

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer clamp	2.	Stabilizer bar	3.	Front suspension member
4.	Strut	5.	Stabilizer connecting rod	6.	Stabilizer bushing
A.	Refer to Installation .
