Exploded View

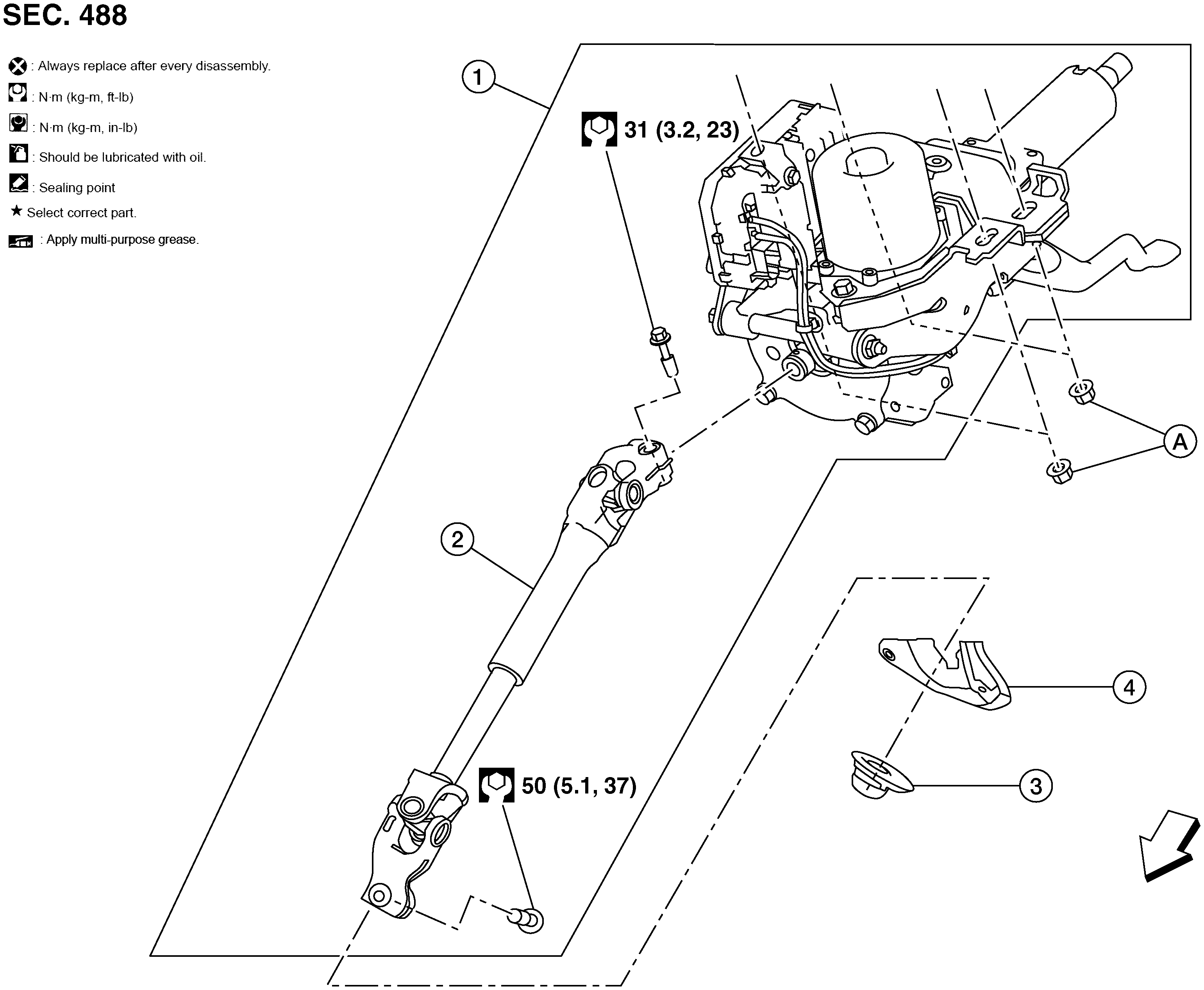

Fig 1: Steering Column Components With Torque Specification
GNSALGIA0352Z-352Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

3.

Lower cover seal

4.

Column hole cover

A.

Refer to INSTALLATION .

SYMBOL

Front
