Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

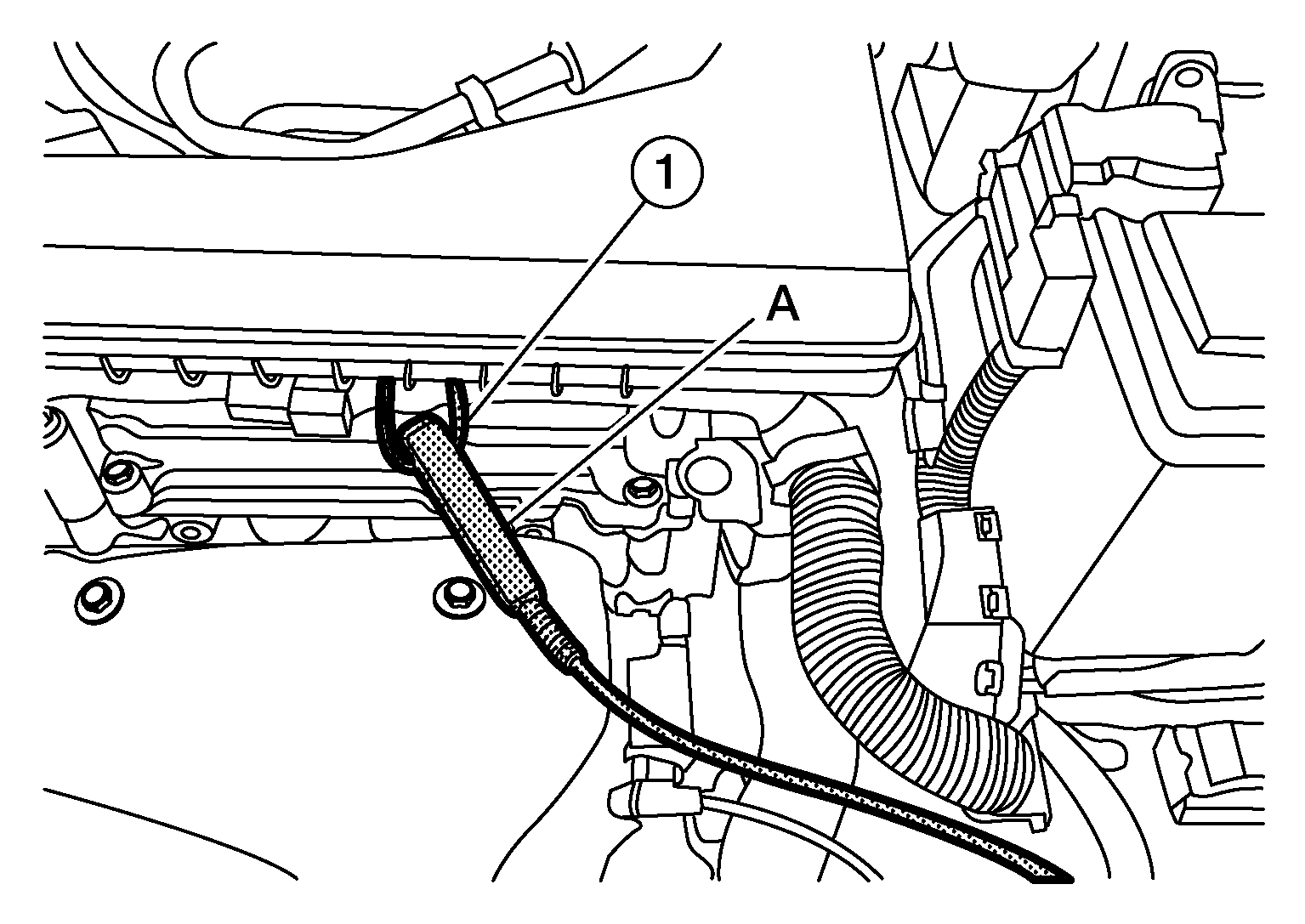

    1. Attach timing light (A) to the ignition coil No. 1 harness SYMBOL .
      GNSALBIA1182Z-182Courtesy of NISSAN NORTH AMERICA, INC.

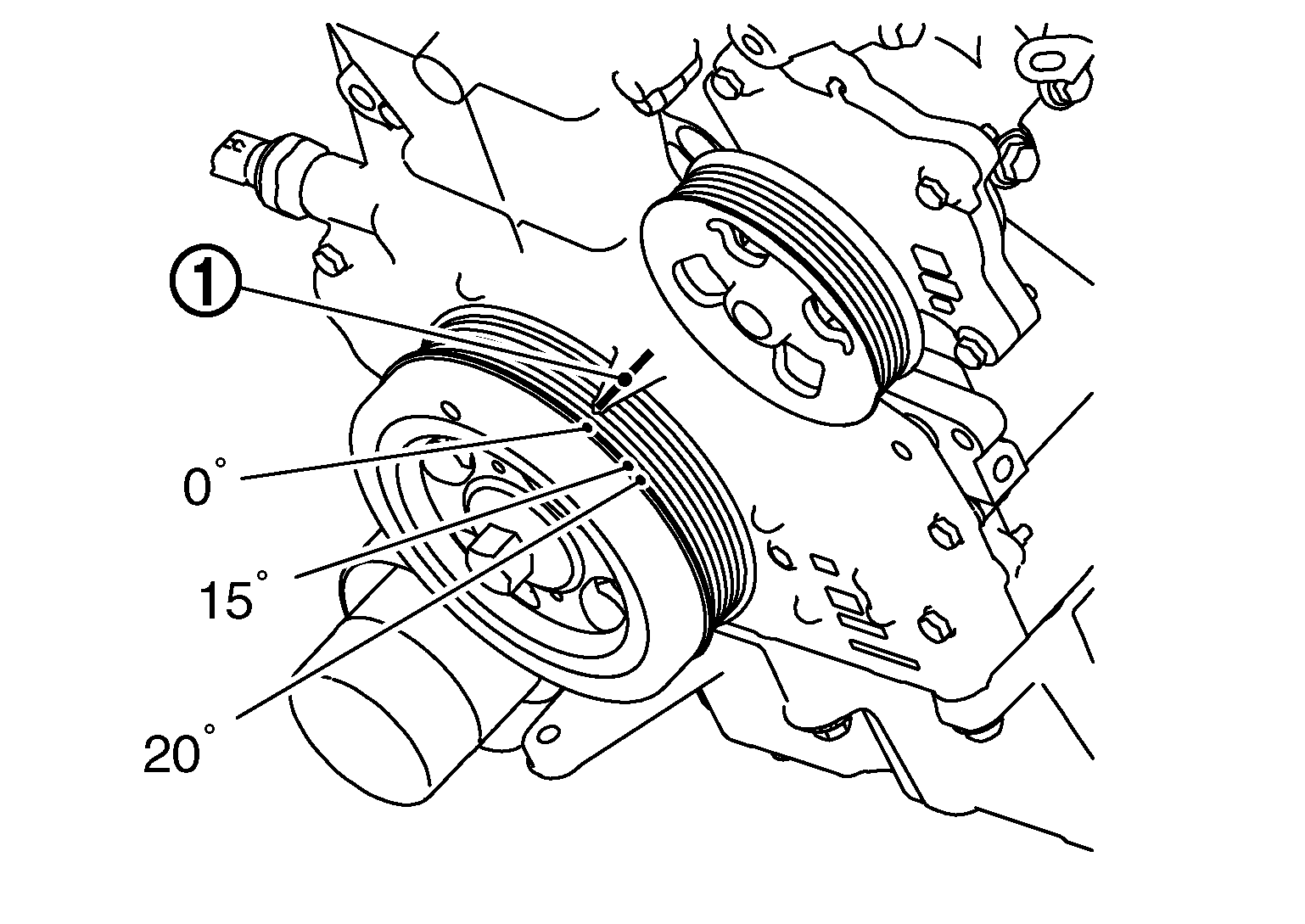

    2. Check ignition timing.
      GNSJPBIA5854Z-854Courtesy of NISSAN NORTH AMERICA, INC.

      SYMBOL

      : Timing indicator

    INSPECTION END
