Exploded View: Removal

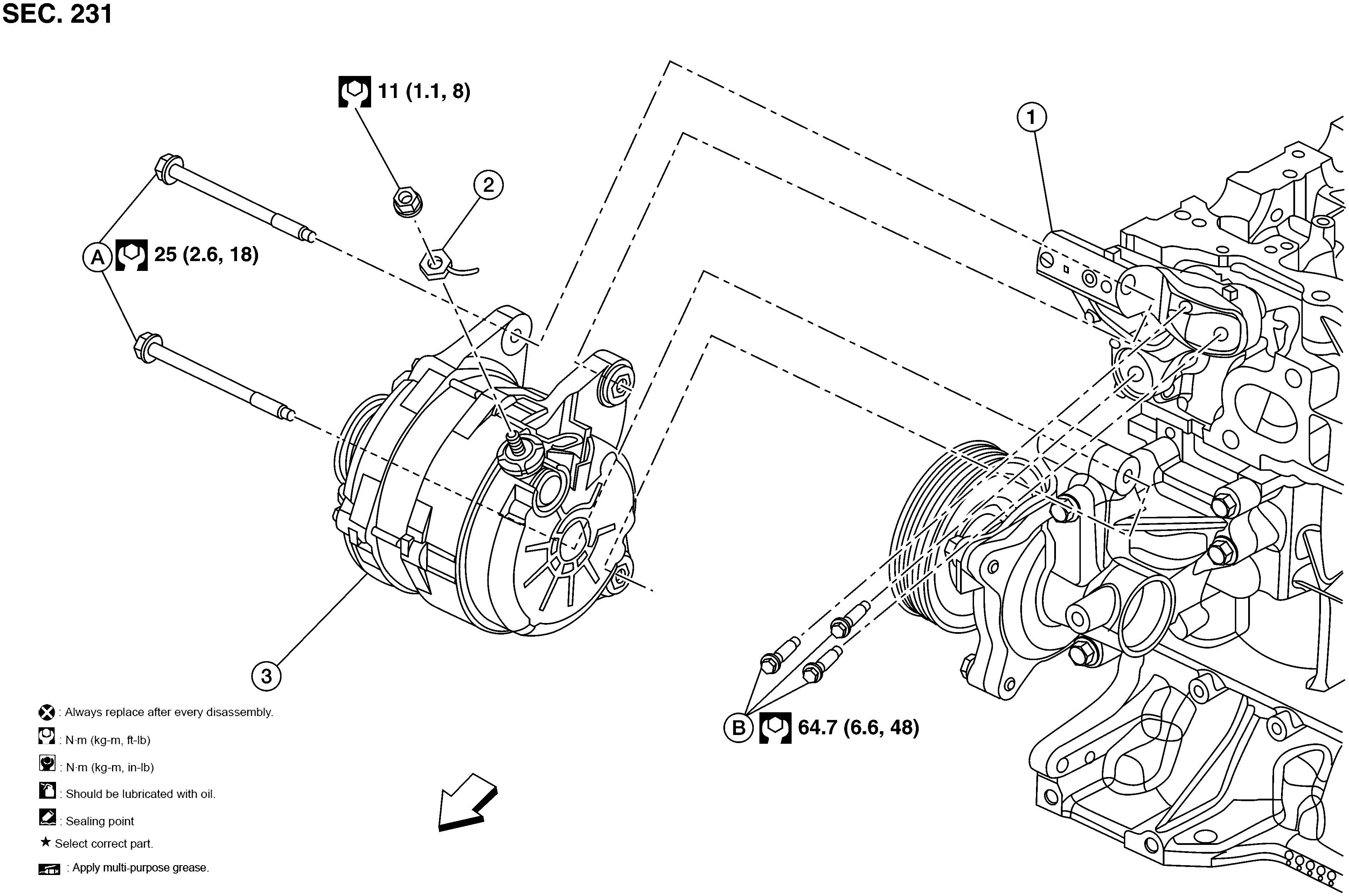

Fig 1: Generator Components With Torque Specification
GNSAWMIA1611Z-611SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Generator bracket

2.

"B" terminal harness

3.

Generator

A.

Refer to Installation .

B.

Refer to Installation .

SYMBOL

Front
