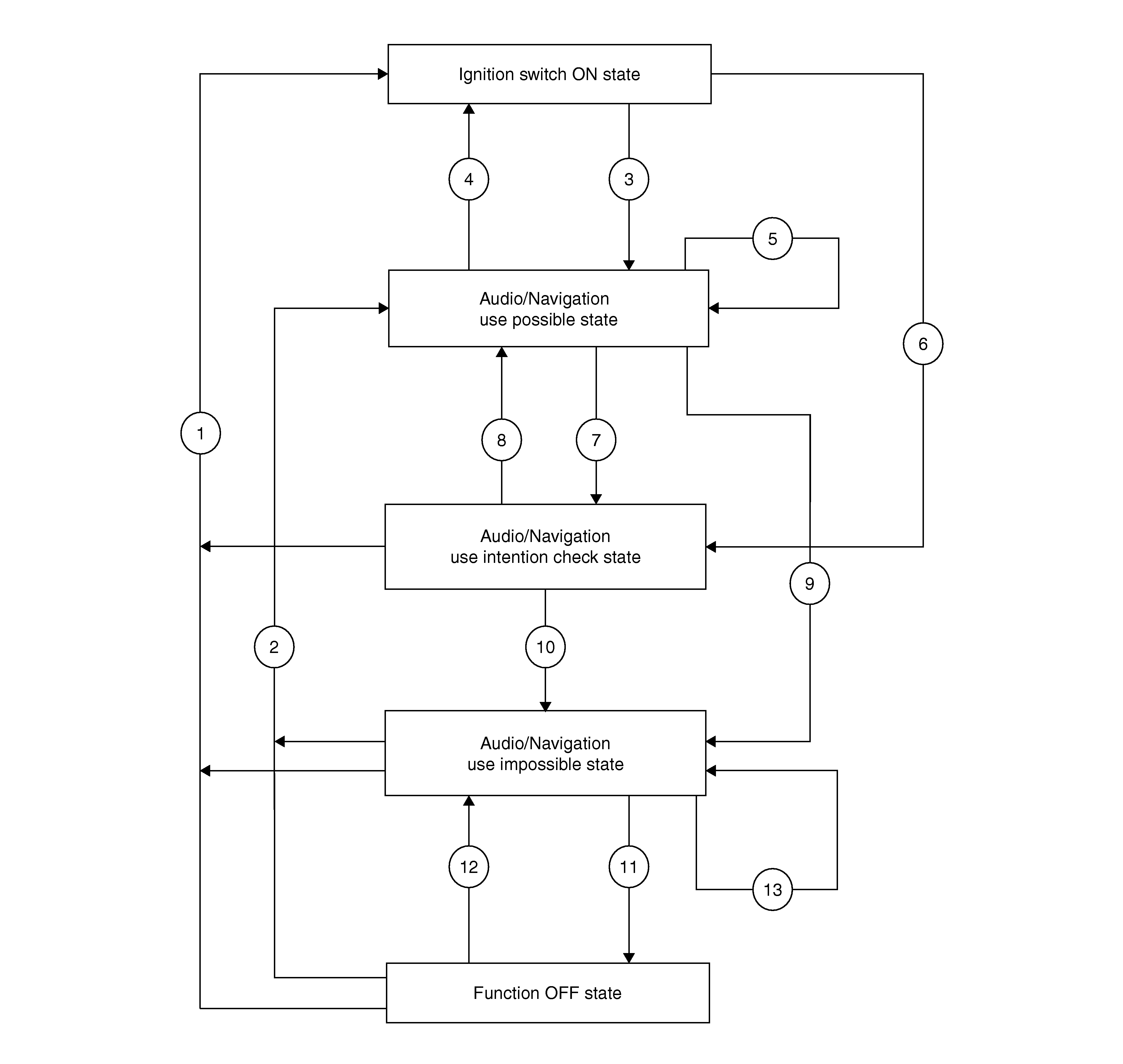

Operation Flow

Courtesy of NISSAN NORTH AMERICA, INC.

Ignition Switch On Status

In this status the ignition switch is operated and turned ON.

Audio / Navigation Available Status

In this status the audio, navigation, and each switch and unit that is activated by the accessory power source can be operated.
When 10 minutes pass after conditions are satisfied and audio or navigation are not operated, audio or navigation turn OFF.
When audio or navigation are operated within 10 minutes after conditions are satisfied, operation time is extended for 10 minutes. Audio or navigation can be operated for a maximum of 30 minutes after the status is satisfied.

Audio / navigation use intention check status

This is a status for checking the intention of using audio or navigation again after audio or navigation are stopped.

Audio / navigation unavailable status

In this status audio or navigation become unavailable, but the switches and units other than those for audio or navigation that can operate using the accessory power source are available until the accessory power source turns OFF.

OFF status

In this status the AUTO ACC function stops and power to the accessories is not supplied.

No.	Function status	Shifting condition	Accessory power source
	Shifting from "OFF status" to "Ignition switch ON status" Shifting from "Audio / navigation unavailable status" to "Ignition switch ON status" Shifting from "Audio / navigation use intention confirmation status" to "Ignition switch ON status"	Turn the ignition switch ON from OFF.	OFF -> ON
	Shifting from "OFF status" to "Audio / navigation available status" Shifting from "Audio / navigation unavailable status" to "Audio / navigation available status"	Models with Intelligent Key: Operate either the door request switch or the unlock button of the Intelligent Key to unlock the door. Models without Intelligent Key: Operate the unlock button of keyfob to unlock the door.	OFF -> ON
	Shifting from "Ignition switch ON status" to "Audio / navigation available status"	Turn the ignition switch OFF from ON while driver door is closed.	ON
	Shifting from "Audio / navigation available status" to "Ignition switch ON status"	Turn the ignition switch ON from OFF.	ON
	"Audio / navigation available status" Time extension (10 minutes)	Operate audio or navigation.	ON
	Shifting from "Ignition switch ON status" to "Audio / navigation use intention confirmation status"	Turn the ignition switch OFF from ON while driver door is open.	ON
	Shifting from "Audio / navigation available status" to "Audio / navigation use intention confirmation status"	For models with Intelligent Key, any of the following conditions is satisfied. Close all doors, and lock all doors with the Intelligent Key or door request switch. Ten minutes pass from "Audio / navigation available status." Open driver door. For models without Intelligent Key, any of the following conditions is satisfied. Close all doors, and lock all doors with the keyfob. Remove the key from the ignition key cylinder. Ten minutes pass from "Audio / navigation available status." Driver door is opened.	ON
	Shifting from "Audio / navigation use intention confirmation status" to "Audio / navigation available status"	Any of the following conditions is satisfied. Models with Intelligent Key: Operate either the door request switch or the unlock button of the Intelligent Key to unlock the door. Models without Intelligent Key: Operate the unlock button of keyfob to unlock the door. Operate audio or AV control unit power switch	ON
	Shifting from "Audio / navigation available status" to "Audio / navigation unavailable status"	Thirty minutes pass from "Audio / navigation available status."	ON
	Shifting from "Audio / navigation use intention confirmation status" to "Audio / navigation unavailable status"	Any of the following conditions is satisfied. Two minutes pass from "Audio / navigation use intention confirmation status." In "Audio / navigation use intention confirmation status," 30 minutes pass after "Audio / navigation available status" is satisfied.	ON
	Shifting from "Audio / navigation unavailable status" to "OFF status"	One minute passes from "Audio / navigation unavailable status."	ON -> OFF
	Shifting from "OFF status" to "Audio / navigation unavailable status"	Driver door is opened or closed.	OFF -> ON
	"Audio / navigation unavailable status" time extension (1 minute)	Driver door is opened or closed.	ON
