Removal and Installation: Removal

  1. Remove the steering angle sensor. Refer to Removal and Installation .
  2. Disconnect harness connector from combination switch.

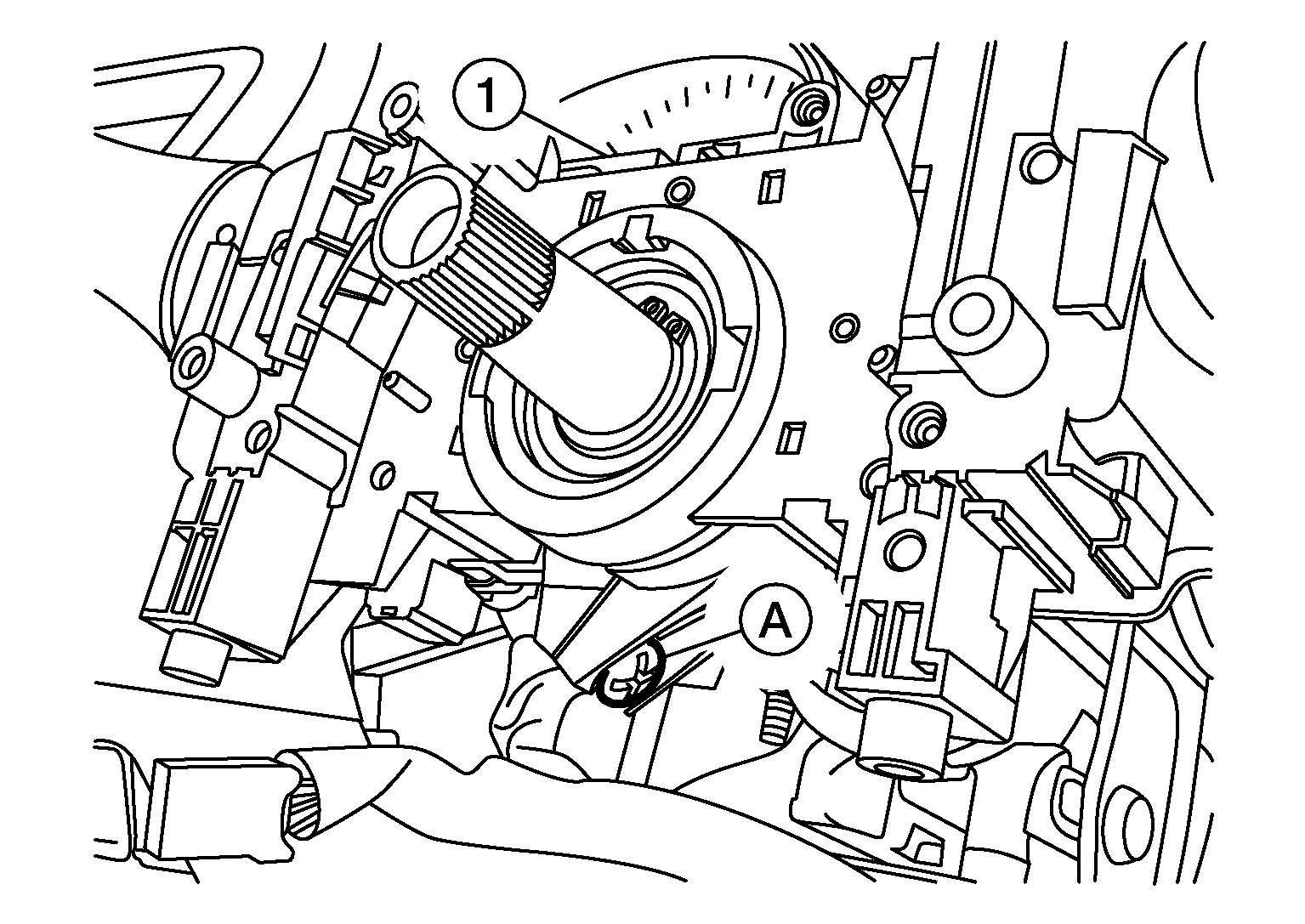

  3. Remove screw (A) and combination switch (1).
    GNSAWMIA0709Z-709Courtesy of NISSAN NORTH AMERICA, INC.
