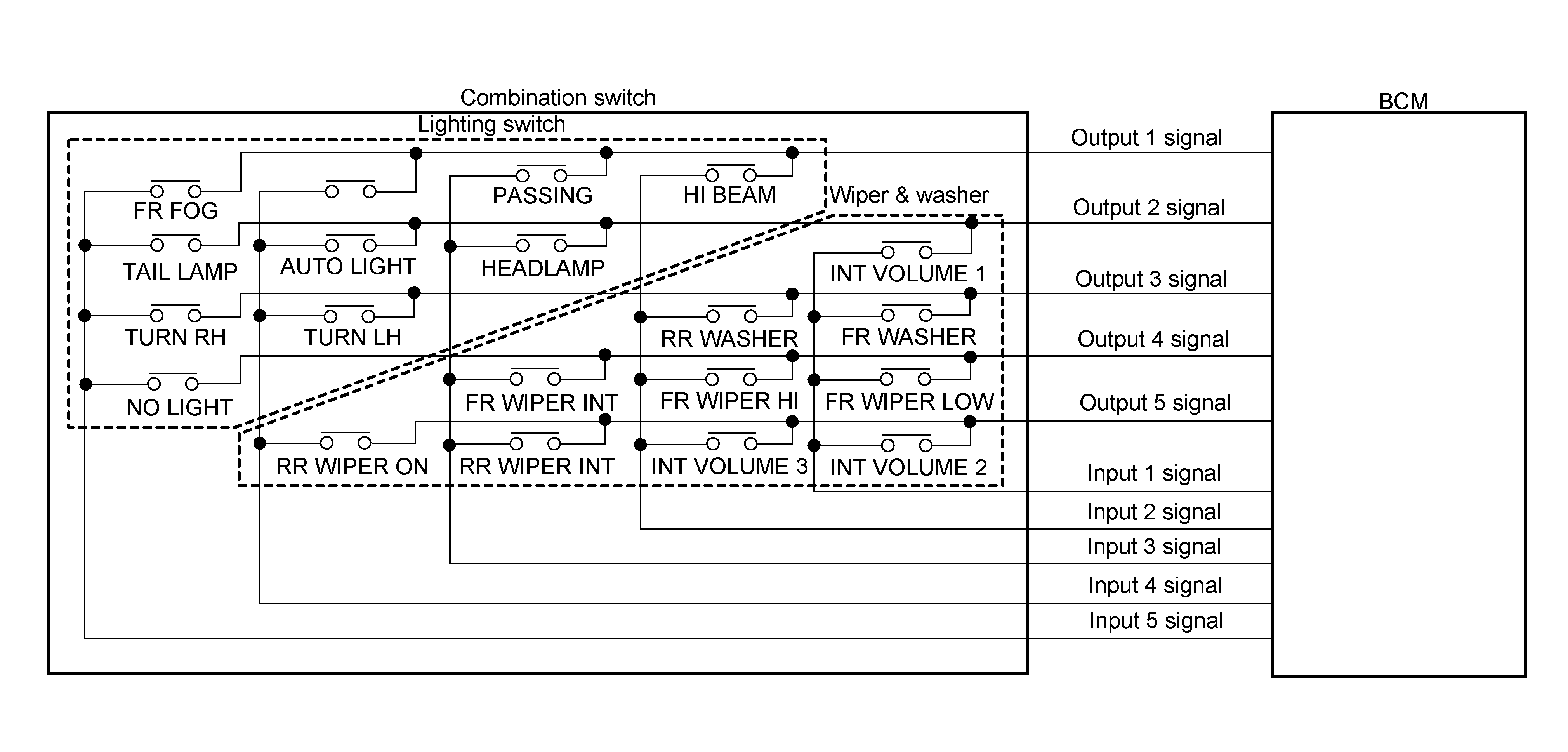

Home >> Nissan-Datsun >> 2020 >> Rogue SL, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Body Control System (With Intelligent Key System) >> System Description >> System >> Combination Switch Reading System >> System Description >> System Diagram
