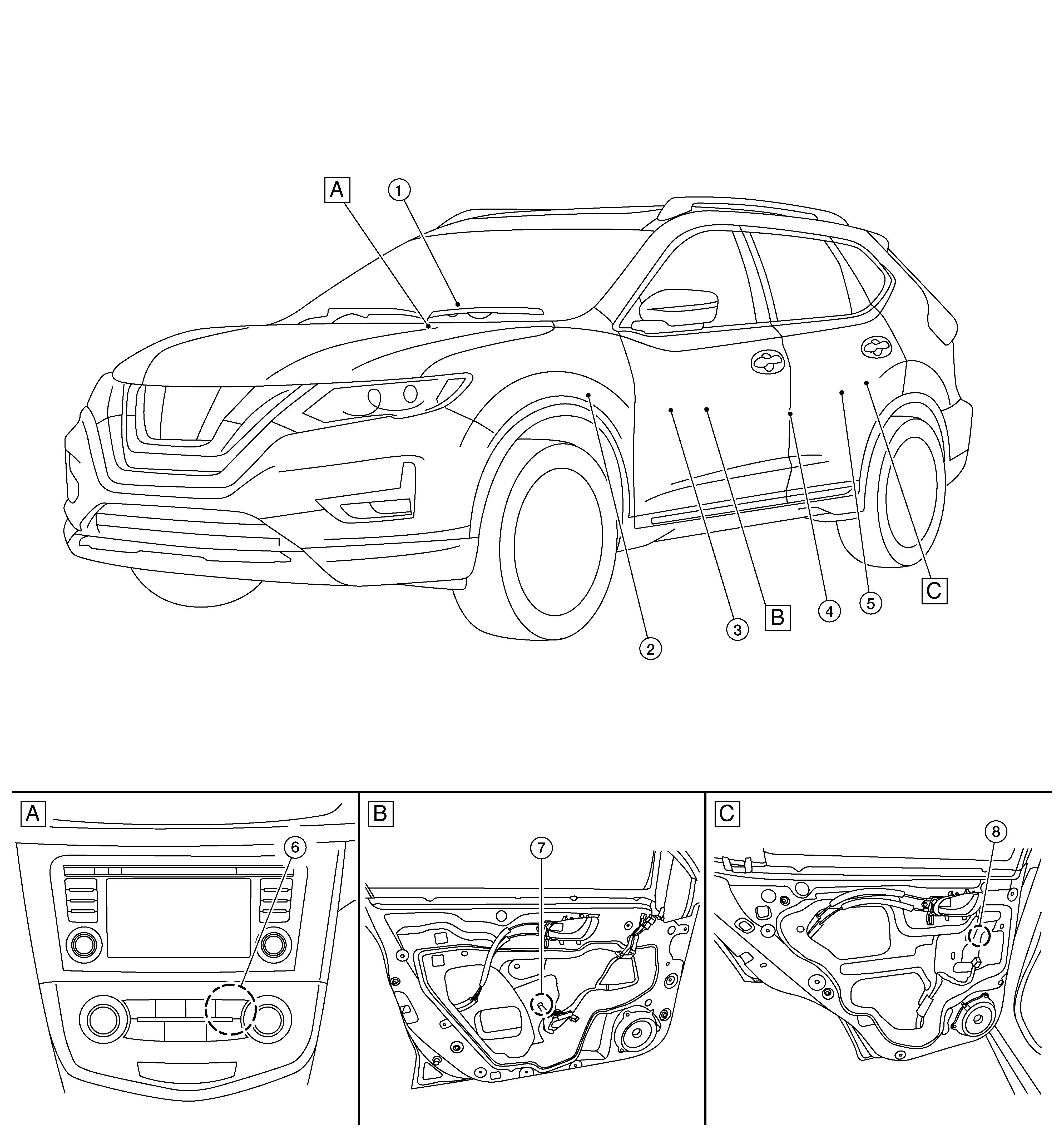

Component Parts Location

A.

A/C switch assembly

B.

View with front door finisher removed

C.

View with rear door finisher removed

No.

Component parts

Function

1.

Power window and door lock/unlock switch RH

Refer to Power Window Switch RH .

2.

BCM

• Supplies power supply to power window relay.
• Controls retained power.
• Refer to Component Parts Location (with Intelligent Key system) or Component Parts Location (without Intelligent Key system) for detailed installation location.

3.

Main power window and door lock/unlock switch

Refer to Main Power Window And Door Lock/Unlock Switch .

4.

Front door switch LH (RH similar)

• Inputs door open/close condition to BCM.
• Refer to Front Door Switch (with Intelligent Key system) or Front Door Switch (without Intelligent Key system).

5.

Rear power window switch LH (RH similar)

Refer to Rear Power Window Switch .

6.

Power window relay

Operates the power window system with the control signal from the BCM.

7.

Front power window motor LH (RH similar)

Refer to Power Window Motor .

8.

Rear power window motor LH (RH similar)

Refer to Power Window Motor .
