Removal and Installation: Removal

  1. Remove the front door pull handle bracket (RH). Refer to Exploded View .

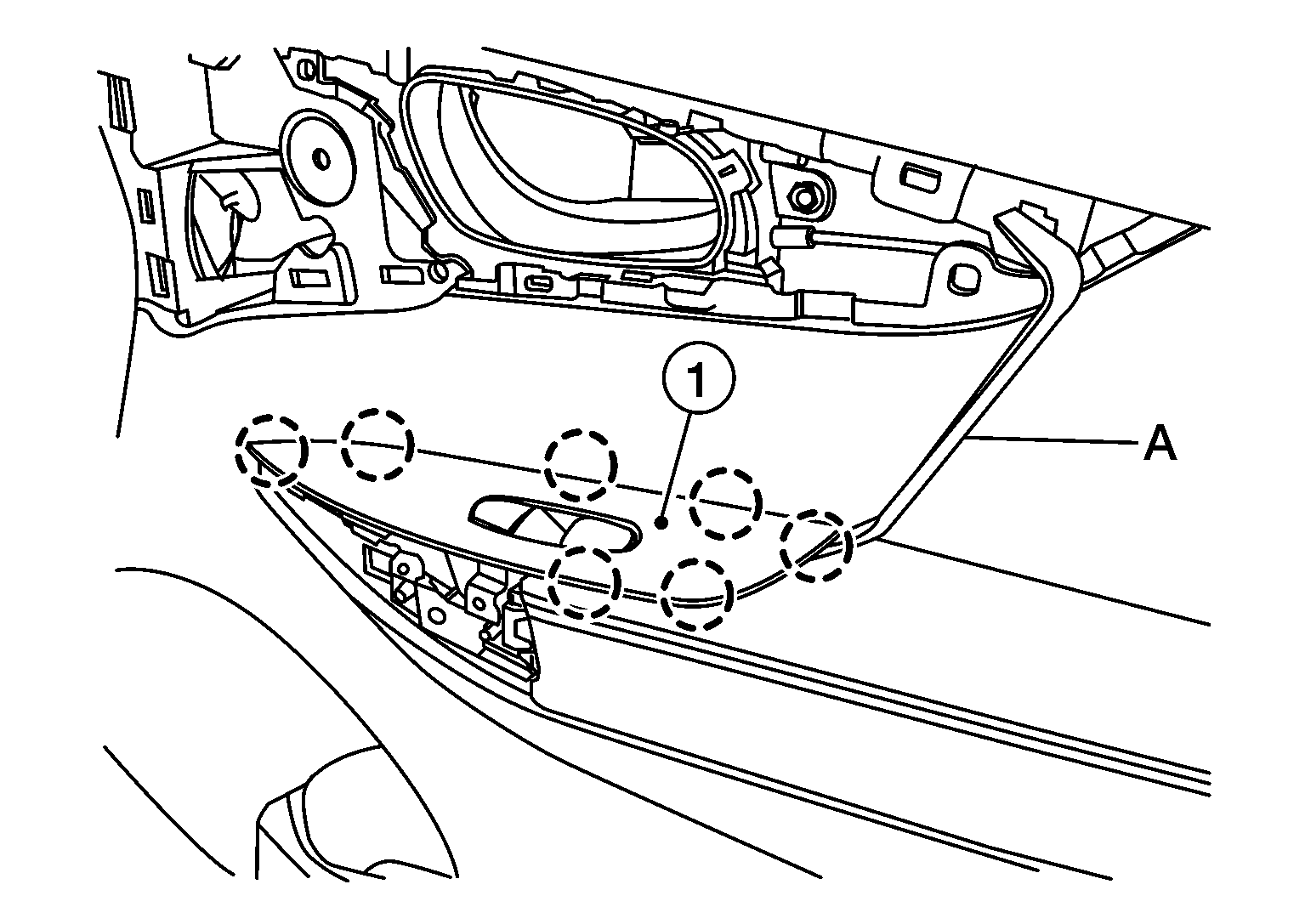

  2. Release pawls using a suitable tool (A) and remove front door power window and door lock/unlock switch finisher (RH) (1).
    GNSALKIA3472Z-472Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  3. Disconnect the harness connector from the front door power window and door lock/unlock switch (RH).

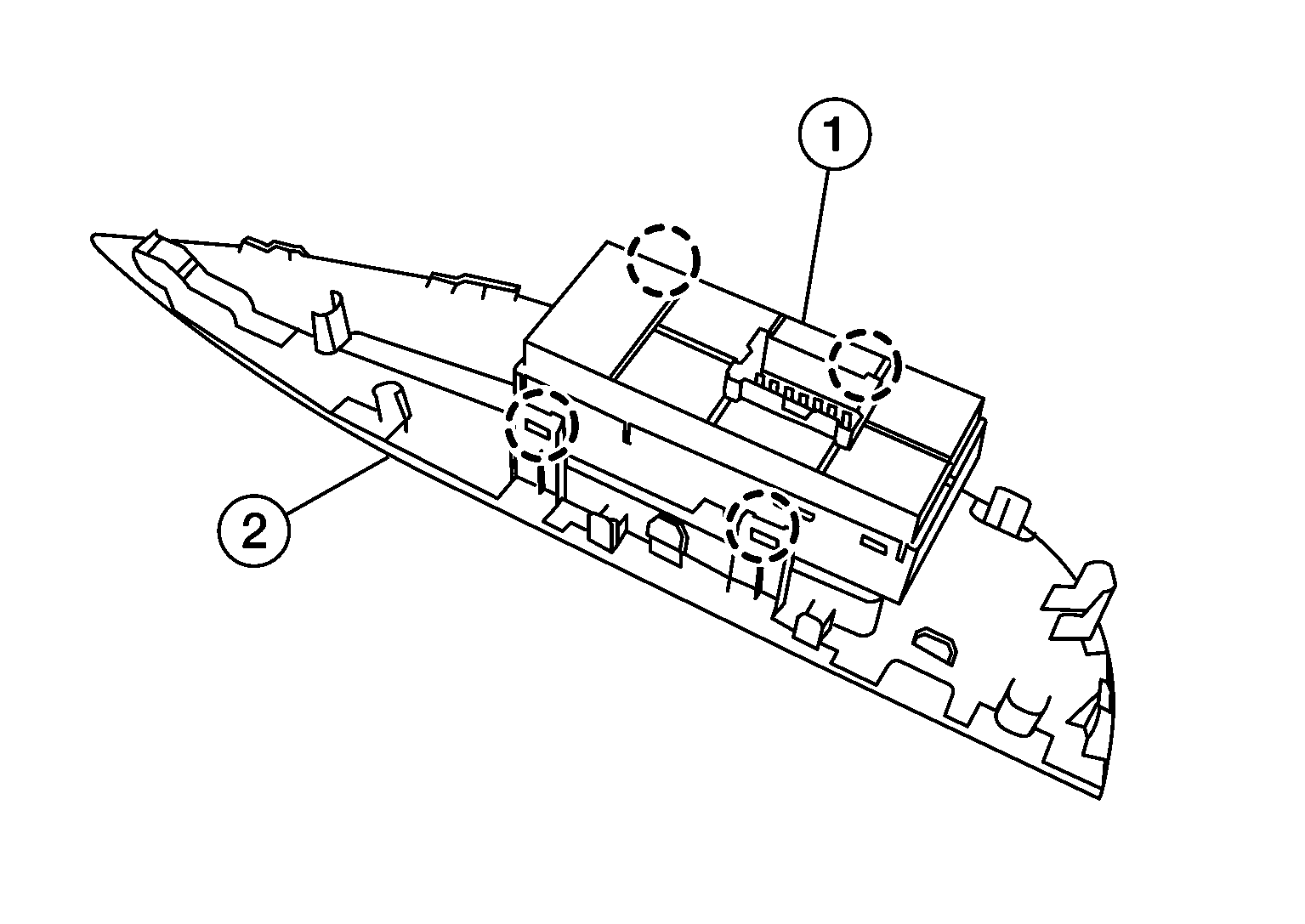

  4. Release pawls, then separate front power window and door lock/unlock switch (RH) (1) from switch finisher (2).
    GNSALKIA3473Z-473Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
