Exploded View

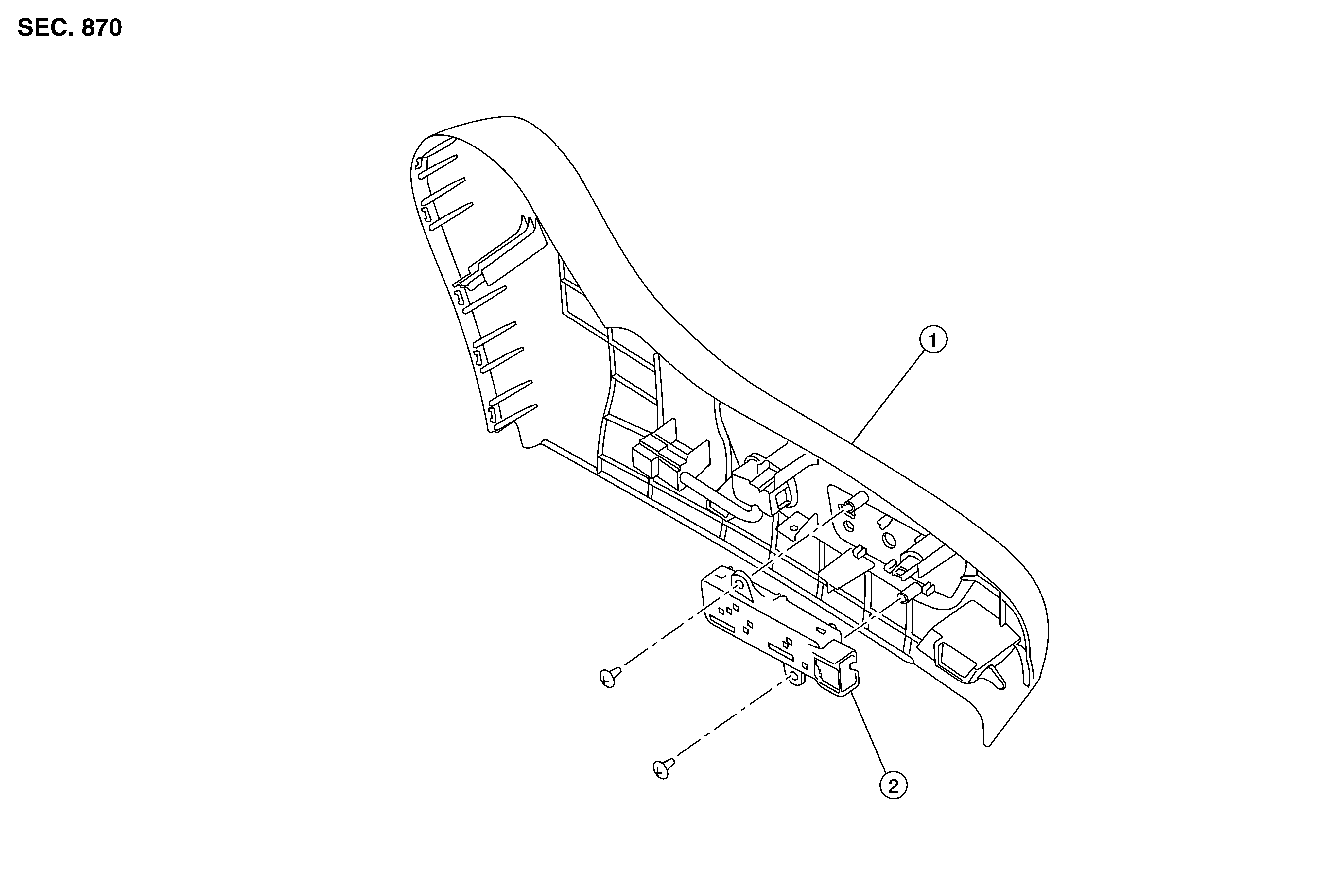

GNSALJIA1415Z-415Courtesy of NISSAN NORTH AMERICA, INC.

1.

Seat cushion outer finisher

2.

Power seat switch
