Switch Name and Function

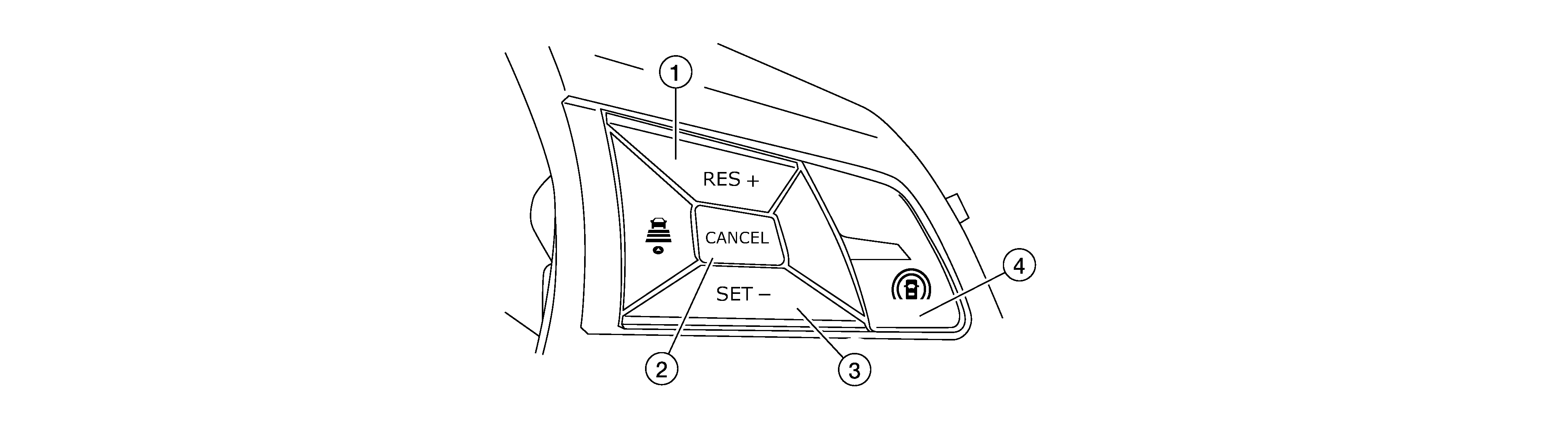

GNSALOIA0017GB-017Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

1.

RES switch

Resumes set speed or increases speed incrementally

2.

CANCEL switch

Deactivates the system without erasing the set speed

3.

SET switch

Sets desired cruise speed or reduces speed incrementally

4.

ProPILOT Assist switch

Master switch to activate the system

(Press for less than 1.5 seconds)
