Exploded View

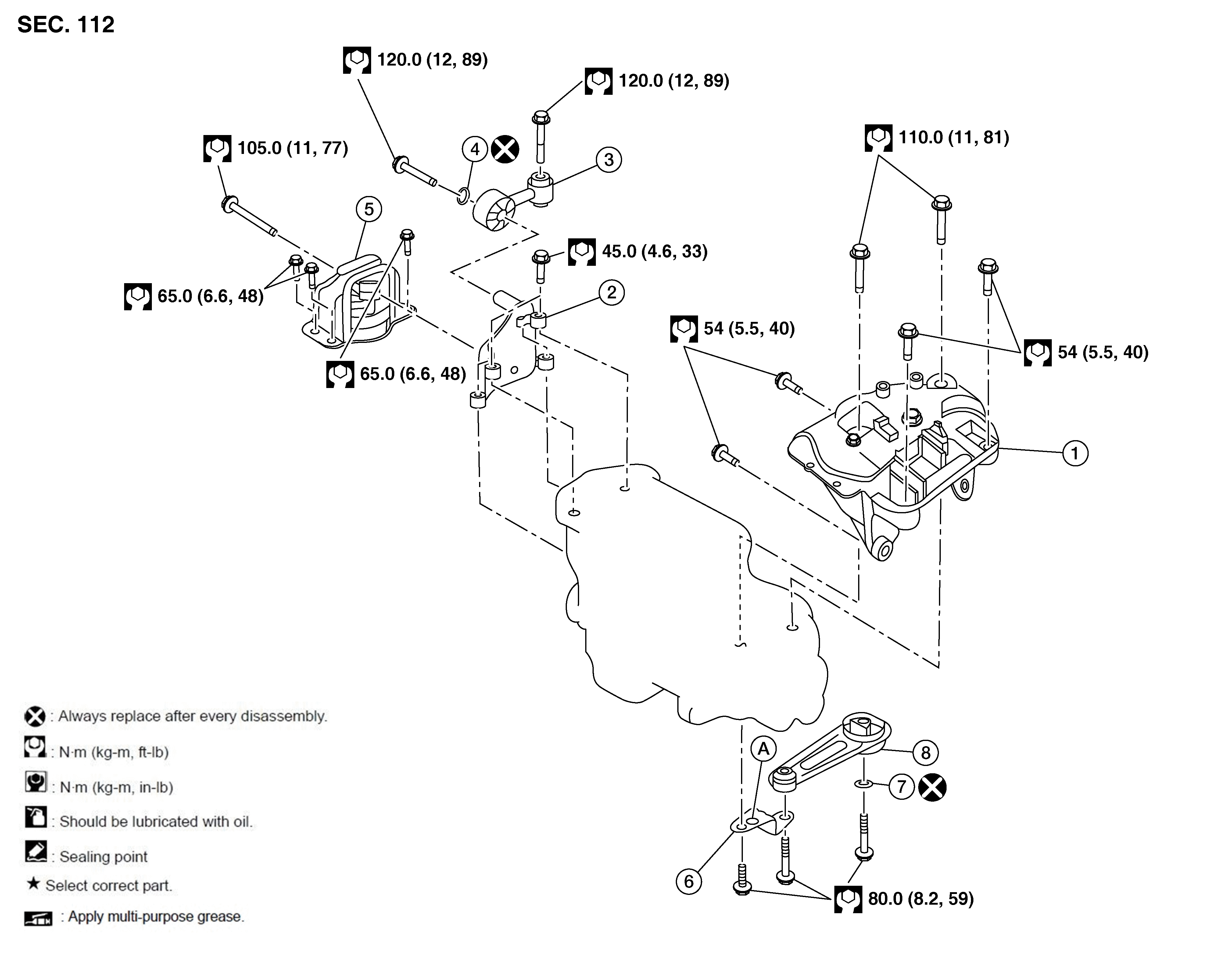

Fig 1: Engine Assembly Components With Torque Specification
GNSAWBIA0387Z-387Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine mounting insulator (LH)

2.

Engine mounting bracket (RH)

3.

Torque rod (RH)

4.

Washer

5.

Engine mounting insulator (RH)

6.

Rear engine mounting bracket

7.

Washer

8.

Rear torque rod

A.

Front mark
