Exploded View
Exploded View

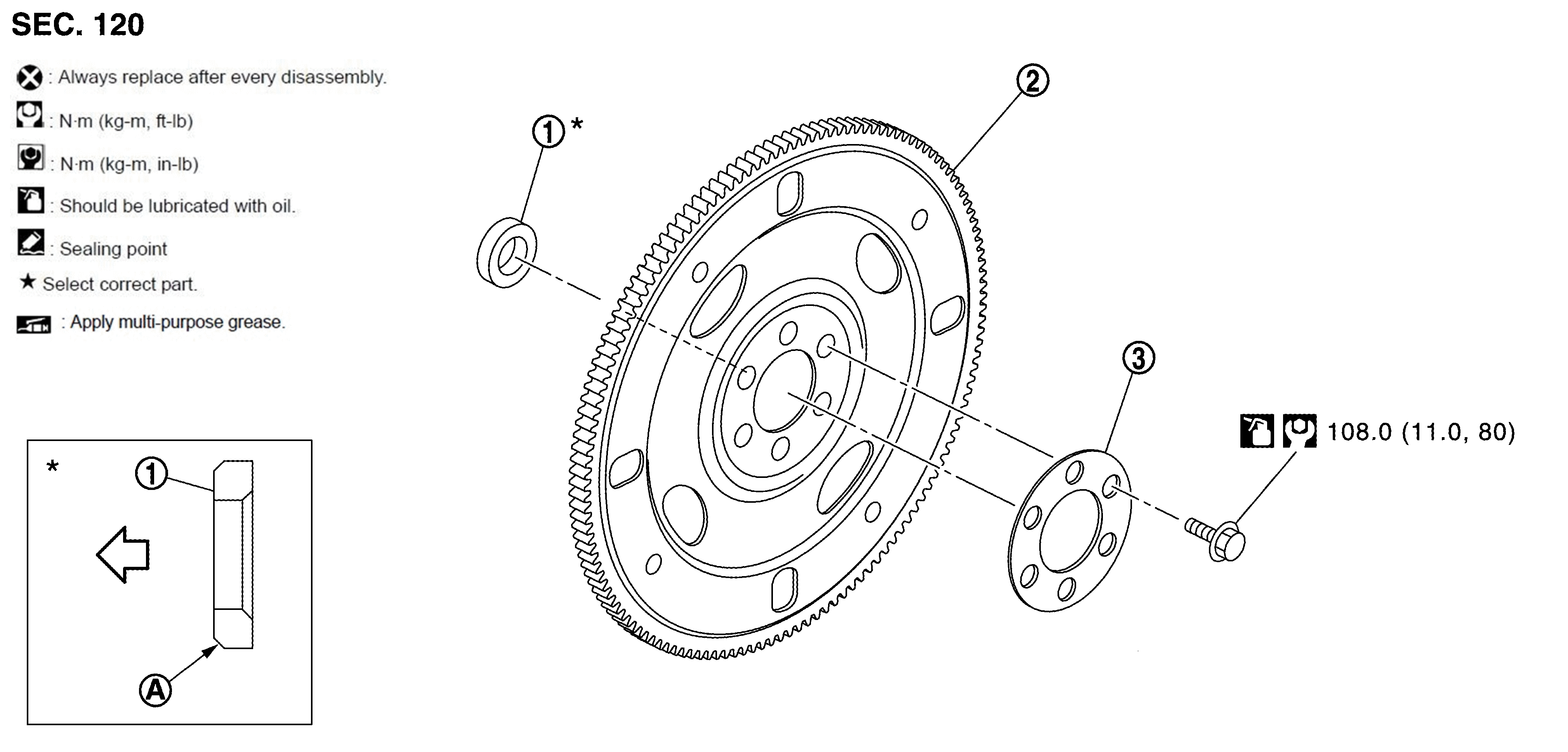

Fig 1: Drive Plate Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Pilot converter
2.
Drive plate
3.
Reinforcement plate
A.
Chamfered
Engine front
Courtesy of NISSAN NORTH AMERICA, INC.
