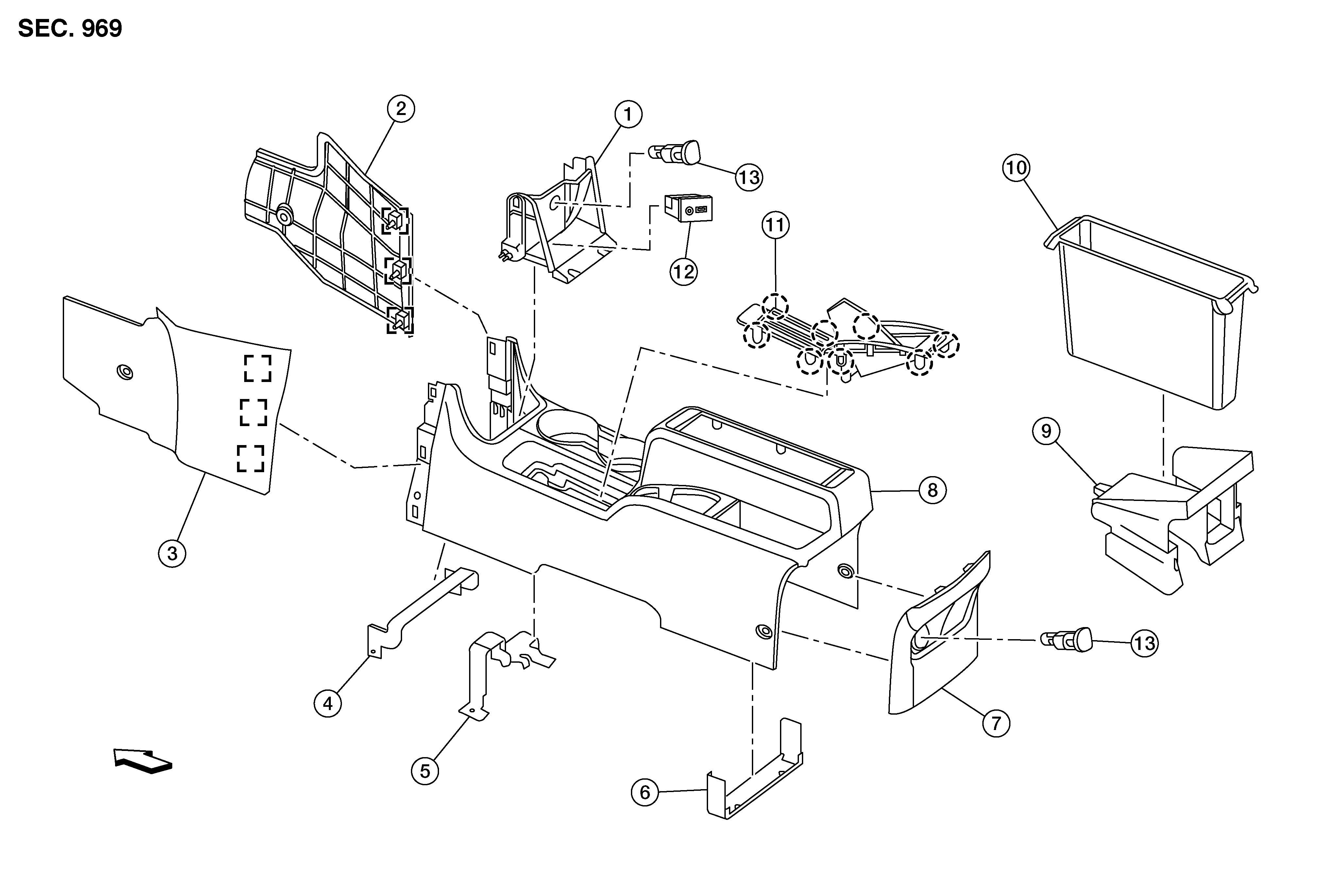

Exploded View
|
1. |
Center console tray |
2. |
Center console side finisher (RH) |
3. |
Center console side finisher (LH) |
|
4. |
Center console front bracket |
5. |
Center console center bracket |
6. |
Center console rear bracket |
|
7. |
Center console rear finisher |
8. |
Center console assembly |
9. |
Center console bin brace |
|
10. |
Center console bin |
11. |
Parking brake finisher |
12. |
Front auxiliary input jacks |
|
13. |
Power socket (if equipped) |
|
Front |
