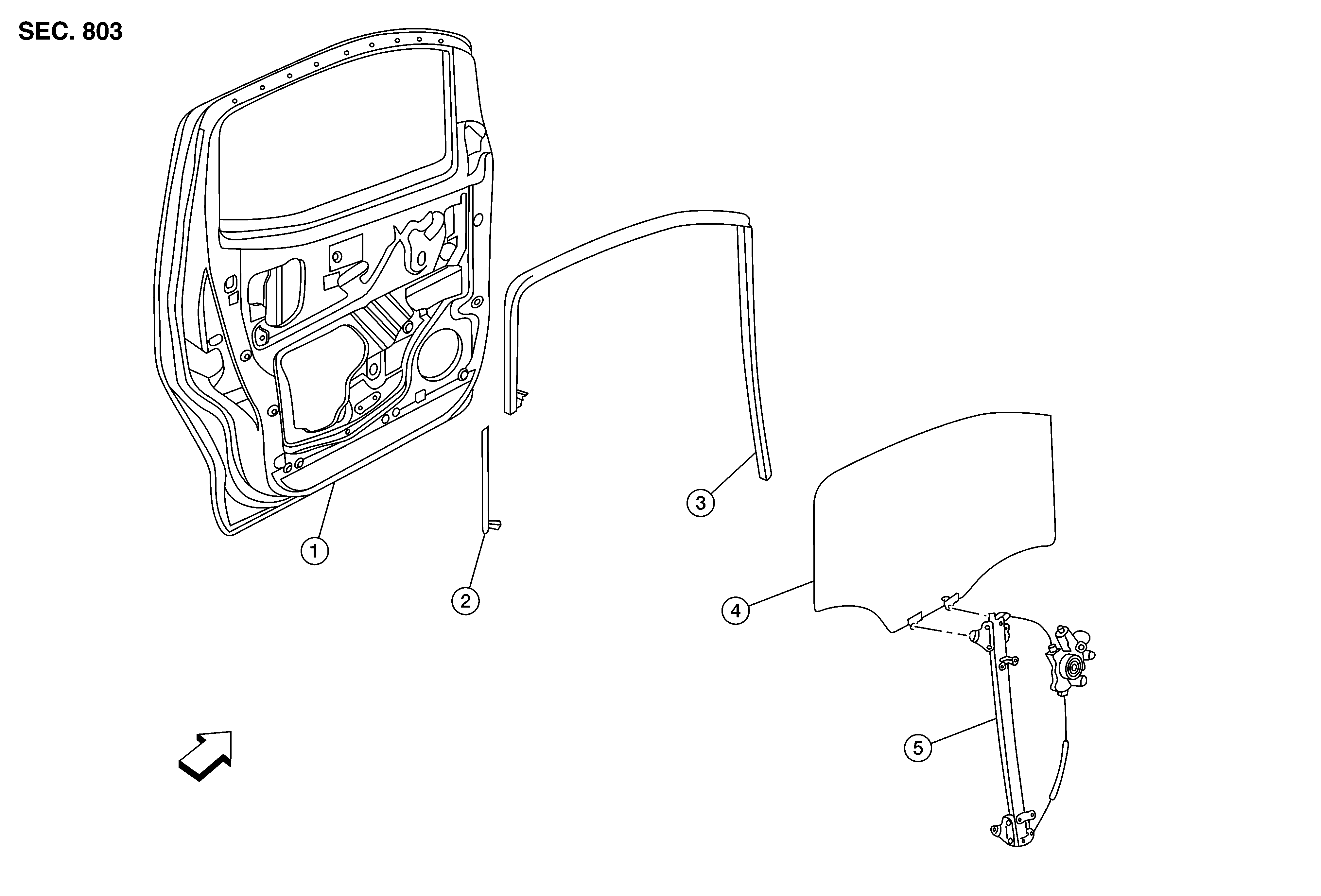

Exploded View

GNSAWKIA2427Z-427Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front door panel

2.

Front door glass rear channel

3.

Front door glass rubber run

4.

Front door glass

5.

Front door glass regulator assembly

SYMBOL

Front
