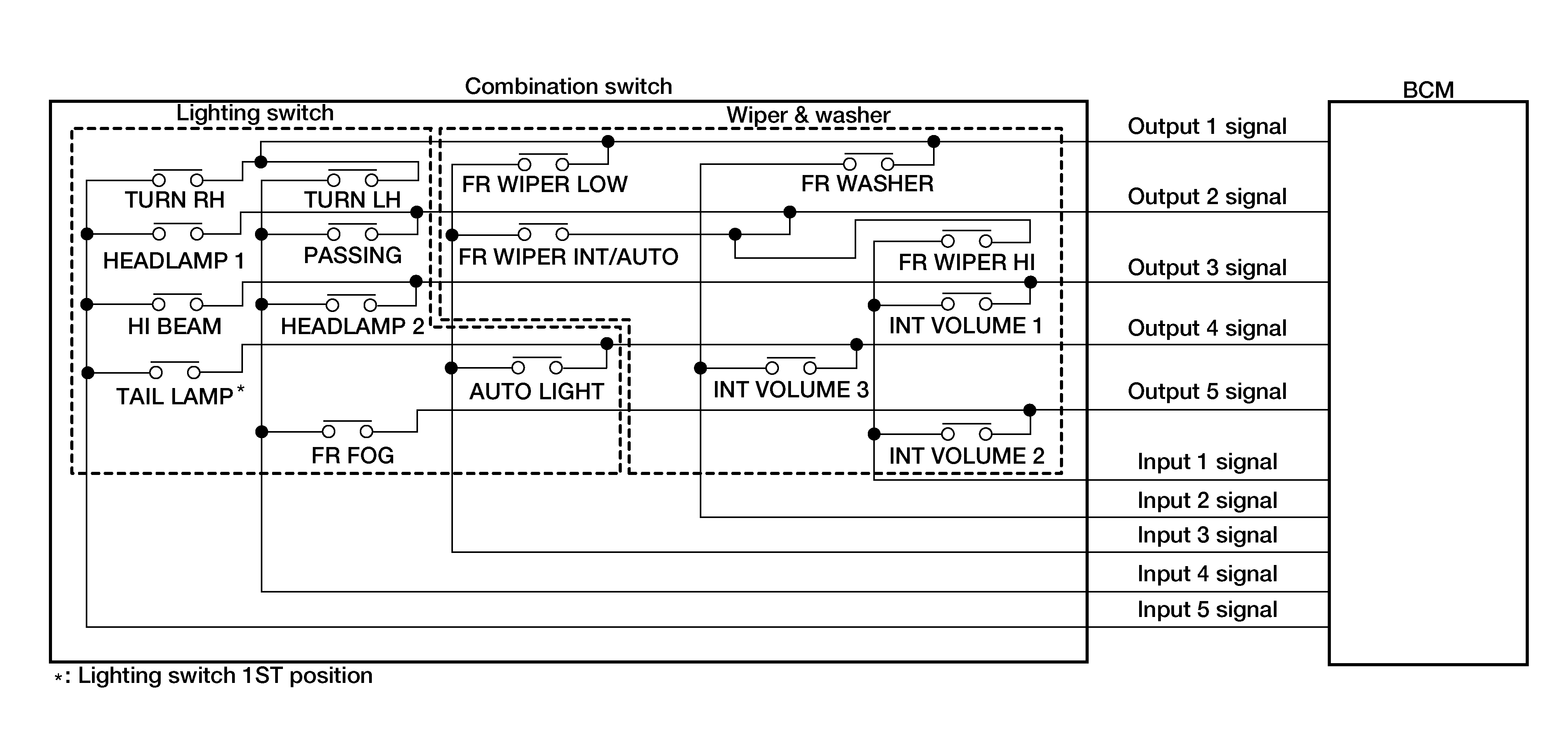

System Diagram

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWMIA1857GB-857Courtesy of NISSAN NORTH AMERICA, INC.
