Component Parts Location

WARNING: This page is about a different car, the 2019 Nissan Titan XD and 2019 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

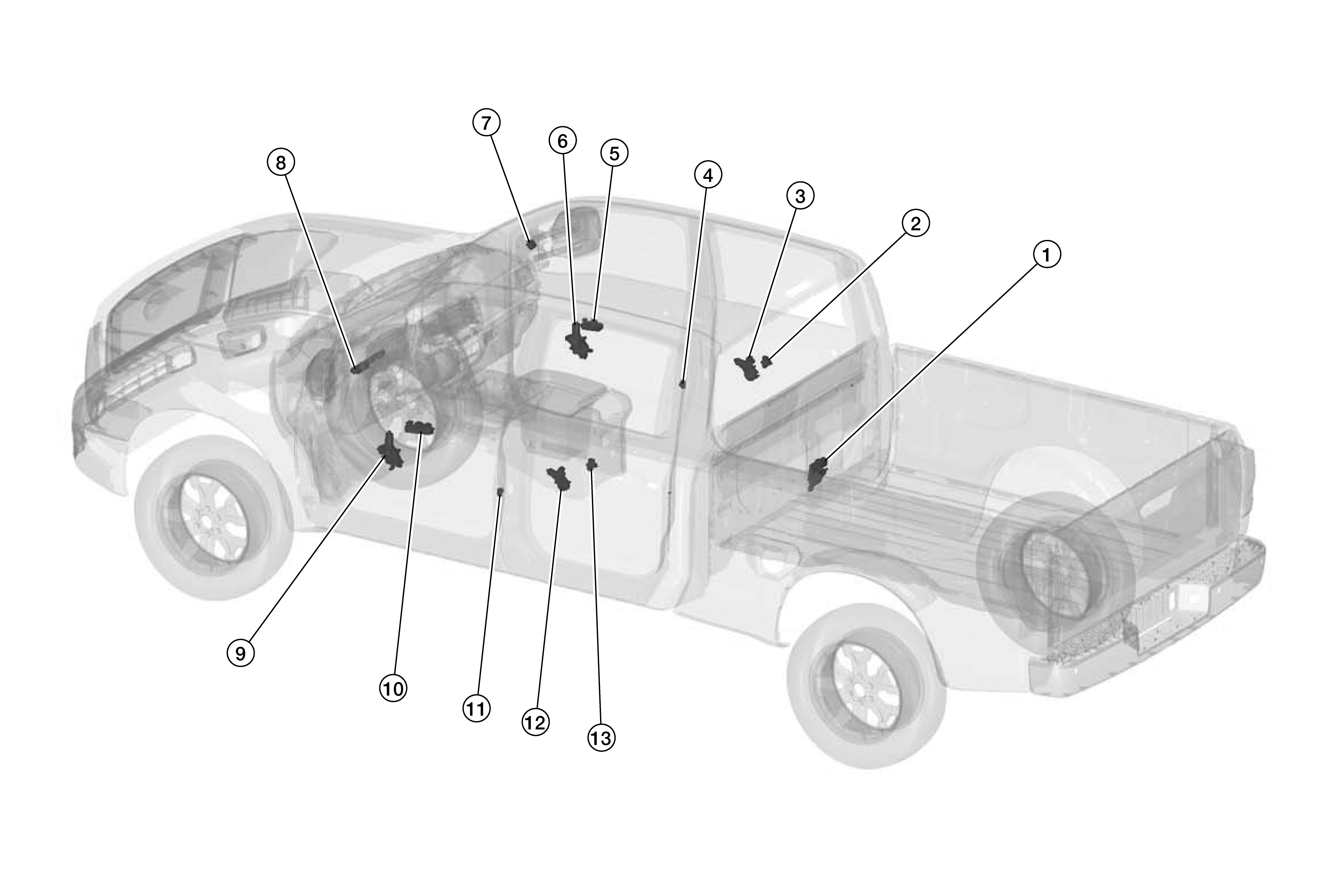

GNSALKIA0354Z-354Courtesy of NISSAN NORTH AMERICA, INC.

No.

Part

Function

1.

Rear power slide glass motor (if equipped)

Refer to Rear Power Slide Glass Motor .

2.

Rear power window switch RH (if equipped)

Refer to Rear Power Window Switch .

3.

Rear power window motor RH (if equipped)

Refer to Power Window Motor .

4.

Front door switch RH

  • Detects door open/close condition and transmits to BCM.
  • Refer to Front Door Switch .

5.

Power window and door lock/unlock switch RH

Refer to Power Window and Door Lock/Unlock Switch RH .

6.

Front power window motor RH

Refer to Power Window Motor .

7.

Rear power slide glass switch (if equipped)

Refer to Rear Power Slide Glass Switch .

8.

BCM

  • Supplies power to the window switches.
  • Controls retained power.
  • Refer to Component Parts Location for detailed installation location.

9.

Front power window motor LH

Refer to Power Window Motor .

10.

Main power window and door lock/unlock switch

Refer to Main Power Window and Door Lock/Unlock Switch- With Crew Cab , or Main Power Window and Door Lock/Unlock Switch- Except Crew Cab .

11.

Front door switch LH

  • Detects door open/close condition and transmits to BCM.
  • Refer to Front Door Switch .

12.

Rear power window motor LH (if equipped)

Refer to Power Window Motor .

13.

Rear power window switch LH (if equipped)

Refer to Rear Power Window Switch .
